| Brand | SNR | ||

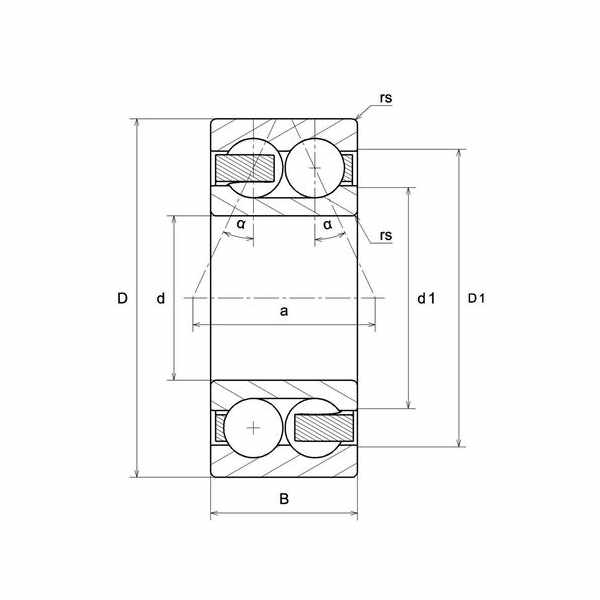

| a - Charge load application point | 55,1 mm | ||
| rs - Min fillet radius | 1,5 mm | ||
| C - Dynamic load | 68 kN | ||
| Cu - Fatigue limit load | 3,7 kN | ||
| Nref - Reference thermal speed | 5200 tr/min | ||
| Tmin - Min operating temperature | -20 °C | ||
| BPFO - Characteristic outer ring frequency | 4,196 Hz | ||
| FTF - Characteristic cage frequency | 0,42 Hz | ||

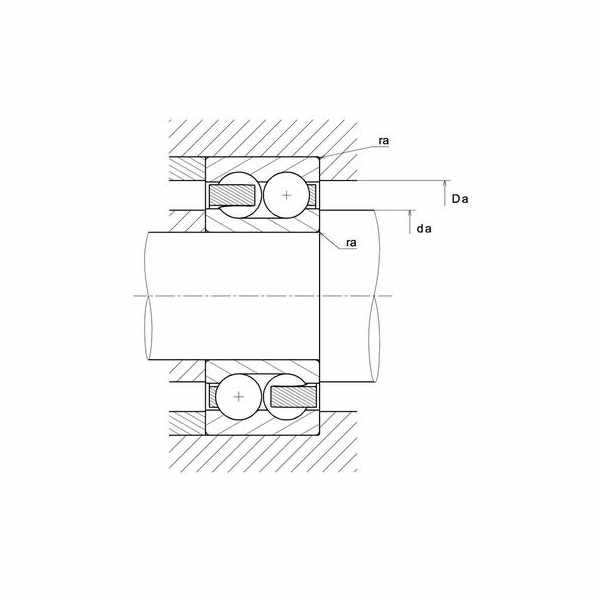

| da min - Min shoulder diameter IR | 68 mm | ||
| ra max - Max shaft & housing fillet radius | 1,5 mm |
| D1 - Inner diameter outer ring | 94,4 mm | ||
| α - Contact angle | 25 ° | ||
| Radial clearance class | C3 | ||
| C0 - Static load | 61,5 kN | ||
| f0 - Coefficient | 14.90 | ||
| Nlim - Mechanical Limit Speed | 5800 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 5,804 Hz | ||
| BSF - Characteristic rolling element frequency | 5,49 Hz | ||
| Da max - Max shoulder diameter OR | 102 mm |
