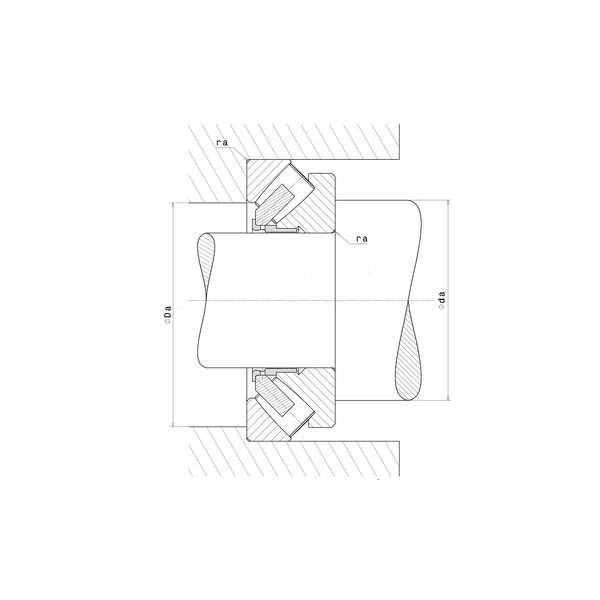

| da min - Min shoulder diameter IR | 450 mm | ||
| rs - Min fillet radius | 5 mm | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Oil lubrication limit speed | 590 tr/min | ||
| C0a - Static axial load rating | 11100 kN | ||

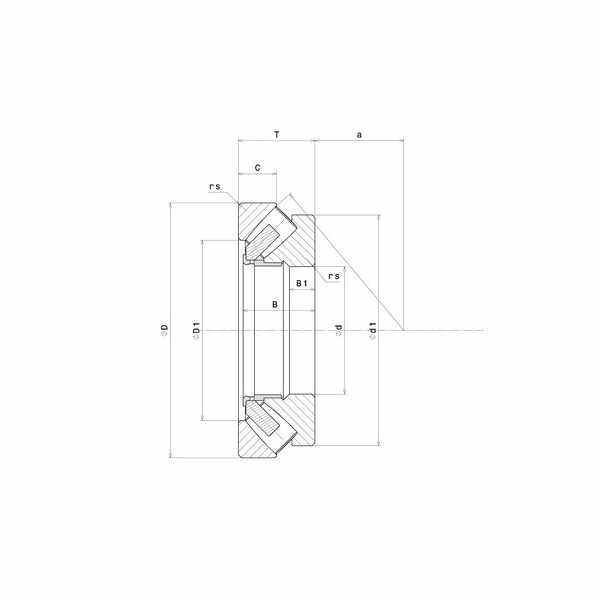

| C - Housing washer width | 59 mm | ||
| D - Housing washer outer diameter | 560 mm |
| Da max - Max shoulder diameter OR | 495 mm | ||
| ras max - Max shaft & housing fillet radius | 4 mm | ||
| Tmin - Min operating temperature | -40 °C | ||
| Cua - Limit axial load rating | 915 kN | ||
| Ca - Dynamic axial load rating | 3000 kN | ||
| D1 - Inner diameter housing washer | 448 mm | ||
| Brand | NTN |
