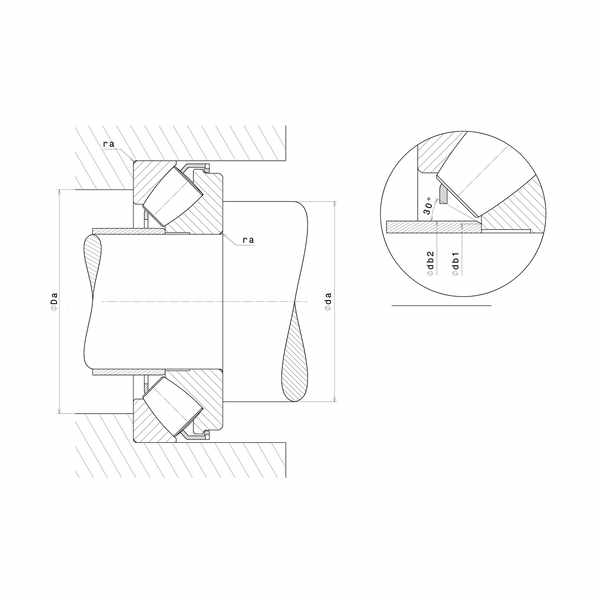

| db2 - Max spacer diameter | 128 mm | ||
| da min - Min shoulder diameter IR | 160 mm | ||
| rs - Min fillet radius | 2,1 mm | ||
| BSF - Characteristic rolling element frequency | 7,19 Hz | ||
| BPFI - Characteristic inner ring frequency | 10,88 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 2900 tr/min | ||
| Nlim - Oil lubrication limit speed | 1700 tr/min | ||
| C0a - Static axial load rating | 2130 kN | ||
| Cage Material | Sheet metal | ||

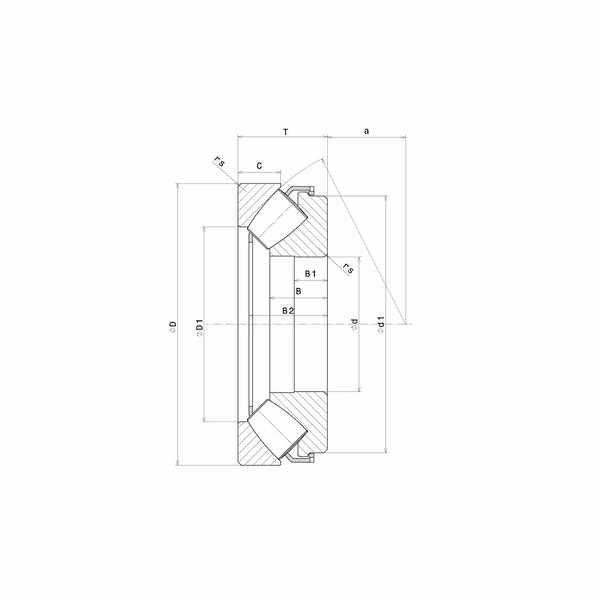

| B2 - Distance large face of shaft washer / metal cage | 47 mm | ||
| C - Housing washer width | 27 mm | ||
| D - Housing washer outer diameter | 210 mm |
| db1 - Maximum diameter of the shaft washer shoulder | 128 mm | ||
| Da max - Max shoulder diameter OR | 181 mm | ||
| ras max - Max shaft & housing fillet radius | 2 mm | ||
| FTF - Characteristic cage frequency | 0,456 Hz | ||
| BPFO - Characteristic outer ring frequency | 9,12 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 1700 tr/min | ||
| Cua - Limit axial load rating | 223 kN | ||
| Ca - Dynamic axial load rating | 651 kN | ||
| a - Charge load application point | 70 mm | ||
| B - Shaft washer width | 34 mm | ||
| D1 - Inner diameter housing washer | 155,5 mm | ||
| Brand | SNR |
