Name: 284397 EATON
Brand: EATON
SKU: 801923-en-gbp
Price: 60.08 GBP
Availability: InStock

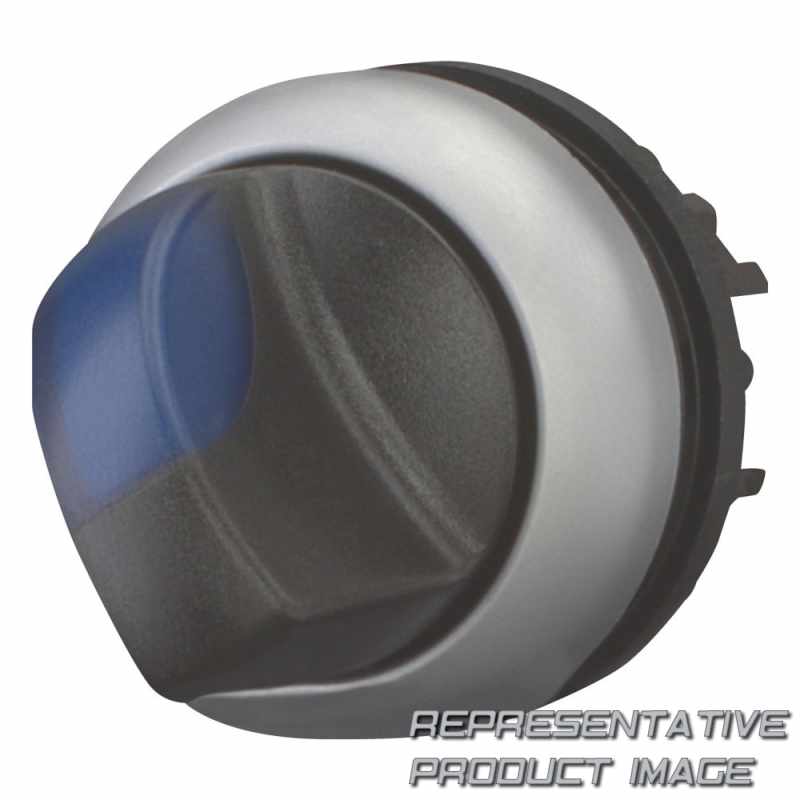

m22-wlkv-b

£60.08

12 pcs. with 1 to 3 days delivery to United States

Specifications

Size	front diameter: 29.7 mm
Mounting Position	as required

Width	30 mm
Weight	14g

Technical data

Shock resistance		30 g, mechanical, according to iec/en 60068-2-27, sinusoidal shock 11 ms mechanical, according to iec/en 60068-2-27
10.2.4 resistance to ultra-violet (uv) radiation		please enquire
Type		illuminated selector switch actuator
Size		front diameter: 29.7 mm
10.10 temperature rise		not applicable.
opening height		0 mm
Degree of protection		nema 4x, 13
number of switch positions		2
bezel material		plastic
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
width opening		0 mm
suitable for		illumination
equipment heat dissipation, current-dependent pvid		0 w
operating frequency		2000 operations/h
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
actuator function		switching function latching maintained
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min		-25 °c
static heat dissipation, non-current-dependent pvs		0 w
indicator color		blue
climatic proofing		damp heat, cyclic, to iec 60068-2-30 damp heat, constant, to iec 60068-2-78
ambient operating temperature - max		70 °c
10.8 connections for external conductors		is the panel builder's responsibility.
degree of protection (front side)		ip66
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
opening diameter		22.5 mm
rated operational current for specified heat dissipation (in)		0 a
compliances		ce marked
product width		30 mm
product length/depth		46 mm

10.2.7 inscriptions		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
lens type		round
functions		stay-put/spring-return function, can be changed with coding parts m22-xc-y
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
actuator color		black
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
switching angle		60 °
lifespan, mechanical		100,000 operations
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
accessories		thumb-grip
heat dissipation capacity pdiss		0 w
product category		rmq-titan
heat dissipation per pole, current-dependent pvid		0 w
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
Mounting position		as required
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
connection to smartwire-dt		yes with swd-rmq connections
Color		blue
bezel color		titanium
actuator type		toggle
force for positive opening - min		0 n
fitted with:		front ring
Design		with thumb-grip
operating torque		.3 nm
10.4 clearances and creepage distances		meets the product standard's requirements.
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
certifications		csa std. c22.2 no. 94-91 csa std. c22.2 no. 14-05 iec 60947-5 ul 508 en 60947-5 vde iec/en 60947-5 csa-c22.2 no. 94-91 iec/en 60947 ul file no.: e29184 csa class no.: 3211-03 vde 0660 csa csa-c22.2 no. 14-05 ul ul category control no.: nkcr ce csa file no.: 012528
Product weight		.014 kg
product height		30 mm
ean		4015082843977
