| compressed air connection | g 1/8 | ||
| axis geometry | single | ||
| Type | single vane | ||
| theoretical torque at | 6 bar | ||
| maximum operating frequency | 90 | ||
| max. permissible axial bearing load | 30 n | ||
| theoretical torque | 4 nm | ||
| repetitive precision | 4 ° | ||
| angle of rotation max. | 270 ° | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| oil content of compressed air min. | 0 mg/m³ |

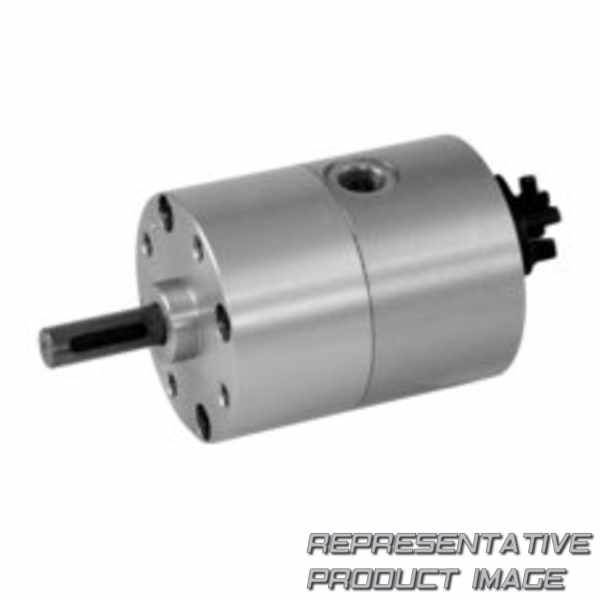

| rotary compact module version | rotary wing drive, double-acting | ||
| frame size | rak - 5s | ||
| axis diameter | 10 mm | ||
| min. swivel times | 0.2 s | ||
| interior volume | 43 cm³ | ||
| max. permissible radial bearing load | 400 n | ||
| permissible kinetic energy | 0.007 j | ||
| angle of rotation min. | 30 ° | ||
| working pressure min. | 2 bar | ||
| min. ambient temperature | -5 °c | ||
| min. medium temperature | -5 °c | ||
| Medium | compressed air |
