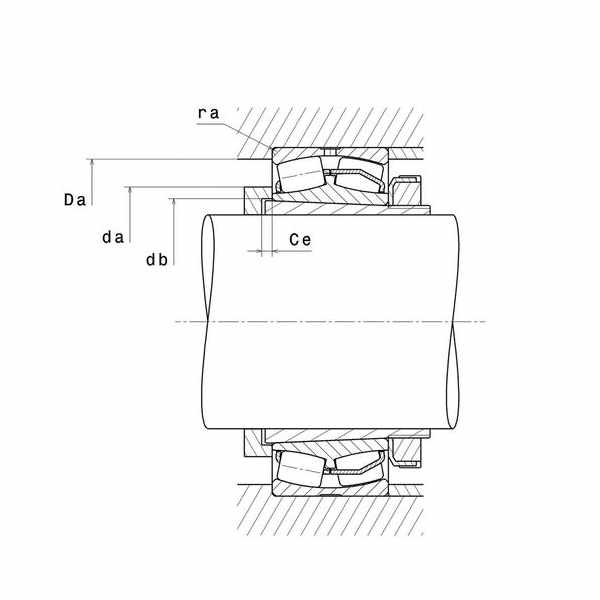

| ra max - Max shaft & housing fillet radius | 2 mm | ||
| da min - Min shoulder diameter IR | 162 mm | ||
| BSF - Characteristic rolling element frequency | 7,373 Hz | ||
| BPFI - Characteristic inner ring frequency | 11,296 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 2100 tr/min | ||
| Y2 - Upper axial load coefficient | 2.76 | ||
| Y0 - Static axial load coefficient | 1.81 | ||
| Cu - Fatigue limit load | 149 kN | ||
| C - Dynamic load | 1140 kN | ||
| Associated sleeve reference | AH24130 | ||

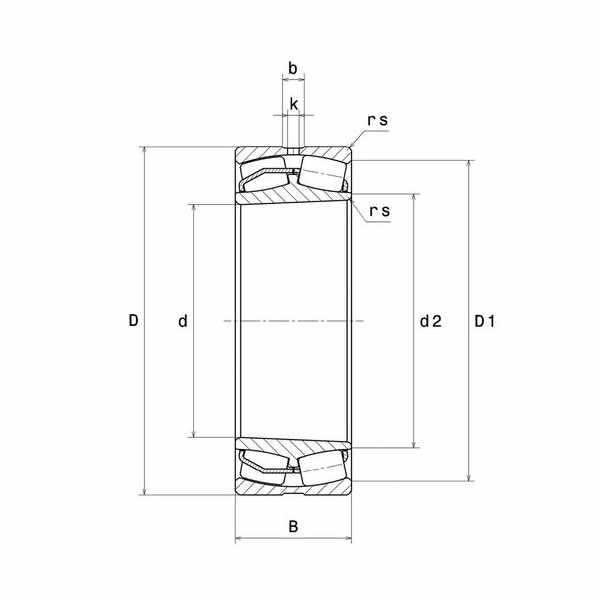

| b - Groove width | 13,15 mm | ||
| rs - Min fillet radius | 2,1 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 238 mm | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| FTF - Characteristic cage frequency | 0,435 Hz | ||
| BPFO - Characteristic outer ring frequency | 8,704 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 1500 tr/min | ||
| Y1 - Lower axial load coefficient | 1.85 | ||
| e - Coefficient | 0.36 | ||
| C0 - Static load | 1510 kN | ||
| Radial clearance class | CN | ||
| k - Hole diameter | 6 mm | ||
| Number of lubrication holes | 3 or 4 | ||
| D1 - Inner diameter outer ring | 216,4 mm |
