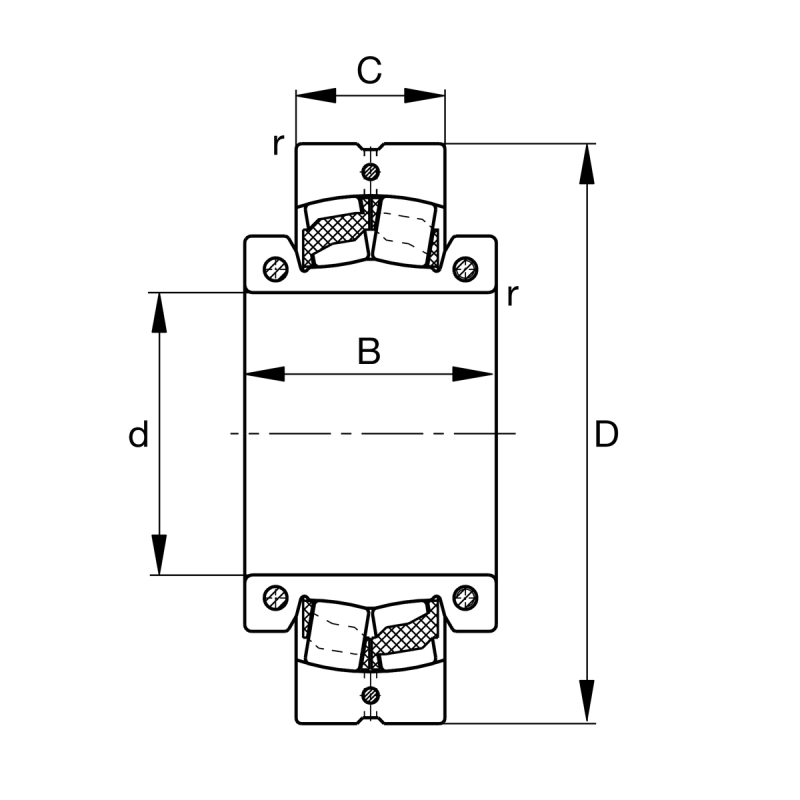

| Width, inner ring | B | 110 | mm |
| Minimum chamfer dimension | rmin | 3 | mm |
| Tightening torque clamping screw | Mi | 10.32 | Nm |
| Maximum axial load | Fa max | 14,000 | |
| Fatigue load limit, radial | Cur | 61,000 | |
| Basic dynamic load rating, radial | Cr | 630,000 | |
| Outside diameter | D | 250 | mm |
| Limiting speed | nG | 1,170 | |
| Basic static load rating, radial | C0r | 870,000 | |
| Width, outer ring | B | 68 | mm |
| Bore diameter | d | 125.413 |
