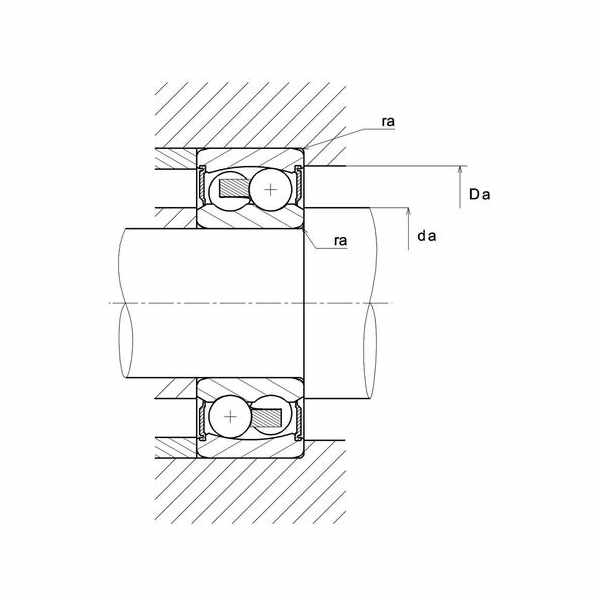

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da max - Max shoulder diameter IR | 67,3 mm | ||
| BSF - Characteristic rolling element frequency | 7,401 Hz | ||
| BPFI - Characteristic inner ring frequency | 10,751 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 3600 tr/min | ||
| Y1 - Lower axial load coefficient | 3.31 | ||
| e - Coefficient | 0.19 | ||
| C0 - Static load | 10 kN | ||
| Radial clearance class | CN | ||

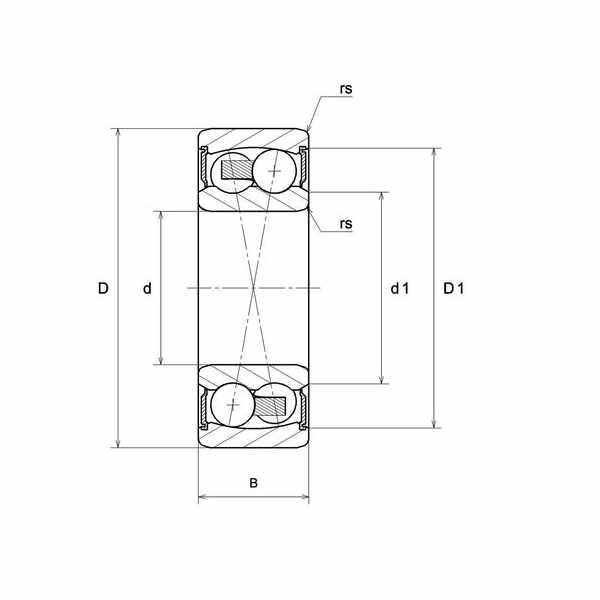

| D1 - Inner diameter outer ring | 88,8 mm |
| Da max - Max shoulder diameter OR | 92 mm | ||
| da min - Min shoulder diameter IR | 63 mm | ||
| FTF - Characteristic cage frequency | 0,434 Hz | ||
| BPFO - Characteristic outer ring frequency | 8,249 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Y2 - Upper axial load coefficient | 5.12 | ||
| Y0 - Static axial load coefficient | 3.47 | ||
| Cu - Fatigue limit load | 0,45 kN | ||
| C - Dynamic load | 26,8 kN | ||
| rs - Min fillet radius | 1,5 mm | ||
| Brand | SNR |
