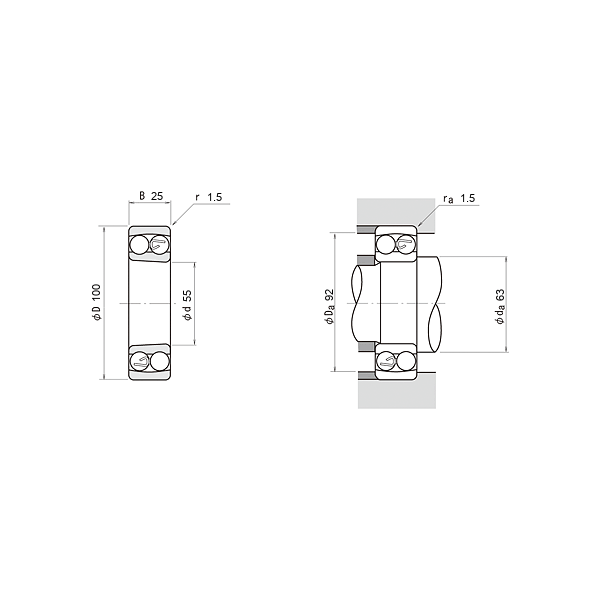

| Bore diameter | d | 55 | mm |
| Width | B | 25 | mm |
| Basic static load rating, radial | C0r | 12,500 | |
| Limiting speed | nG | 7,000 |
| Outside diameter | D | 100 | mm |
| Basic dynamic load rating, radial | Cr | 39,000 | |
| Fatigue load limit, radial | Cur | 790 | N |
| Reference speed | nϑr | 6,700 |
| Minimum diameter shaft shoulder | da min | 64 | mm |
| Maximum diameter of housing shoulder | Da max | 91 | mm |
| Minimum cavity width of the sleeve | Ba min | 10 | mm |
| Maximum diameter shaft shoulder | da max | 68 | mm |
| Minimum cavity diameter of the sleeve | db min | 60 | mm |
| Maximum fillet radius | ra max | 1.50 | mm |
| Minimum chamfer dimension | rmin | 1.50 | mm |
| Shoulder diameter inner ring | d1 | 69.60 | mm |
| Shoulder diameter outer ring | D1 | 89.80 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | 2211K/C3 |
| SKC | 9041981 |
| RHP | 2211EKTNH |
| KOYO | 2211K |
| SKC | 8602376 |
| NTN | 2211K (NTN) |
| SKC | 3001288 |
| SKF | 2211-K (SKF) |
| Marlin-Rockwell Corp. | 2211EK |
| SKF | 2211-E-K TN9 (SKF) |
| GPZ Bearings | 111511 |
| NSK | 2211 E-K-TNG (NSK) |
| NSK | 2211 K (NSK) |
| RHP | 2211K |
| SKF | 2211 E-K TN9/C3 (SKF) |
