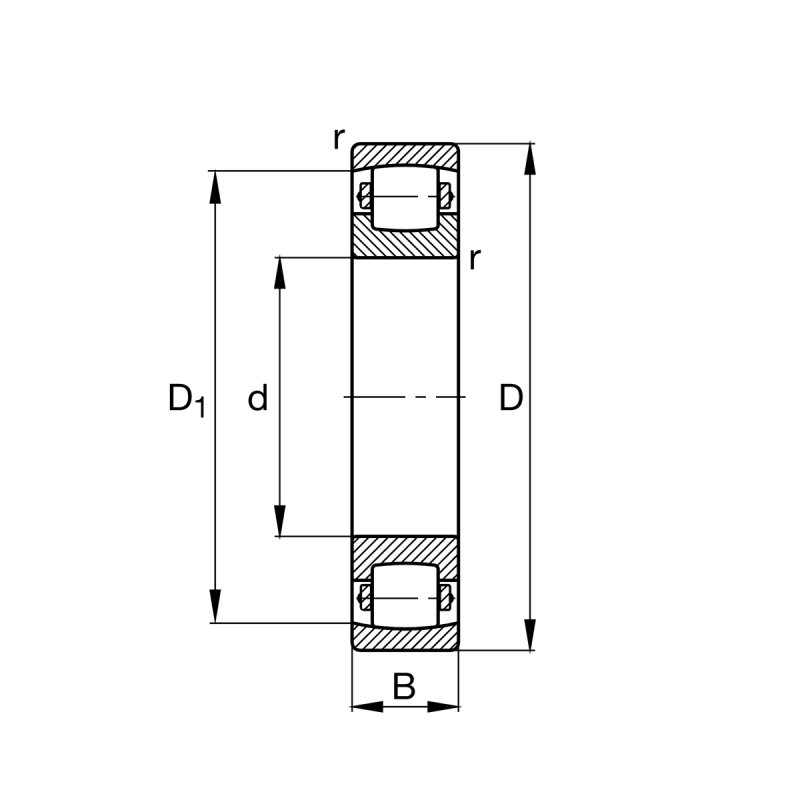

| Bore diameter | d | 35 | mm |
| Width | B | 17 | mm |
| Basic static load rating, radial | C0r | 43,000 | |
| Limiting speed | nG | 9,700 |
| Outside diameter | D | 72 | mm |
| Basic dynamic load rating, radial | Cr | 41,000 | |
| Fatigue load limit, radial | Cur | 5,000 |

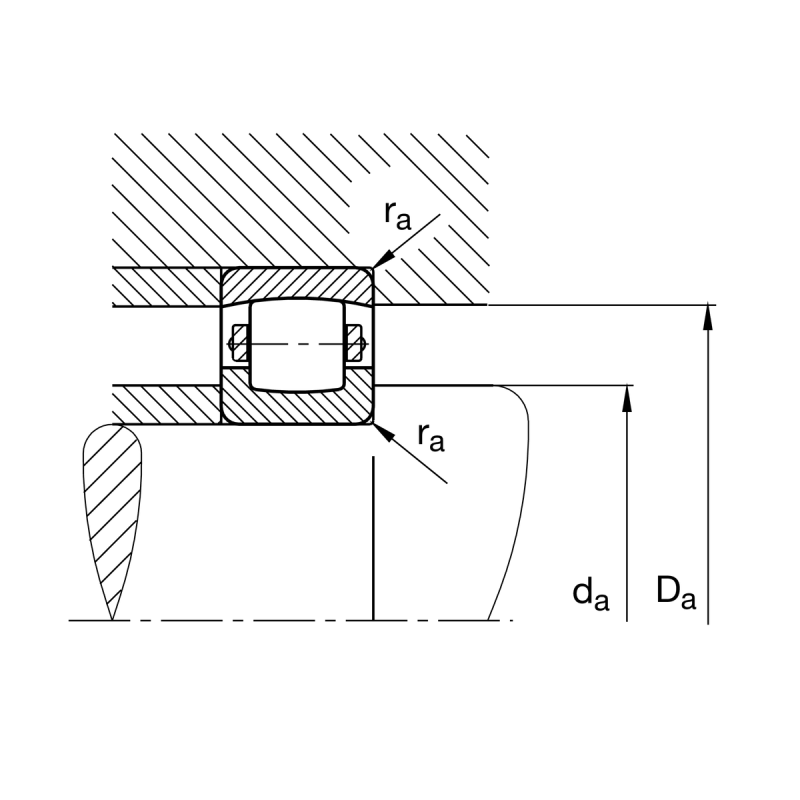

| Minimum diameter shaft shoulder | da min | 42 | mm |
| Maximum recess radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 65 | mm |
| Minimum chamfer dimension | rmin | 1.10 | mm |
| Bore diameter outer ring | D1 | 62.30 | mm |
