| Housing Material | polyphenylene sulfide | ||
| max. ambient temperature | 50 °c | ||
| Duty cycle | 100 % | ||
| Sealing principle | soft seal | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 8 bar | ||
| nominal flow qn | 7.5 l/min | ||
| Valve function | nc | ||
| frame size | do10 |
| Weight | 0.038 kg | ||
| min. ambient temperature | -10 °c | ||
| power consumption dc | 1.2 w | ||
| protection class with connection | ip50 | ||
| operational↩voltage | 24 v dc | ||
| working pressure min. | 0 bar | ||
| Manual override | without detent | ||

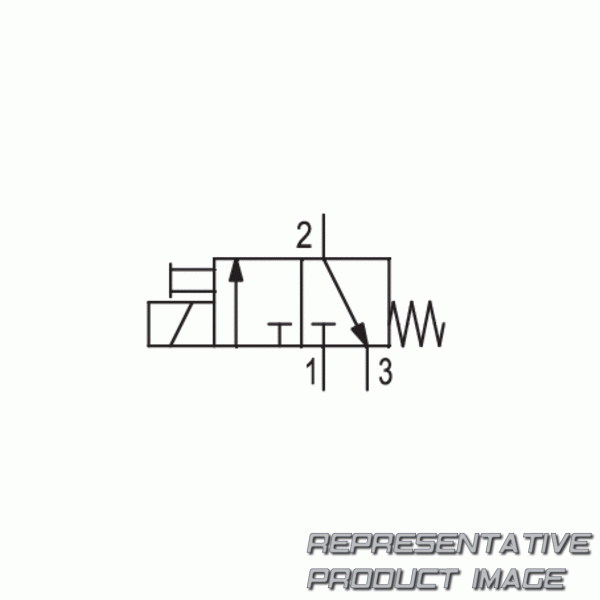

| switching principle | 3/2, with spring return | ||
| activation | electrically |
