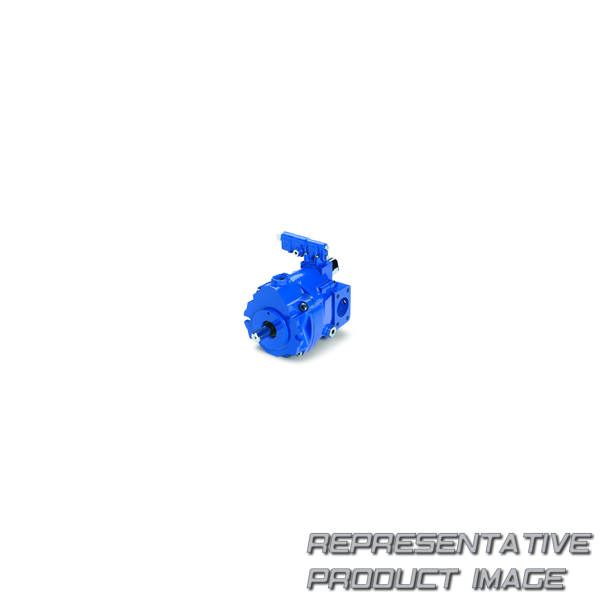

| pumps | pvm074er09gs02byc2520000 1a0a | ||
| displacement | 074 : 73,7 cm3/r [4.50 in3/r] (315 bar max) | ||
| input rotation | r : clockwise (right hand) | ||
| Mounting flange | g : sae j744-127-4 (c, 4-bolt) (models 057, 074, 098 and 131) | ||
| port options | 02 : sae j518 flange ports, sae auxiliary ports | ||
| control | c : pressure and flow compensator with plugged orifice | ||
| other compensation / unload vlv reset | 00 : none | ||
| auxiliary mounting | 1 : auxiliary mount with cover plate, suitable for all thru-drive mounting kits | ||
| customer identification | 0 : none | ||
| pressure comp setting | 25 |
| code title | pvm : vickers variable displacement open circuit piston pumps | ||
| valve plate | e : industrial (1800 r/min max) | ||
| input shaft | 09 : sae j744-32-1, sae c, straight keyed (model 057, 074, 098 and 131) | ||
| main port location | s : side | ||
| pump special features | by : adjustable max displacement stop and high pressure single shaft seal for industrial application (model 074 thru 141) | ||
| flow comp setting / unload vlv standby | 20 : 19-21 bar [275.5-304.5 lbf/in2] | ||
| compensator special feature | 0 : none | ||
| paint | a : blue | ||
| design code | a : a |
