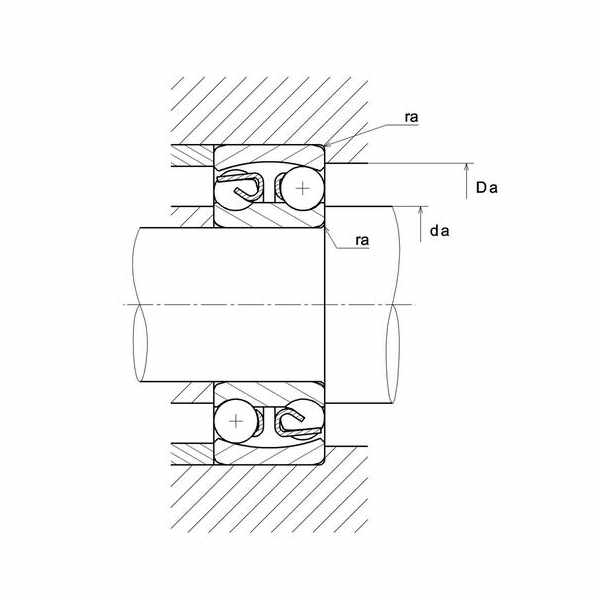

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da min - Min shoulder diameter IR | 83 mm | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nlim - Oil lubrication limit speed | 5300 tr/min | ||
| Y1 - Lower axial load coefficient | 3.60 | ||
| e - Coefficient | 0.17 | ||
| C0 - Static load | 15,7 kN | ||
| Radial clearance class | C3 | ||
| Brand | NTN |
| Da max - Max shoulder diameter OR | 122 mm | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 4300 tr/min | ||
| Y2 - Upper axial load coefficient | 5.60 | ||
| Y0 - Static axial load coefficient | 3.80 | ||
| Cu - Fatigue limit load | 0,63 kN | ||
| C - Dynamic load | 39 kN | ||

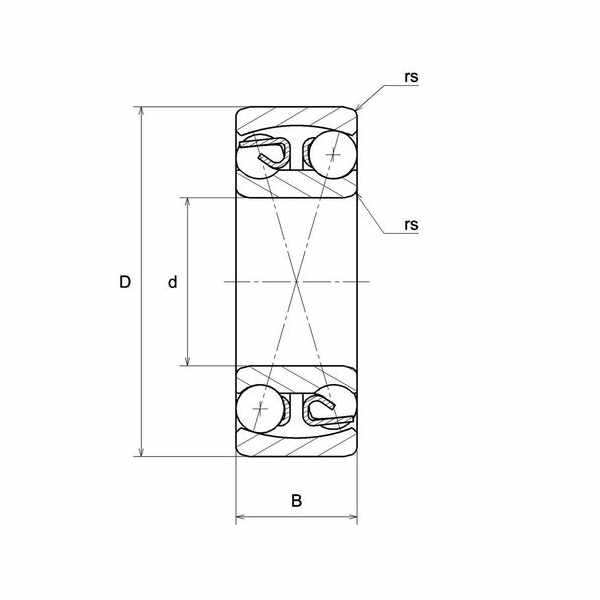

| rs - Min fillet radius | 1,5 mm |
