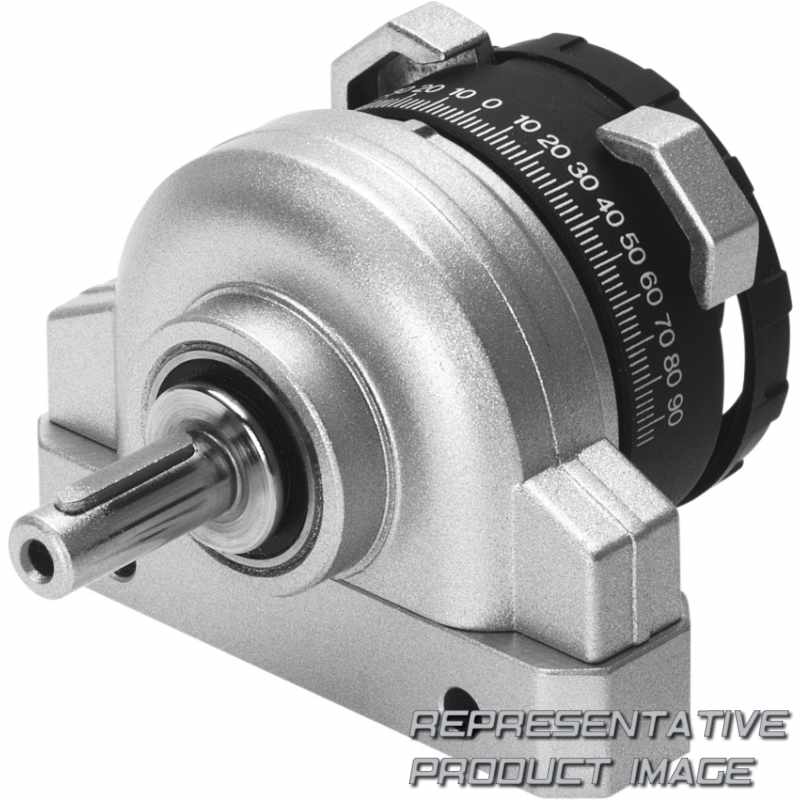

FESTO 11911 semi-rotary drive

Name: 11911 FESTO
Brand: FESTO
SKU: 711022-en-gbp
Price: 396.22 GBP
Availability: InStock

DSR-25-180-P

£396.22

9 pcs. with 1 to 3 days delivery to United States

Specifications

Cushioning (P)	Elastic cushioning rings/plates on both sides
Shaft	Spigot shaft

Theoretical torque at 0.6 MPa (6 bar, 87 psi)		5 Nm
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure		1,5 bar ... 8 bar
Position detection		Without
Mode of operation		Double-acting
Cushioning		Elastic cushioning rings/plates at both ends
Rotation angle adjustment range		0 deg ... 180 deg
Size		25
Material drive shaft		Steel Nickel-plated
Type of mounting		With through-hole

Ambient temperature		-10 °C ... 60 °C
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)		3 Hz
Symbol		00991265
Design		Vane
Mounting position		optional
Swivel angle		0 deg ... 180 deg
Cushioning angle		1,8 deg
Material seals		NBR
Pneumatic connection		M5
Product weight		500 g
