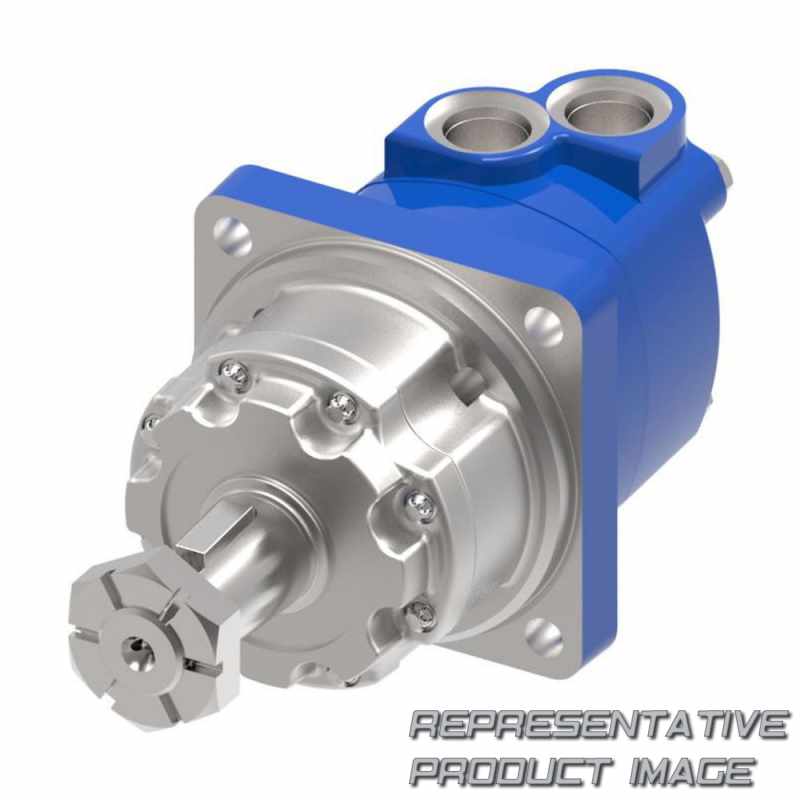

| motors | 4000 series; wheel mount motor | ||
| Series | 04 : 4000 series | ||
| Mounting type | ac : wheel, 4 bolt; 139.70 [5.500] pilot dia.14.27 [.562] dia. holes on 165.10 [6.500] dia. bolt circle. | ||
| ports | ac : g 3/4 ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| product | m : motor | ||
| displacement | 150 : 246.3 cm3/r [15.03 in3/r] | ||
| output shaft | 11 : 40.00 [1.575] dia. straight with m12 x 1.75-6h thread, 7.955 [.3132] x 11.979 [.4716] wide x 69.98 [2.755] straight key | ||
| case flow options | 03 : g 1/4 bsp straight thread with check valve | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | aa : primer low gloss black, individual box | ||
| design code | f : sixth |
