| Brand | SNR | ||

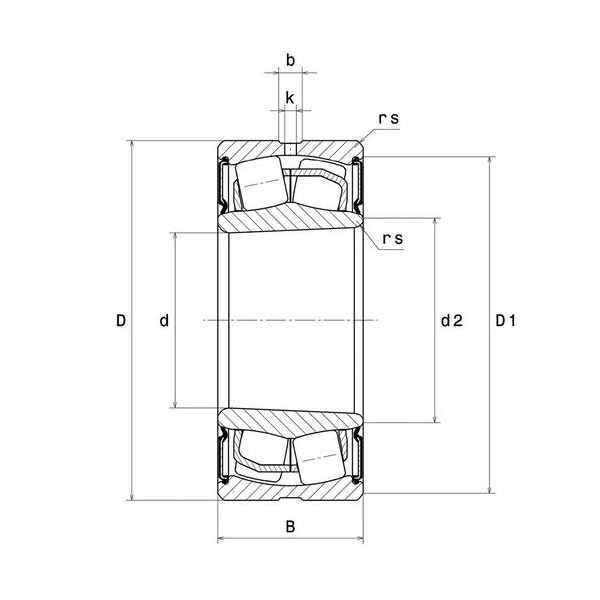

| rs - Min fillet radius | 1,5 mm | ||
| b - Groove width | 6,35 mm | ||
| Associated sleeve reference | H311E | ||
| C - Dynamic load | 155 kN | ||
| Cu - Fatigue limit load | 18 kN | ||
| Y0 - Static axial load coefficient | 2.89 | ||
| Y2 - Upper axial load coefficient | 4.40 | ||
| Tmin - Min operating temperature | -20 °C | ||
| BPFO - Characteristic outer ring frequency | 7,62 Hz | ||
| FTF - Characteristic cage frequency | 0,423 Hz | ||

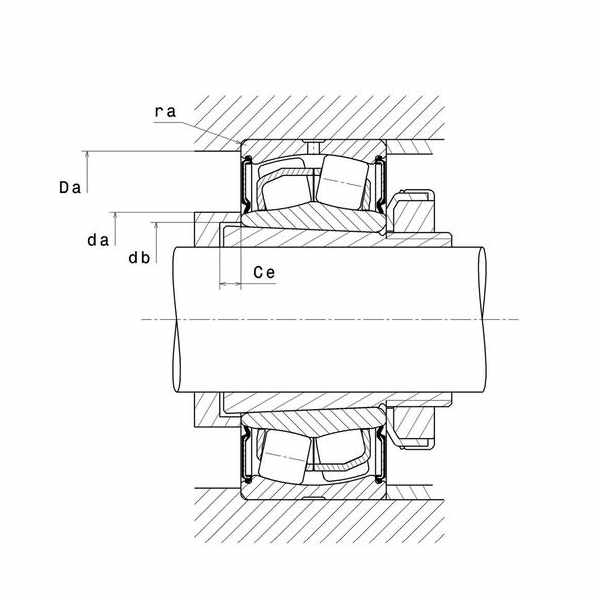

| da max - Max shoulder diameter IR | 63,4 mm | ||
| db - Min diameter for Sleeve | 60 mm | ||
| Da max - Max shoulder diameter OR | 93,9 mm |
| D1 - Inner diameter outer ring | 93,9 mm | ||
| Number of lubrication holes | 3 | ||
| k - Hole diameter | 3 mm | ||
| Radial clearance class | CN | ||
| C0 - Static load | 148 kN | ||
| e - Coefficient | 0.23 | ||
| Y1 - Lower axial load coefficient | 2.95 | ||
| Nlim - Mechanical Limit Speed | 1700 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 10,38 Hz | ||
| BSF - Characteristic rolling element frequency | 6,294 Hz | ||
| da min - Min shoulder diameter IR | 63,4 mm | ||
| Ce - Min length fro Sleeve | 4 mm | ||
| ra max - Max shaft & housing fillet radius | 1,5 mm |
