| for fluid type | oil/petroleum, pneumatic media, water | ||
| Weight | 0.4145 kg/m, 0.286 lb/ft | ||
| region of origin | france | ||
| weight (per unit of measure) | 33.16 kg/package | ||
| hose inner tube material | nbr | ||
| specifications met | rohs, 2011/65/ec, cnomo: e07.21.115n, nft 46-019-1, nft 47 252, reach | ||
| maximum operating temperature | 100 °c, 212 °f | ||
| media | oil/petroleum, pneumatic media, water | ||
| minimum bend radius | 170 mm, 6.692 inch | ||

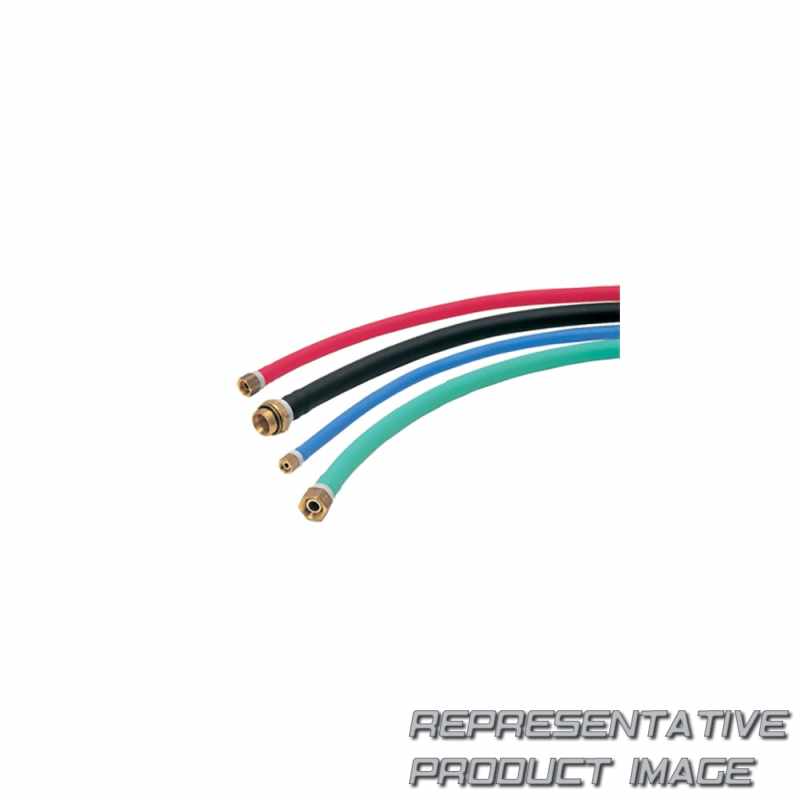

| product type | coolant hose, pneumatic hose | ||
| Application | cooling, in-plant automotive, industrial machinery, pneumatic, welding robots | ||
| division | low pressure connectors europe division | ||
| Brand | legris | ||
| hose inside diameter | 0.751 inch | ||
| materials of construction | nbr | ||
| cover color | black |
| number of tubes | 1 | ||
| disclaimer | caution: cnomo certification is valid exclusively for red and green hose only when connected to legris’ cnomo-certified barb connectors 0132 | ||
| package type | reel | ||
| hose reinforcement material | textile braid | ||
| cover material | nbr | ||
| minimum operating temperature | -20 °c, -4 °f | ||
| compatible fitting | quick-acting barbed fitting with brass female compression fitting, quick-acting barbed fitting with brass male bspp thread, quick-acting barbed fitting with brass male bspt thread | ||
| design factor | 3 | ||
| product style | coolant hose, pneumatic hose, self-fastening hose | ||
| technology | fluid & gas handling, pneumatics, process control | ||
| industry | industrial manufacturing equipment | ||
| bend radius | 6.692 inch, 170 mm | ||
| maximum operating pressure | 1.6 mpa, 16 bar, 232.064 psi | ||
| hose outside diameter | 1.062 inch | ||
| length per package | 80 m |
