| Material screen | PA | ||
| Material bowl | Wrought aluminium alloy | ||
| Material housing | Die-cast aluminium | ||
| Material sub-base | Die-cast aluminium | ||
| Material covering | PA-reinforced | ||
| Product weight | 2.000 g | ||
| Oil viscosity | ISO VG 32 | ||
| Storage temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Explosion ambient temperature | -10°C <= Ta <= +60°C | ||
| Explosion ignition protection type for gas | Ex h IIC T6 Gb X | ||
| ATEX category gas | II 2G | ||
| Approval | c UL us - Recognized (OL) | ||
| Min. flow rate for lubricator function | 100 l/min | ||

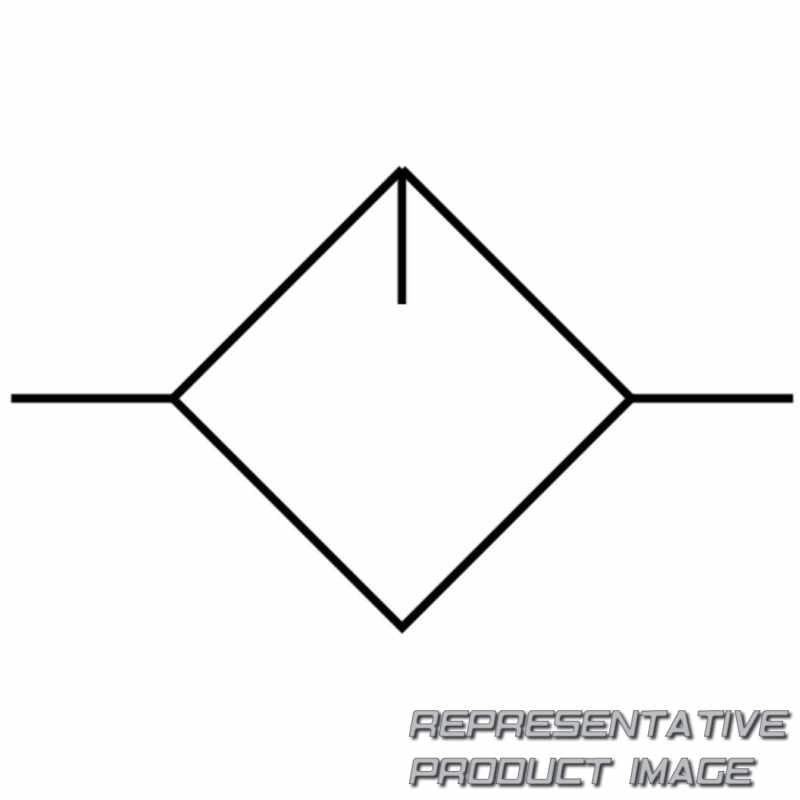

| Symbol | 00991532 | ||
| Max. oil capacity | 490 cm³ | ||
| Mounting position | Vertical +/-5° | ||
| Size | 9 |
| Material cup seal | NBR | ||
| Material module connector | Die-cast aluminium | ||
| Material seals | NBR | ||
| Note on materials | RoHS-compliant | ||
| Type of mounting | In-line installation With accessories | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Media temperature | -10 °C ... 60 °C | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Explosion ignition protection type for dust | Ex h IIIC T60°C Db X | ||
| ATEX category dust | II 2D | ||
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| Standard nominal flow rate | 8.500 l/min ... 27.000 l/min | ||
| Operating pressure | 1 bar ... 16 bar | ||
| Bowl guard | Plastic bowl guard Integrated as metal bowl | ||

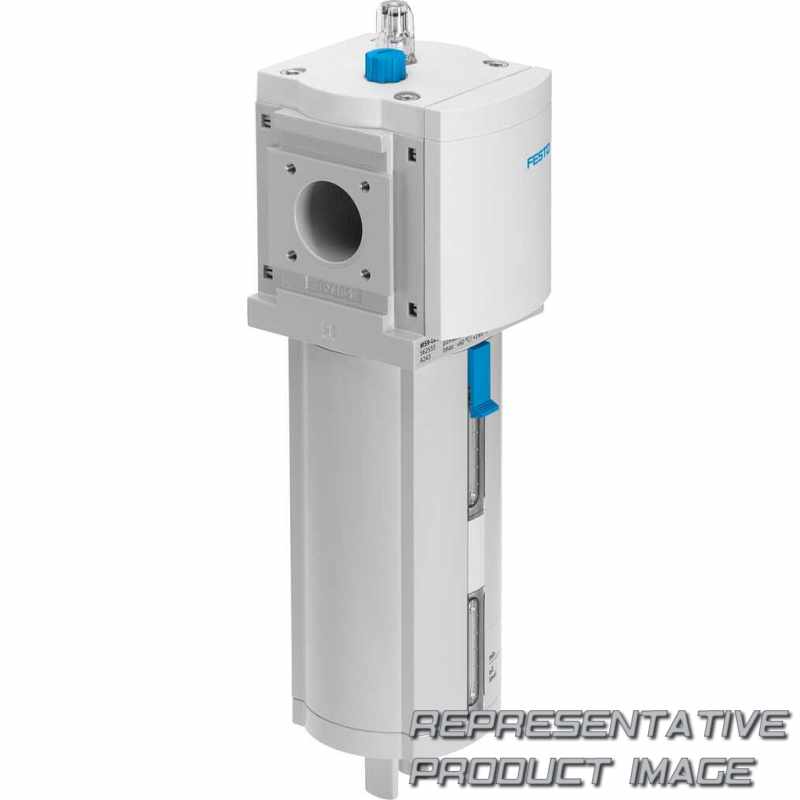

| Design | Proportional standard mist lubricator | ||
| Series | MS |
