| thread sealant | ptfe coated | ||
| thread | r1/8 | ||
| Series | pneufit | ||
| product style | pif | ||
| operating temperature temperature celsius min to max range | -20 ... 80 °c | ||
| od tube length millimetre | 8 mm | ||
| collet | nickel plated brass | ||
| bspt | r1/8 |
| thread form | iso r | ||

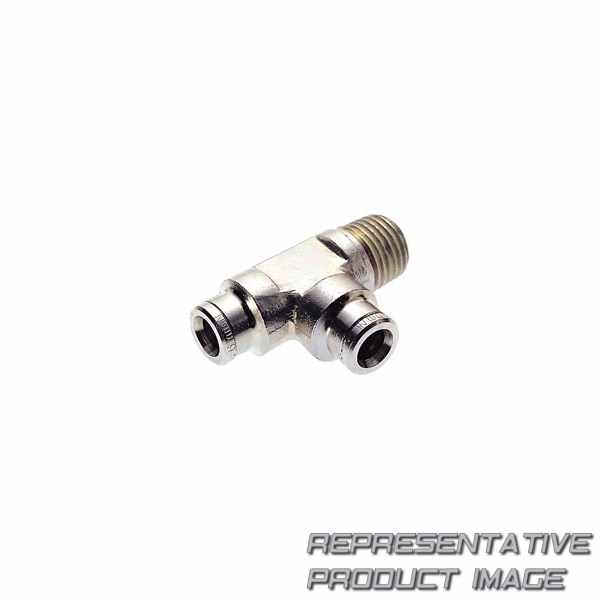

| shape | tee | ||
| sealing washer | elastomers nbr (silicone free) | ||
| oring | nbr (silicone free) | ||
| operating pressure pressure bar min to max range | -0.9 ... 18 bar | ||
| Medium | compressed air | ||
| collar | nickel plated brass | ||
| body | nickel plated brass |
