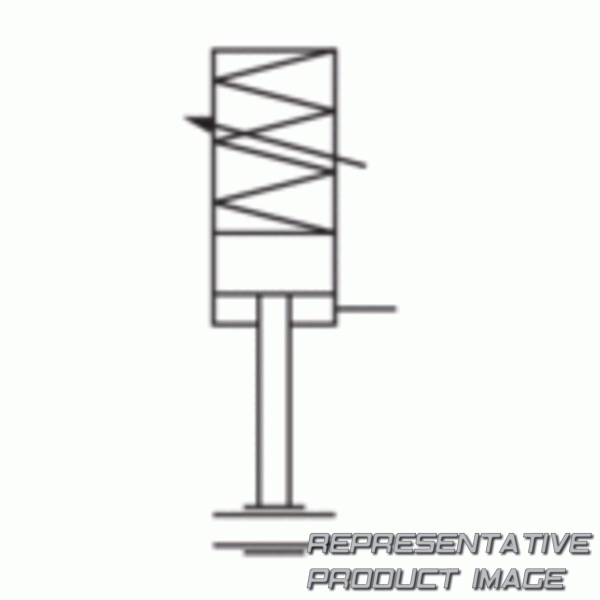

| function | hold: adjustable spring force, release: compressed air | ||
| suitable piston rod Ø | 25 mm | ||
| compressed air connection | g 1/8 | ||
| release pressure max. | 8 bar | ||
| max. medium temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| max. ambient temperature | 80 °c | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Weight | 8.8 kg | ||
| Cover | die-cast aluminum |
| piston Ø | 80 mm, 100 mm | ||
| Piston rod extension | 140 mm | ||
| release pressure min. | 2 bar | ||
| min. medium temperature | -20 °c | ||
| Medium | compressed air | ||
| min. ambient temperature | -20 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Static holding force | 5800 n | ||
| housing | aluminum |
