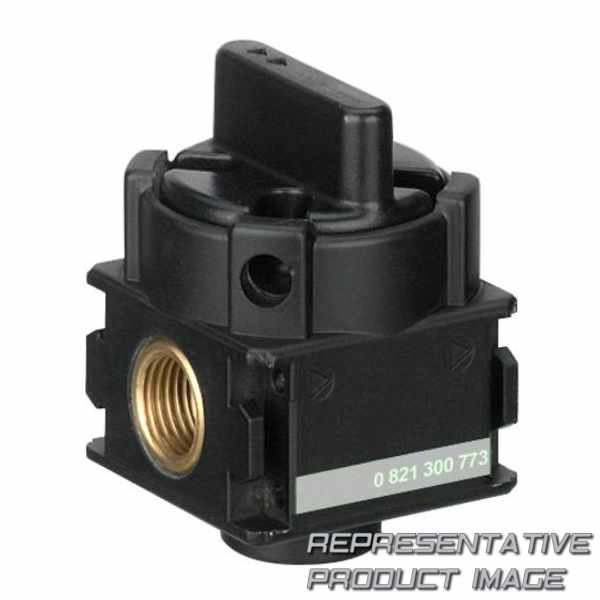

| activation | mechanical | ||
| compressed air connection | g 1/8 | ||
| working pressure max | 16 bar | ||
| Sealing principle | metal/metal sealing | ||
| parts | shut-off valve | ||
| min. ambient temperature | -10 °c | ||
| min. medium temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| nominal flow qn 1 to 2 | 1800 l/min | ||
| Weight | 0.246 kg | ||
| seal material | acrylonitrile butadiene rubber |
| nominal flow qn | 3000 l/min | ||
| working pressure min. | 0 bar | ||
| actuating element | rotary switch | ||
| Type | ball valve | ||
| lock type | for padlocks | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| compressed air connection, exhaust | g 1/4 | ||
| nominal flow qn 2 to 3 | 70 l/min | ||
| Housing Material | die cast zinc | ||
| material actuating control | polyoxymethylene |
