| Sealing principle | soft seal | ||
| Medium | compressed air | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||

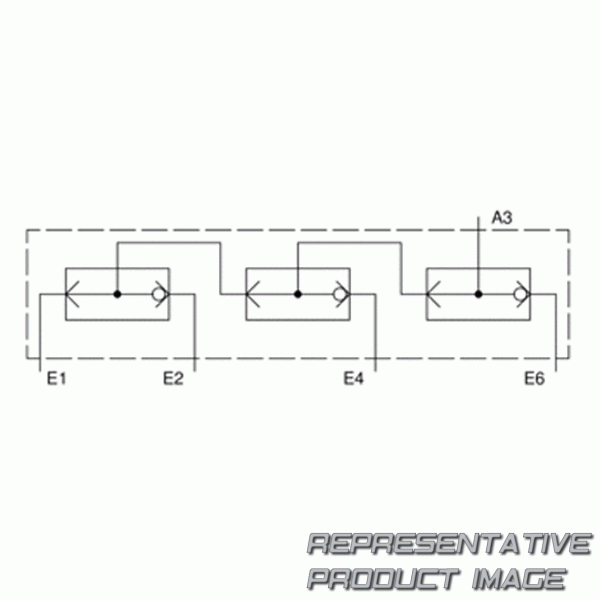

| logic function | shuttle valves (or) | ||
| nominal flow qn | 80 l/min | ||
| working pressure max | 10 bar | ||
| Housing Material | polyamide |
| Type | poppet valve | ||
| max. particle size | 1 µm | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| connection type | plate valve with pipe connection | ||
| working pressure min. | 1 bar | ||
| Weight | 0.03 kg | ||
| seal material | acrylonitrile butadiene rubber |
