| activation | pneumatically | ||

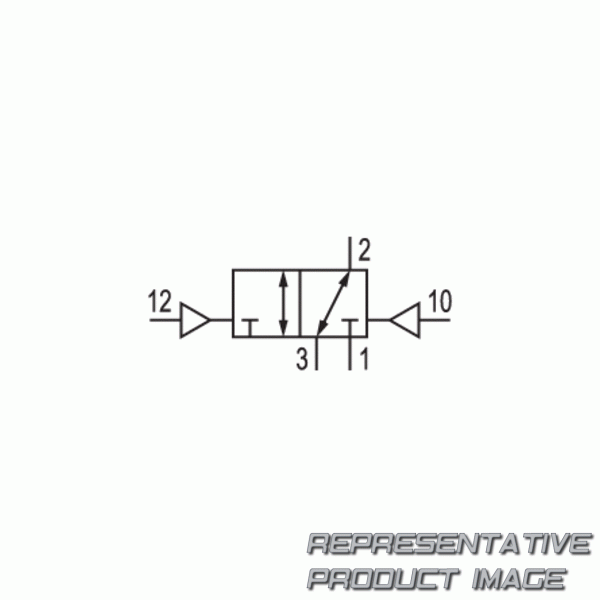

| switching principle | 3/2 | ||
| actuating control | single air pilot | ||
| connection type | pipe connection | ||
| working pressure max | 10 bar | ||
| valve type | spool valve | ||
| control pressure max. | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| oil content of compressed air max. | 25 mg/m³ | ||
| mounting screw | m4 with hexagon socket | ||
| Weight | 0.19 kg |
| nominal flow qn | 280 l/min | ||
| return type | with air spring return | ||
| compressed air connection output | g 1/8 | ||
| working pressure min. | -0.95 bar | ||
| Sealing principle | metal/metal sealing | ||
| control pressure min. | 1.8 bar | ||
| min. ambient temperature | -15 °c | ||
| min. medium temperature | -15 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 5 mg/m³ | ||
| compressed air connection, exhaust | g 1/8 | ||
| mounting screw tightening torque | 2.5 nm |
