| activation | electrically | ||

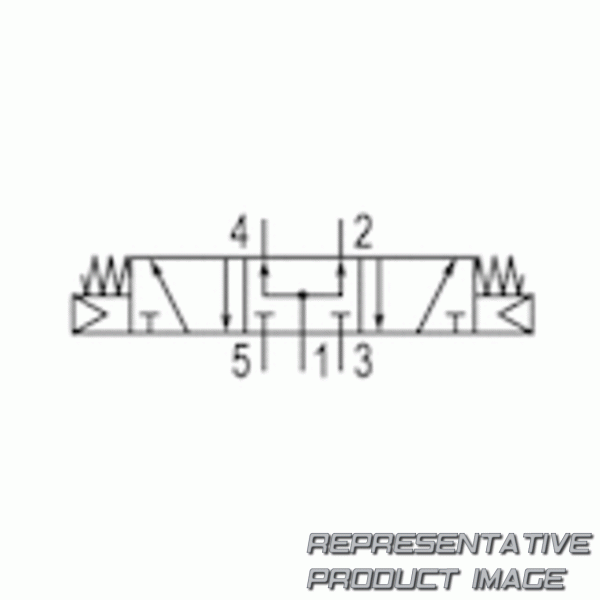

| switching principle | 5/3 | ||
| compressed air connection output | g 1/8 | ||
| working pressure max | 10 bar | ||
| electrical connection size | iso 15217, form c | ||
| pilot | internal | ||
| valve type | spool valve, positive overlapping | ||
| connection type | pipe connection | ||
| control pressure max. | 10 bar | ||
| max. ambient temperature | 50 °c | ||
| max. medium temperature | 60 °c | ||
| max. particle size | 0.5 µm | ||
| oil content of compressed air max. | 25 mg/m³ |
| nominal flow qn | 250 l/min | ||
| Version | pressurized center | ||
| working pressure min. | 2.2 bar | ||
| electrical connection type | plug | ||
| Sealing principle | soft seal | ||
| pilot valve width | 15 mm | ||
| basic valve with electrical connector | basic valve without coil | ||
| control pressure min. | 2.2 bar | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ |
