| nominal flow qn | 250 l/min | ||
| Version | exhausted center | ||
| working pressure min. | 2.2 bar | ||
| dc operating voltage | 24 v | ||
| Manual override | without detent | ||
| electrical connection type | plug | ||
| Sealing principle | soft seal | ||
| Standards | iso 15407-1 | ||
| valve type | spool valve, positive overlapping | ||
| connection type | plate connection | ||
| compressed air connection, exhaust | vdma 02 base plate | ||
| power consumption dc | 2 w | ||
| control pressure min. | 2.2 bar |

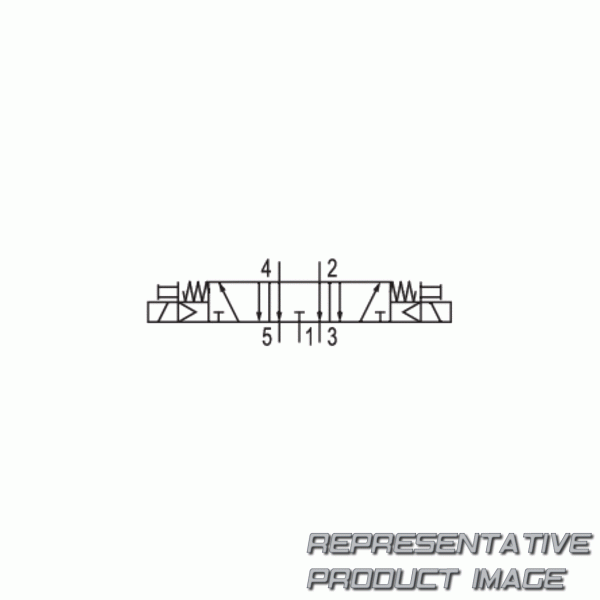

| switching principle | 5/3 | ||
| compressed air connection output | vdma 02 base plate | ||
| working pressure max | 10 bar | ||
| voltage tolerance dc | -10% / +10% | ||
| Electrical connection | 2 | ||
| electrical connection size | iso 15217, form c | ||
| pilot | internal | ||
| pilot valve width | 15 mm | ||
| blocking principle | base plate principle, multiple | ||
| compressed air connection input | vdma 02 base plate | ||
| compressed air connection pilot exhaust | vdma 02 base plate | ||
| frame size | 18 mm |
