| connection 1 thread size (metric) | m12x1, 25 | ||
| connection 1 thread style | metric | ||
| product type | nozzles for polymer blowguns | ||
| o-ring material | nbr | ||
| minimum operating temperature | -15 °c | ||
| quantity per box | 5 | ||
| Application | manufacturing workshops, cleaning, blowing, mixing, ejection, cooling, packaging | ||
| specifications met | compliance for all blowguns: di: 97/23/ec (ped), di: 2002/95/ec (rohs), 2011/65/ec, di: 1907/2006 (reach) -- compliance for specific blowguns: di: 1910.242 (b) [osha] the static pressure must be less than 30 psi in case the nozzle becomes blocked. di: 1 |
| diameter nominal (dn) | 2, 5 | ||
| body material | nickel plated brass | ||

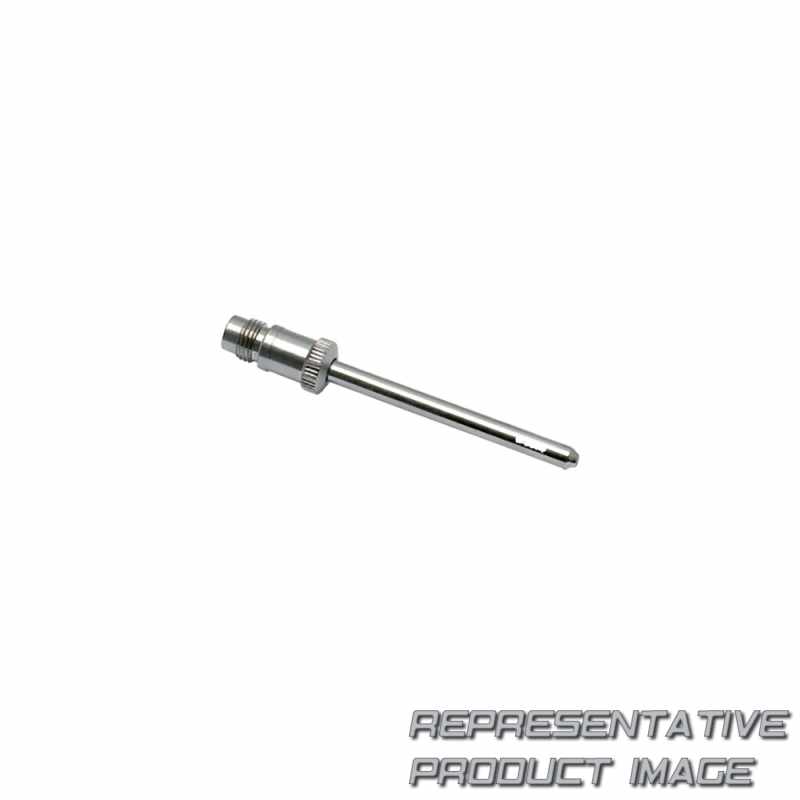

| shape | safety straight short nozzle | ||
| maximum operating pressure | 10 barg | ||
| maximum operating temperature | 50 °c | ||
| Weight | 0.033 kg | ||
| media | compressed air, other fluids: contact us |
