| Non-standard version | Deviations from catalogue standards, see drawing | ||
| Sealing Material | NBR | ||
| Version | Phosphated, pinned | ||
| model | Model F (5.5 ... 22.5 cm³/rev) | ||

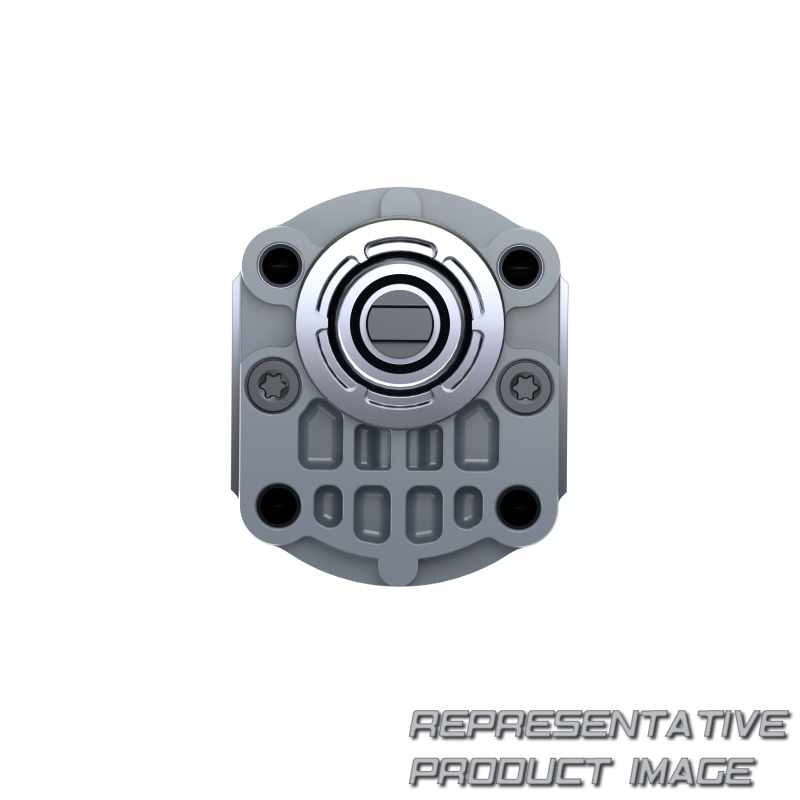

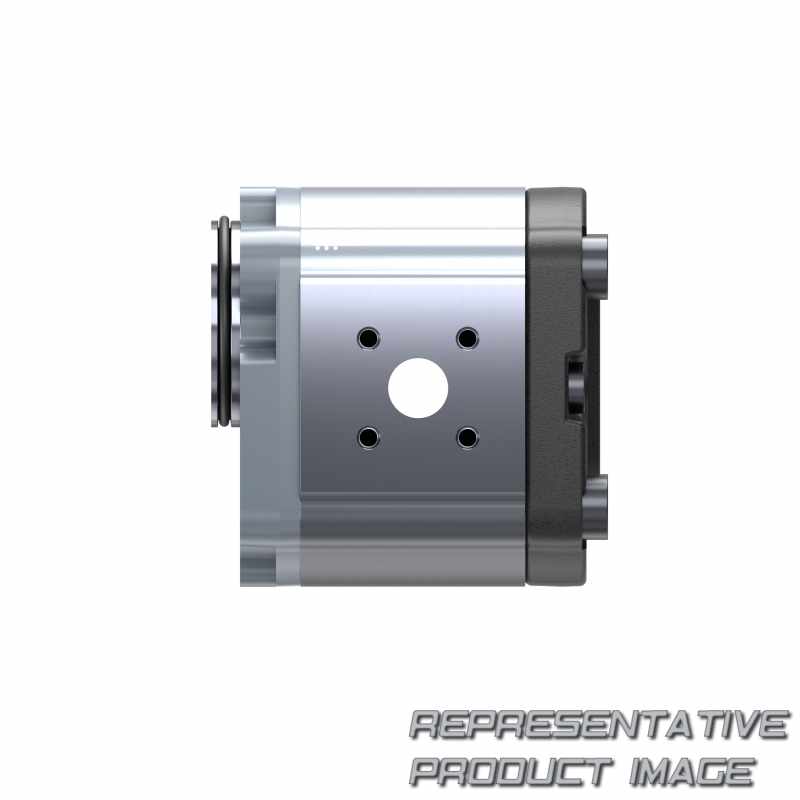

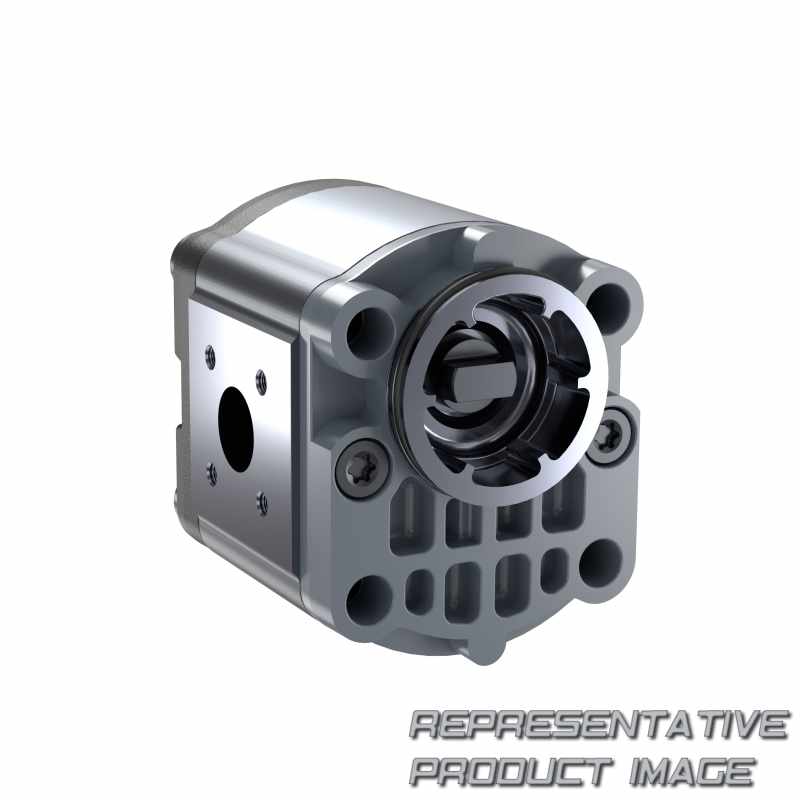

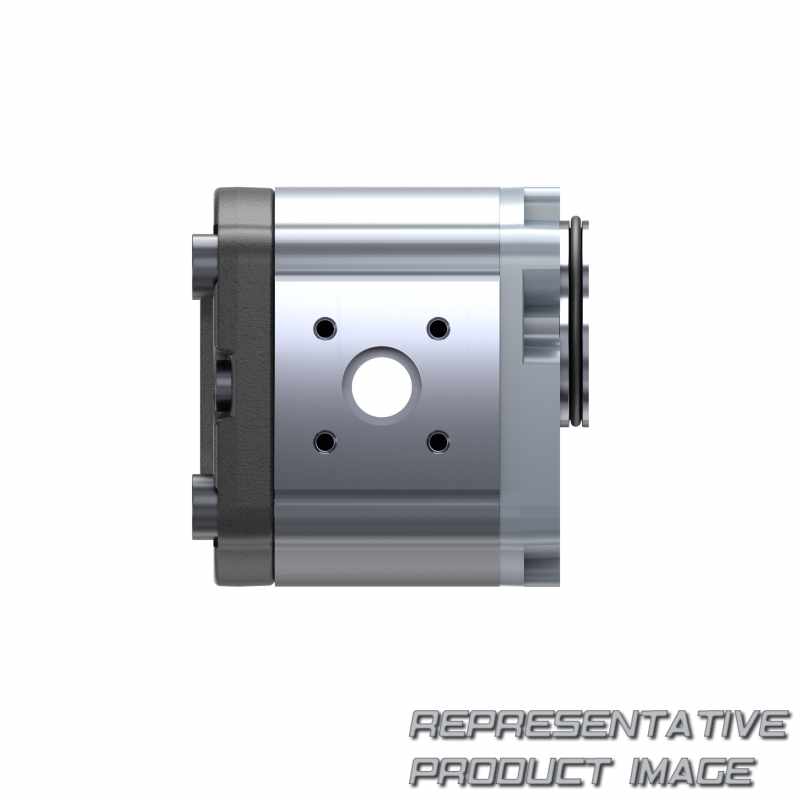

| product | External gear unit | ||
| Housing Material | Aluminum | ||
| Direction of rotation | anti clockwise rotation | ||
| Maximum rotational speed | 3500 rpm | ||
| Nominal size | 11 cm³/rev |
| Rear cover | Standard | ||
| port connection | Rectangular flange for fitting ISO8434-1 | ||
| Series | Bearing diameter Ø 18mm | ||
| function | Motor | ||
| Noise level | Standard noise level | ||
| Front cover | 4-hole mounting Ø 52 mm with O-ring | ||
| Drive shaft | 2 flats with claw | ||
| Maximum constant pressure | 250 bar |
