| Nominal size | 25 cm³/rev | ||
| Maximum rotational speed | 3000 rpm | ||
| Direction of rotation | Clockwise rotation | ||
| Housing Material | Aluminum | ||
| Application | general | ||
| function | Pump | ||
| Series | Housing width 110 mm | ||
| port connection | Square flange to fitting ISO 8434-1 | ||
| Rear cover | Standard |
| Max. intermittent pressure | 250 bar | ||
| Drive shaft | Spline shaft SAE J744 22-4 (13T 16/32DP) | ||
| Front cover | SAE J744 101-2 (B) 2-bolt flange | ||
| Noise level | Standard noise level | ||

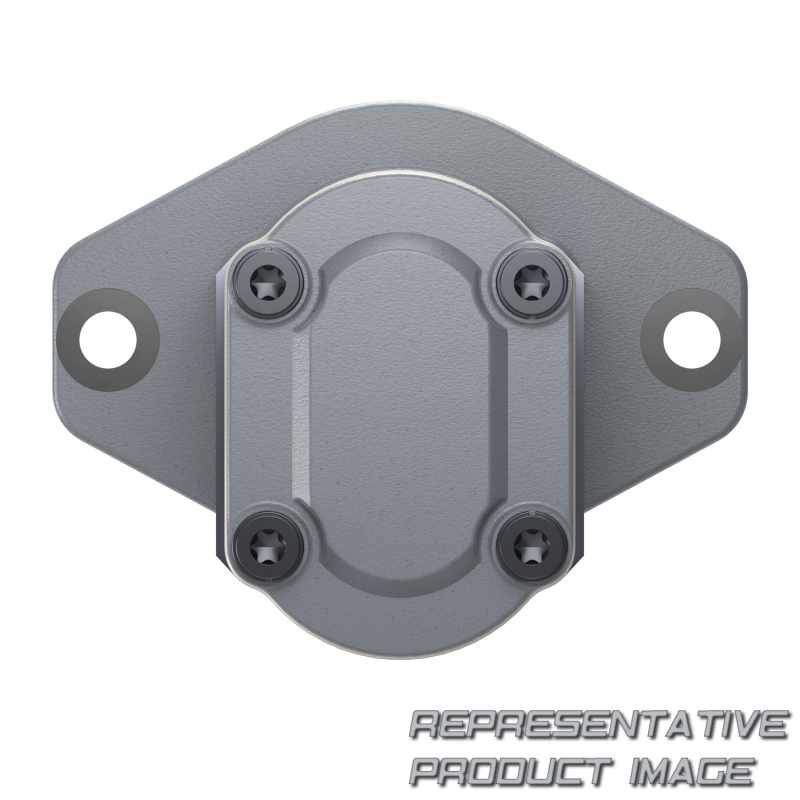

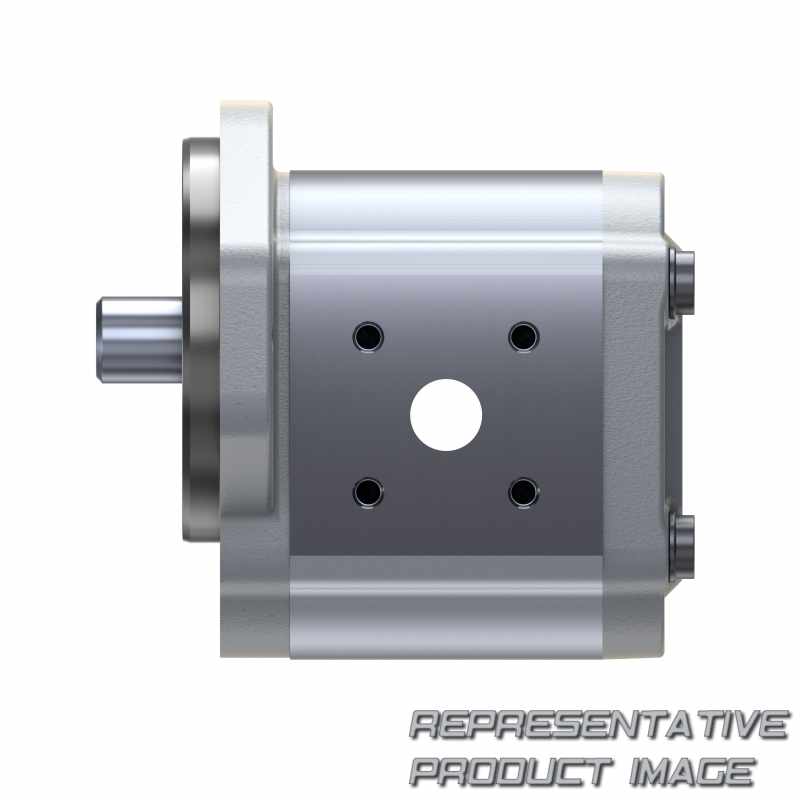

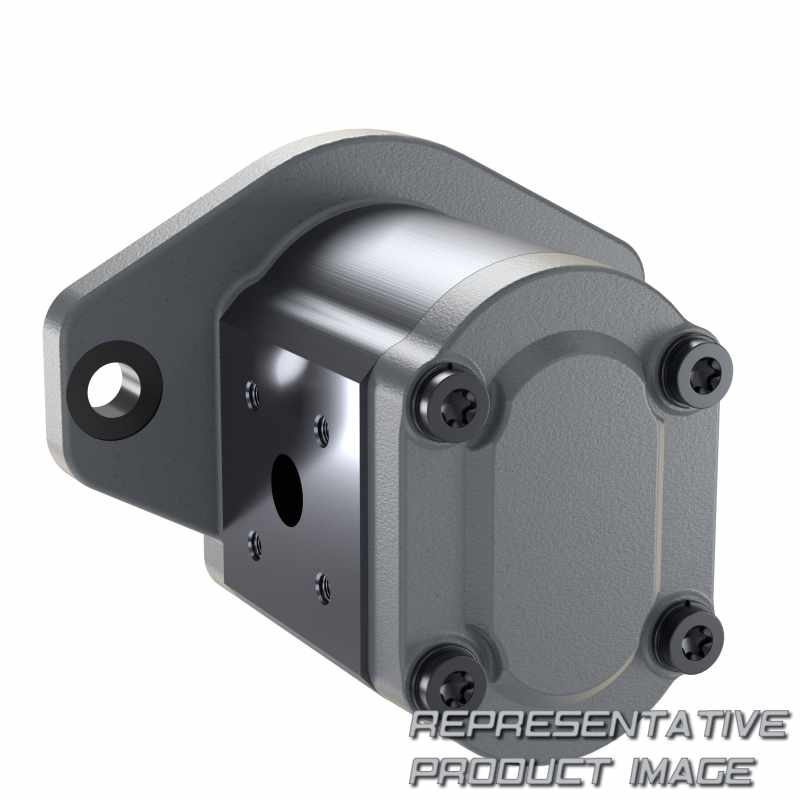

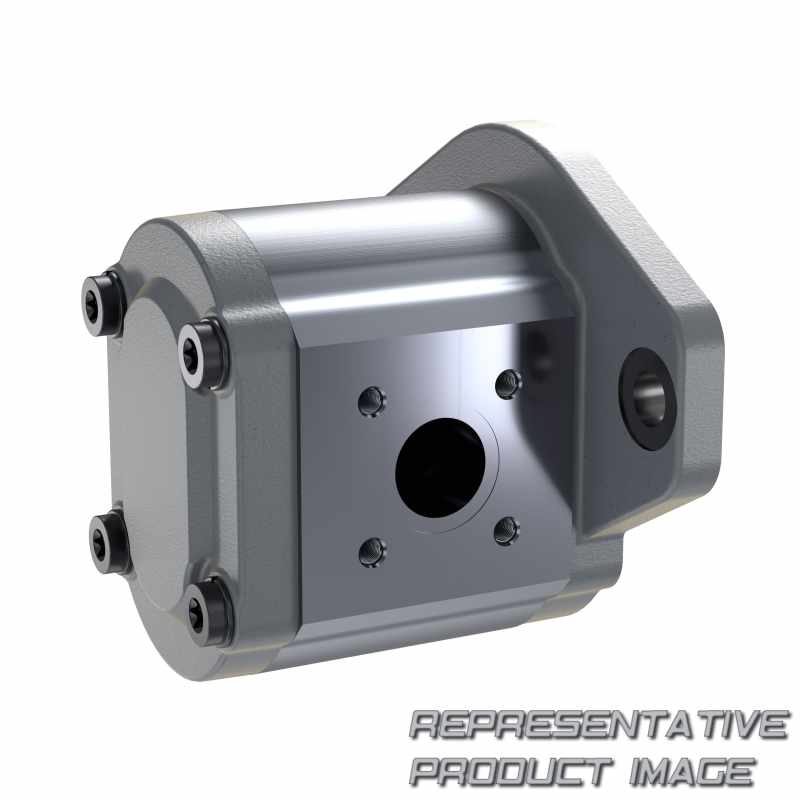

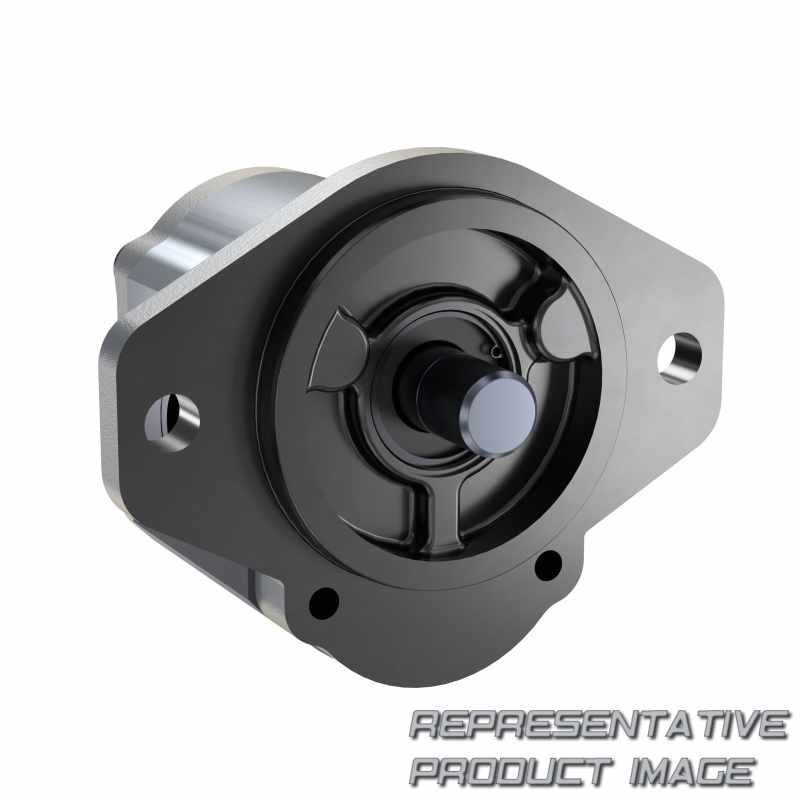

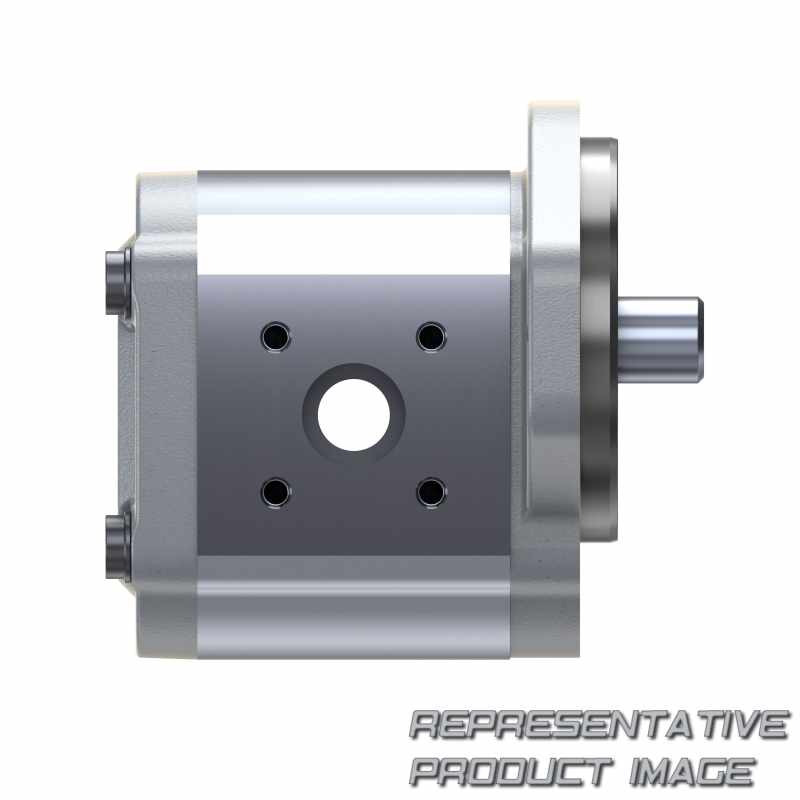

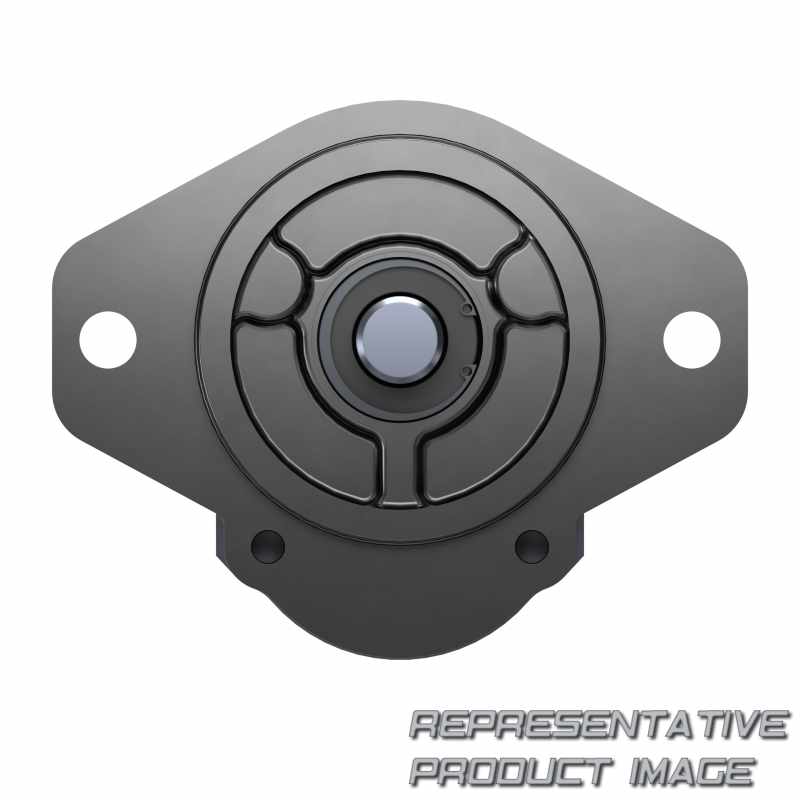

| product | External Gear Unit | ||
| model | Model N (20 ... 36 cm³/rev) | ||
| Version | Corrosion resistant, pinned | ||
| Sealing Material | NBR, shaft seal in FKM |
