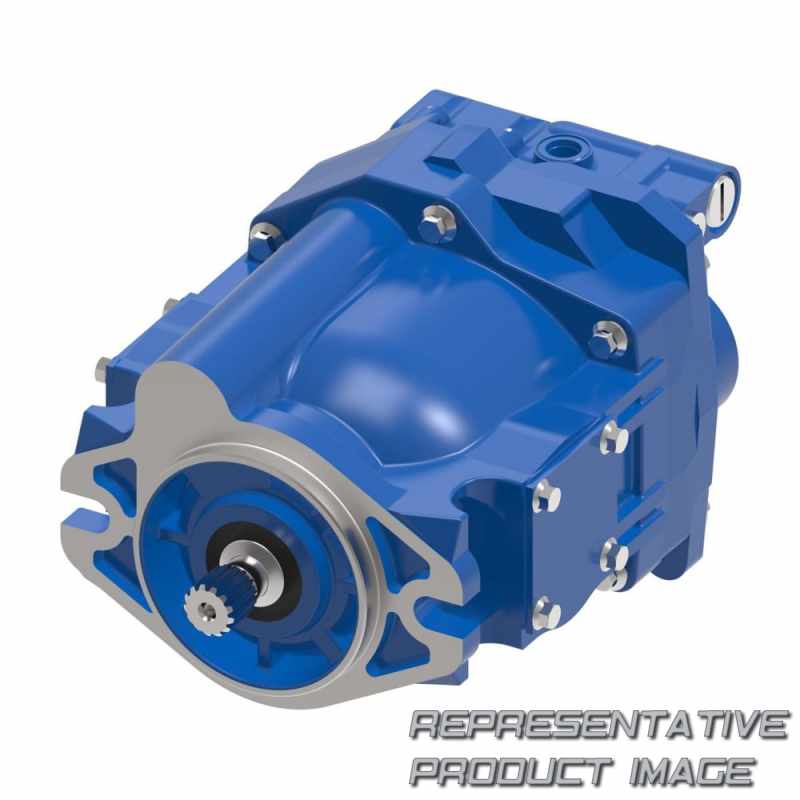

| pumps | pvq20-b2r-se28s-21-c21-1 2 | ||
| displacement | 20 : 21.1 cc/rev (1.29 cir), 210 bar (3000 psi) | ||
| input shaft rotation | r : right-hand rotation (cw) | ||
| ports - type and location | -se : standard - inch o-ring boss, 1.625" inlet and outlet, end port | ||
| pump design number | -21 : 221 | ||
| control options | without adjustable maximum displacement stop (standard) | ||
| special features | none |
| Series | pvq : inline piston pump, variable volume, quiet series | ||
| Mounting flange | -b2 : flange sae j744 101-2 (sae-b) | ||
| thru-drive without coupling | no thru-drive | ||
| Seals | s : buna n, standard | ||
| control type | -c21 : pressure compenstor 210 bar | ||
| control design | -12 : o-ring seal design | ||
| shafts - input | 28 |
