| control special features | a : bleed down orifice | ||
| auxiliary mounting & output shaft | 00 : no auxiliary mounting or output shaft | ||
| special features | 00 : no special features | ||
| customer & unit identification | 0 : none - mark assembly number, complete model code and build date code on plate | ||
| front mounting & input shaft | 08 | ||
| drain port size & location | 1 : .875-14 unf-2b sae o-ring port - top (d1) bottom plugged (d2) | ||
| controller type | h : adjustable pressure and flow compensator | ||
| flow comp. setting or unload vlv standby | 11 : 9.65-12.41 bar [140-180 lbf/in2] | ||

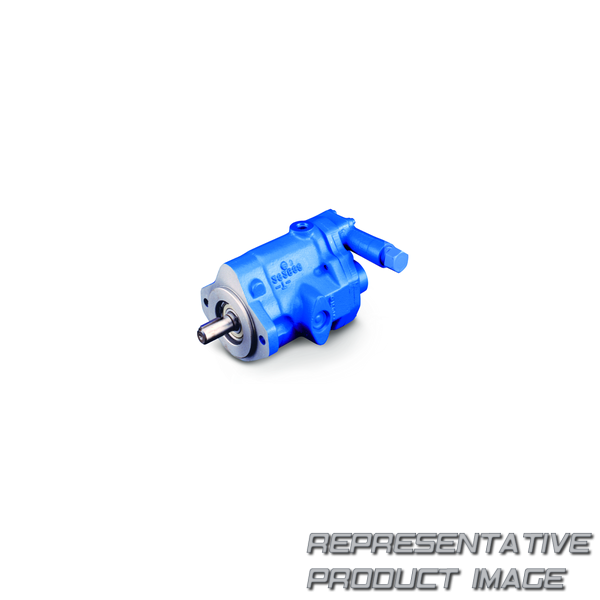

| pumps | pvq40ar08aa10h211100a400 100cd0a | ||
| displacement | q40a : 41,0 cm3/r [2.50 in3/r] |
| maximum displacement option | 4 : displacement limited to 20.4 cm3/r [1.25 in3/r] | ||
| shaft seals | 1 : standard shaft seal (fluorocarbon) | ||
| paint | cd : blue primer | ||
| design code | a : first design | ||
| main ports location & size | aa : side ports suction - 1.875-12 un-2b sae o-ring port pressure - 1.3125-12 un-2b sae o-ring port | ||
| diagnostic pressure port | 0 : no diagnostic pressure port | ||
| pressure comp.-unloading valve setting | 21 : 203.4-210.3 bar [2950-3050 lbf/in2] | ||
| secondary compensator setting | 00 : no secondary compensator setting | ||
| code title | pv : open circuit piston pump | ||
| input shaft rotation | r : right-hand rotation (cw) |
