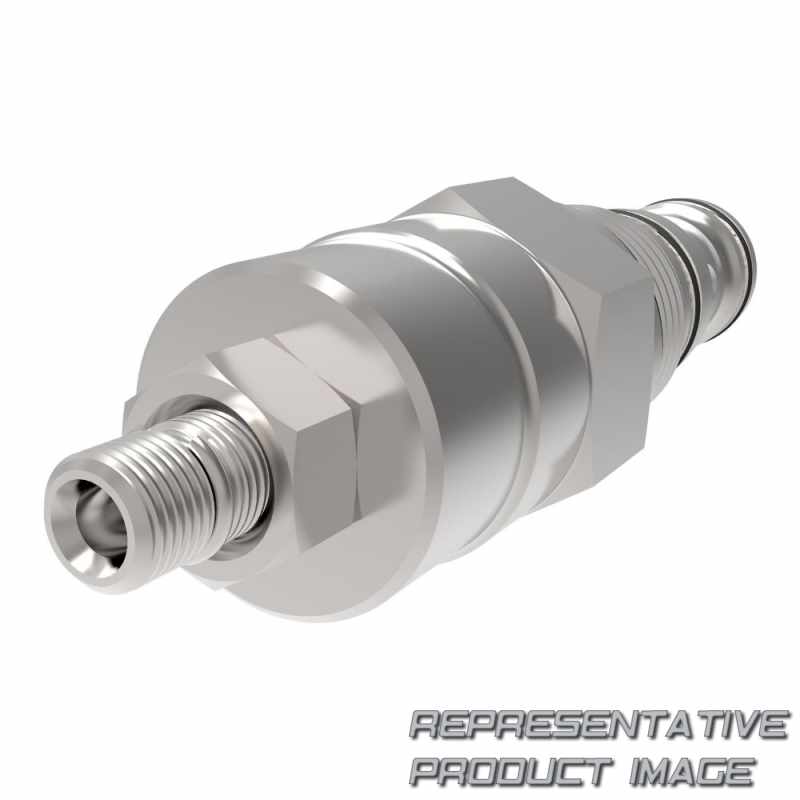

| screw-in cartridge valves | cbv2-12-s-0-a-30/-a counterbalance cart 10:1 | ||
| pilot ratio | 2 : 10;1 | ||
| Seal | buna - n | ||
| valve body | -0 : no body, cartridge only | ||
| free flow crack pressure | -a : 1.4 bar (20 psi) (standard) | ||
| pressure setting | any : none |
| load controls | cbv : counterbalance, 3-ported - 350 bar (5000 lbf/in2) | ||
| Size | -12 : 12, max flow - 114 l/min (30 gpm) | ||
| adjustment option | -s : screw with locknut | ||
| housing port size | none | ||
| pressure range | -30/ : 59 - 210 bar (850 - 3000 psi) | ||
| special feature | none |
