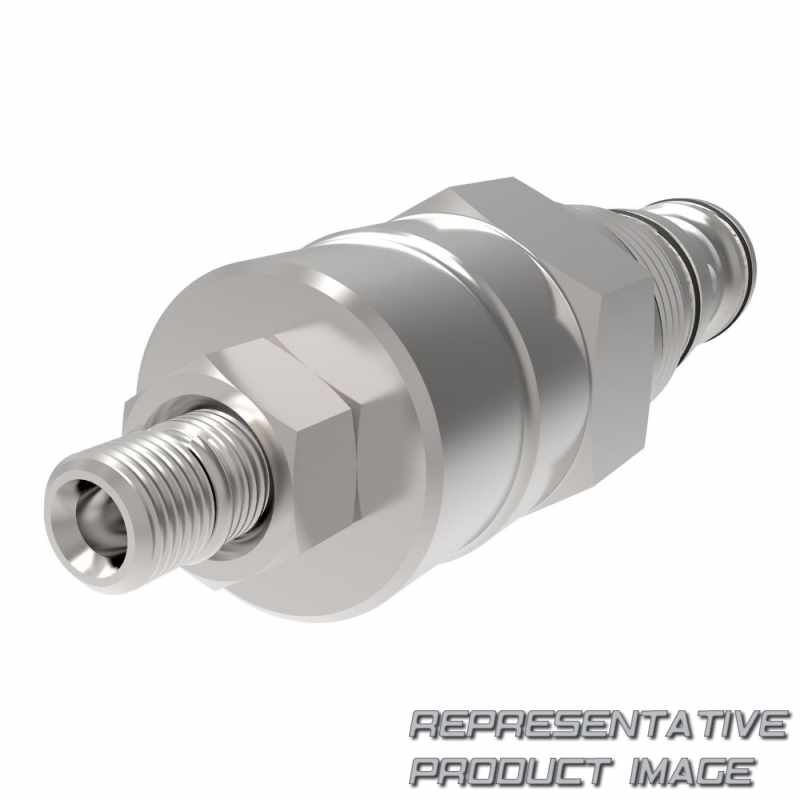

| screw-in cartridge valves | cbv1-10-s-0-b-50/ counterbalance cart 4:1 | ||
| pilot ratio | 1 : 4;1 | ||
| Seal | buna - n | ||
| valve body | -0 : no body, cartridge only | ||
| free flow crack pressure | -b : 0.28 bar (4 psi) (anti cavitation) | ||
| pressure setting | any : none |
| load controls | cbv : counterbalance, 3-ported - 350 bar (5000 lbf/in2) | ||
| Size | -10 : 10, max flow - 60 l/min (15 gpm) | ||
| adjustment option | -s : screw with locknut | ||
| housing port size | none | ||
| pressure range | -50/ : 186 - 350 bar (2700 - 5000 psi) | ||
| special feature | none |
