FESTO VZBC
27 Products

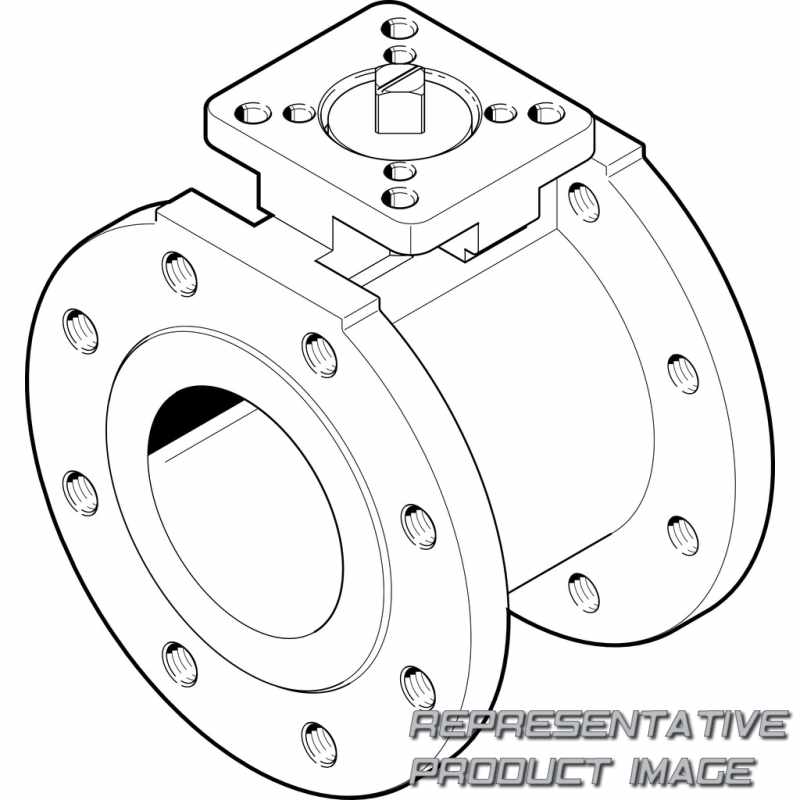

Discover all the available configurations for the FESTO VZBC product series Ball valve. Find the right product by filtering with Nominal diameter DN, Nominal pressure [bar], Flanged connection, Drive, Torque [Nm], Swivel direction, Nominal swivel angle [°], Spring ID and End-position adjustment.
VZBC Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| VZBC | VZBC- -F-F- -22- -V4-V4-T | Ball valve |
Typecode for Catalog Number VZBC,
VZBC- -F-F- -22- -V4-V4-T
| 001 | Series |
|---|---|
| VZBC | Ball valve |
| 002 | Nominal diameter DN |
| 15 | 15 mm |
| 20 | 20 mm |
| 25 | 25 mm |
| 32 | 32 mm |
| 40 | 40 mm |
| 50 | 50 mm |
| 65 | 65 mm |
| 80 | 80 mm |
| 100 | 100 mm |
| 003 | Process valve connection type 1 |
| F | Pipe fitting to DIN 2633/DIN 2501 |
| 004 | Process valve connection type 2 |
| F | Pipe fitting to DIN 2633/DIN 2501 |
| 005 | Nominal pressure [bar] |
| 16 | 16 |
| 40 | 40 |
| 006 | Valve function |
| 22 | 2/2-way |
| 007 | Flanged connection |
| F0304 | Hole pattern 03 and 04 |
| F0405 | Hole pattern 04 and 05 |
| F0507 | Hole pattern 05 and 07 |
| F07 | Hole pattern 07 |
| F0710 | Hole pattern 07 and 10 |
| 008 | Housing material |
| V4 | Stainless steel |
| 009 | Shut-off element material |
| V4 | Stainless steel |
| 010 | Sealant |
|---|---|
| T | PTFE |
| 011 | Drive |
| None | |

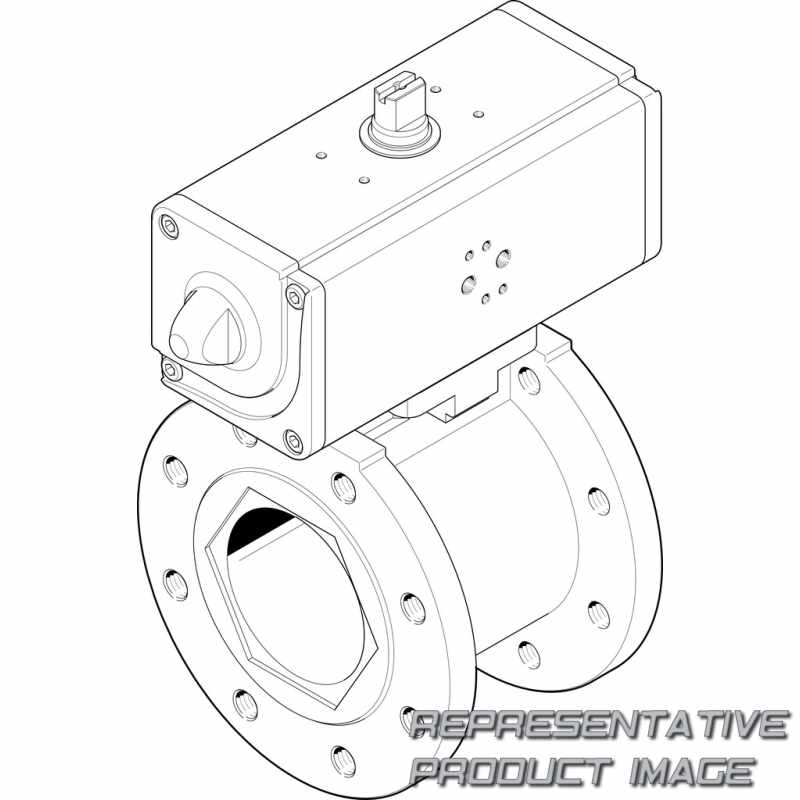

| PP | DAPS, double-acting |

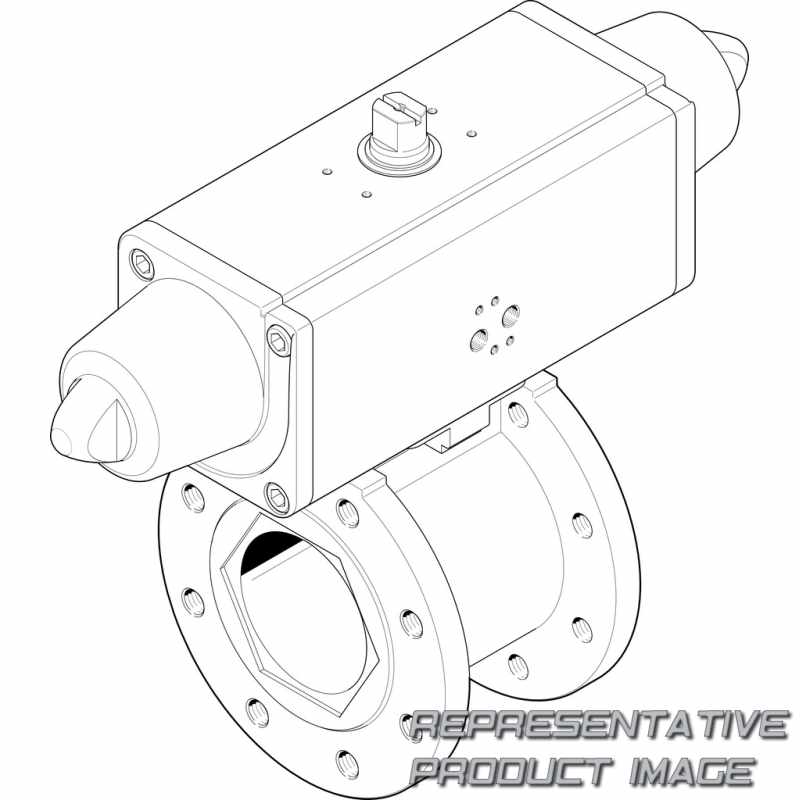

| PS | DAPS, single-acting |
| 012 | Torque [Nm] |
| None | |
| 15 | 15 |
| 30 | 30 |
| 53 | 53 |
| 60 | 60 |
| 90 | 90 |
| 106 | 106 |
| 180 | 180 |
| 240 | 240 |
| 013 | Swivel direction |
| None | |
| R | Right |
| 014 | Nominal swivel angle [°] |
| None | |
| 90 | 90 |
| 015 | Spring ID |
| None | |
| 4 | 4 |
| 016 | End-position adjustment |
| None | |
| C | Closed |
