FESTO VZBA
114 Products
Discover all the available configurations for the FESTO VZBA product series Ball valve. Find the right product by filtering with Nominal diameter DN, Process valve connection type 1, Process valve connection type 2, Process valve connection type 3, Design type, Valve function, Flanged connection, Drive, Torque [Nm], Swivel direction, Nominal swivel angle [°], Spring ID and End-position adjustment.
VZBA Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|

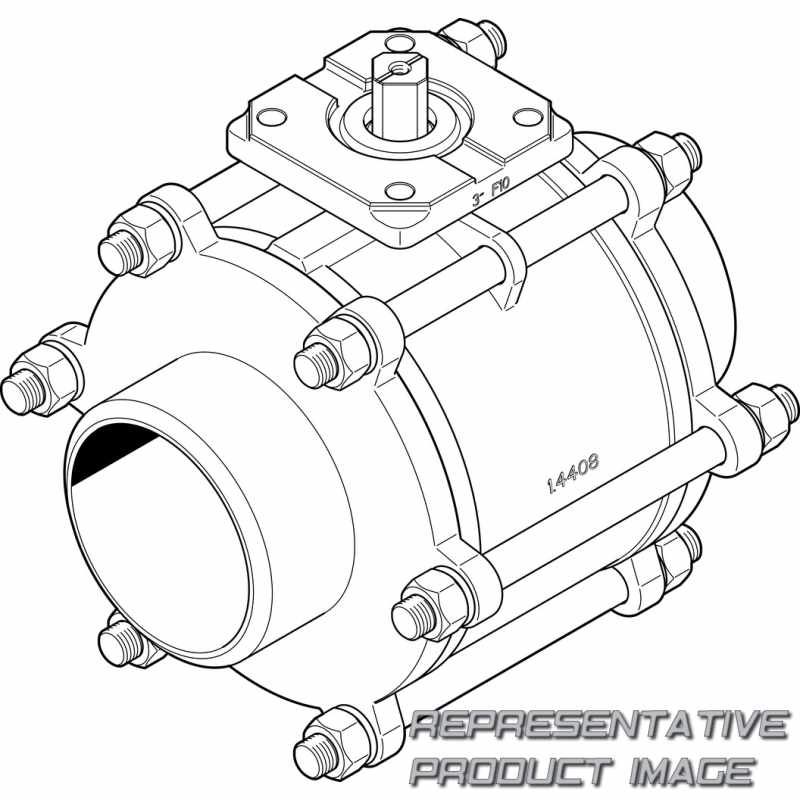

| VZBA | VZBA- - - -63- - -V4-V4-T | Ball valve |
Typecode for Catalog Number VZBA,
VZBA- - - -63- - -V4-V4-T
| 001 | Series |
|---|---|
| VZBA | Ball valve |
| 002 | Nominal diameter DN |
| 1/4\" | 1/4\" |
| 1/4 | 1/4\" |
| 3/8\" | 3/8\" |
| 3/8 | 3/8\" |
| 1/2\" | 1/2\" |
| 1/2 | 1/2\" |
| 3/4\" | 3/4\" |
| 3/4 | 3/4\" |
| 1 | 1\" |
| 1\" | 1\" |
| 11/4\" | 1 1/4\" |
| 11/4 | 1 1/4\" |
| 11/2\" | 1 1/2\" |
| 11/2 | 1 1/2\" |
| 2 | 2\" |
| 2\" | 2\" |
| 21/2\" | 2 1/2\" |
| 21/2 | 2 1/2\" |
| 3 | 3\" |
| 3\" | 3\" |
| 4 | 4\" |
| 4\" | 4\" |
| 003 | Process valve connection type 1 |
| G | Rp female thread |
| W | Suitable for welding |
| 004 | Process valve connection type 2 |
| G | G female thread |
| W | Suitable for welding |
| 005 | Process valve connection type 3 |
| None | |
| G | G female thread |
| 006 | Nominal pressure [bar] |
| 63 | 63 |
| 007 | Design type |
| Standard | |
| T | Three-part |
| 008 | Valve function |
| 22 | 2/2-way |
| 32L | 3/2-way, L-bore |
| 32T | 3/2-way, T-bore |
| 009 | Flanged connection |
|---|---|
| F0304 | Hole pattern 03 and 04 |
| F0405 | Hole pattern 04 and 05 |
| F0507 | Hole pattern 05 and 07 |
| F0710 | Hole pattern 07 and 10 |
| F10 | Hole pattern 10 |
| 010 | Housing material |
| V4 | Stainless steel |
| 011 | Shut-off element material |
| V4 | Stainless steel |
| 012 | Sealant |
| T | PTFE |
| 013 | Drive |
| None | |

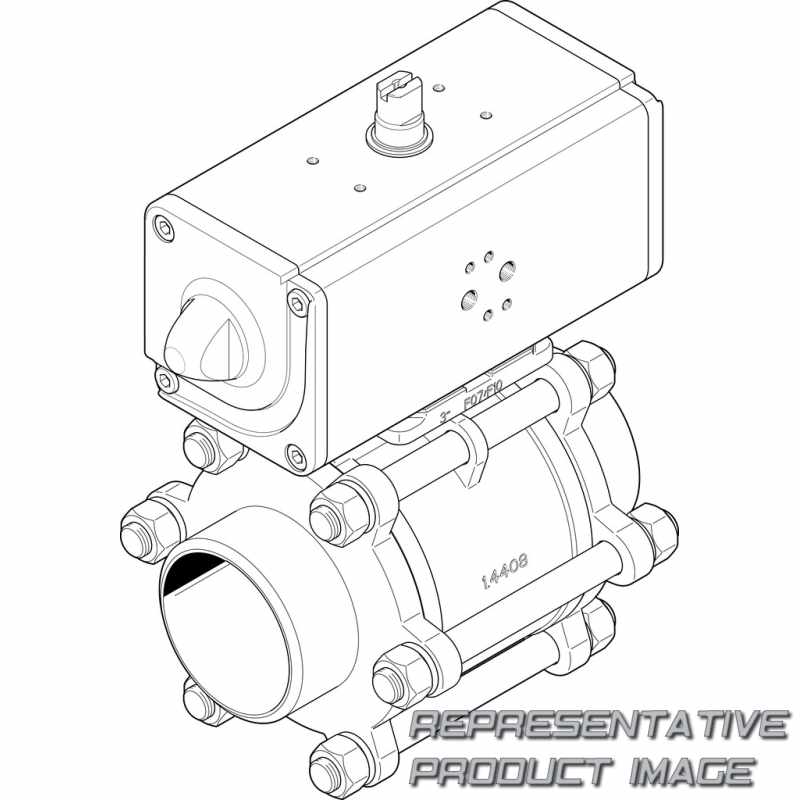

| PP | DAPS, double-acting |

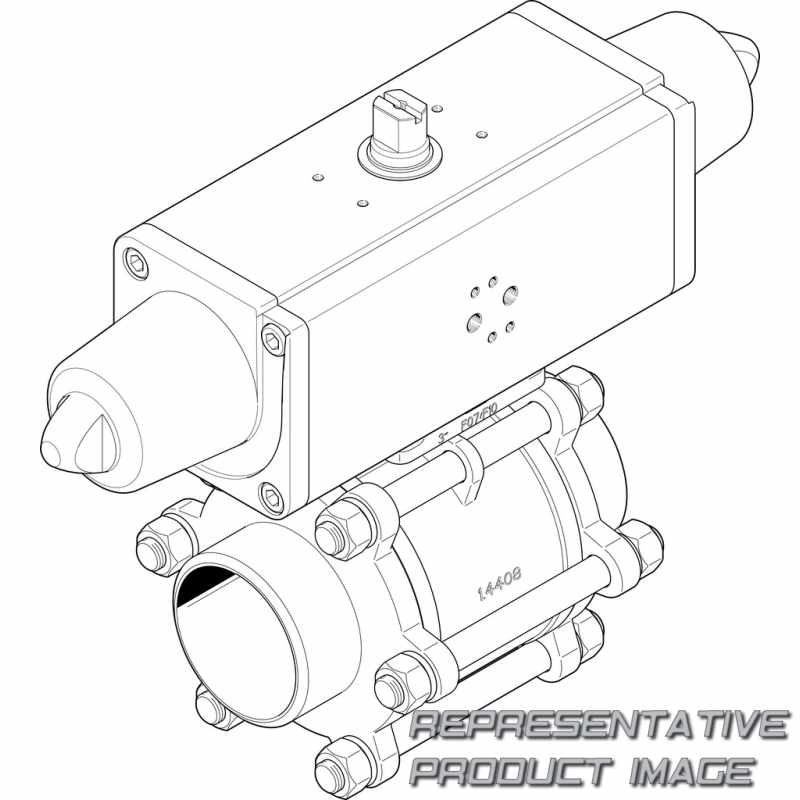

| PS | DAPS, single-acting |
| 014 | Torque [Nm] |
| None | |
| 15 | 15 |
| 30 | 30 |
| 53 | 53 |
| 60 | 60 |
| 90 | 90 |
| 106 | 106 |
| 120 | 120 |
| 180 | 180 |
| 240 | 240 |
| 015 | Swivel direction |
| None | |
| R | Right |
| 016 | Nominal swivel angle [°] |
| None | |
| 90 | 90 |
| 017 | Spring ID |
| None | |
| 4 | 4 |
| 018 | End-position adjustment |
| None | |
| C | Closed |
