FESTO SOPA
28 Products
Discover all the available configurations for the FESTO SOPA product series Air gap sensor for contact and distance monitoring with LCD display. Find the right product by filtering with Modules, Manual override control module, Type of mounting, Electrical output 1 and Electrical output 2.
SOPA Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| SOPA | SOPA- -R1- -Q6- -M12 | Air gap sensor for contact and distance monitoring with LCD display |
Typecode for Catalog Number SOPA,
SOPA- -R1- -Q6- -M12
| 001 | Series |
|---|---|
| SOPA | Air gap sensor for contact and distance monitoring with LCD display |
| 002 | Modules |

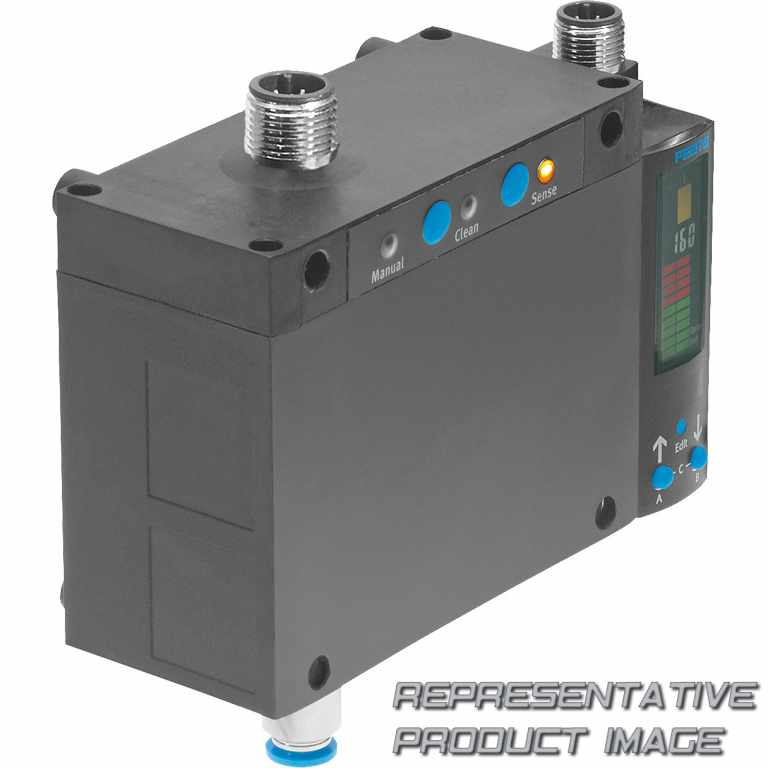

| CM1 | Control module with a sensor module |

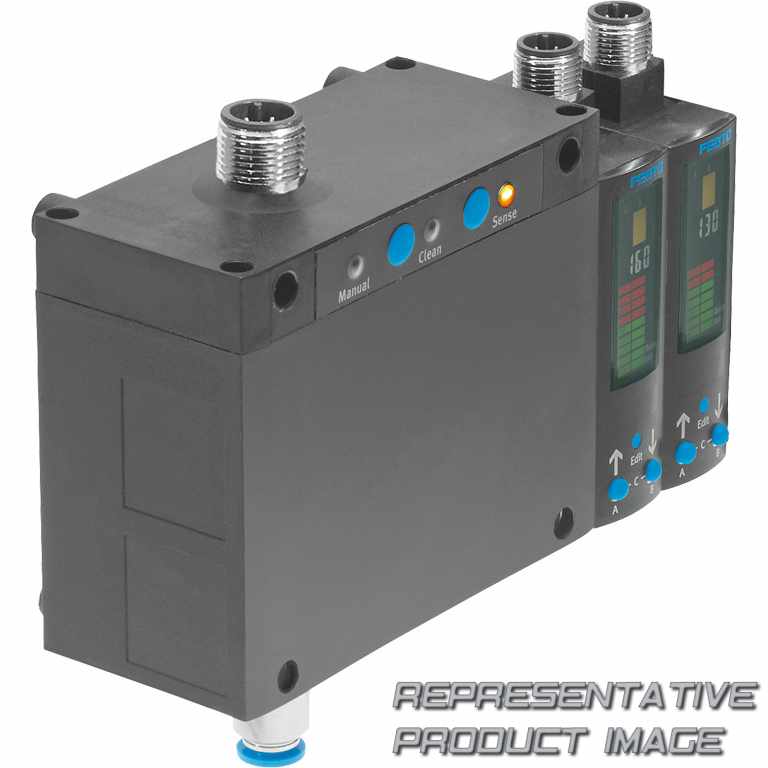

| CM2 | Control module with two sensor modules, pneumatically linked |

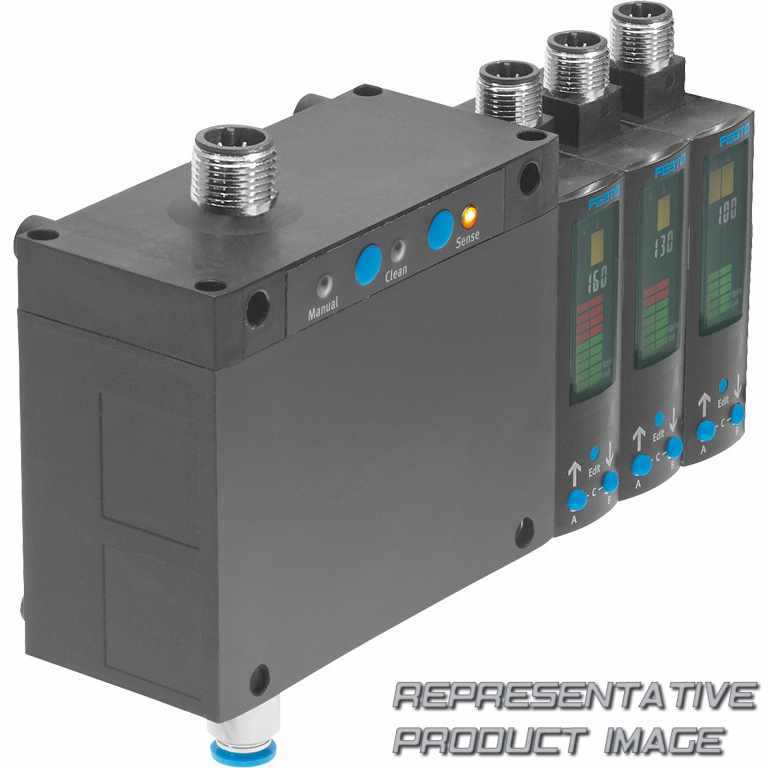

| CM3 | Control module with three sensor modules, pneumatically linked |

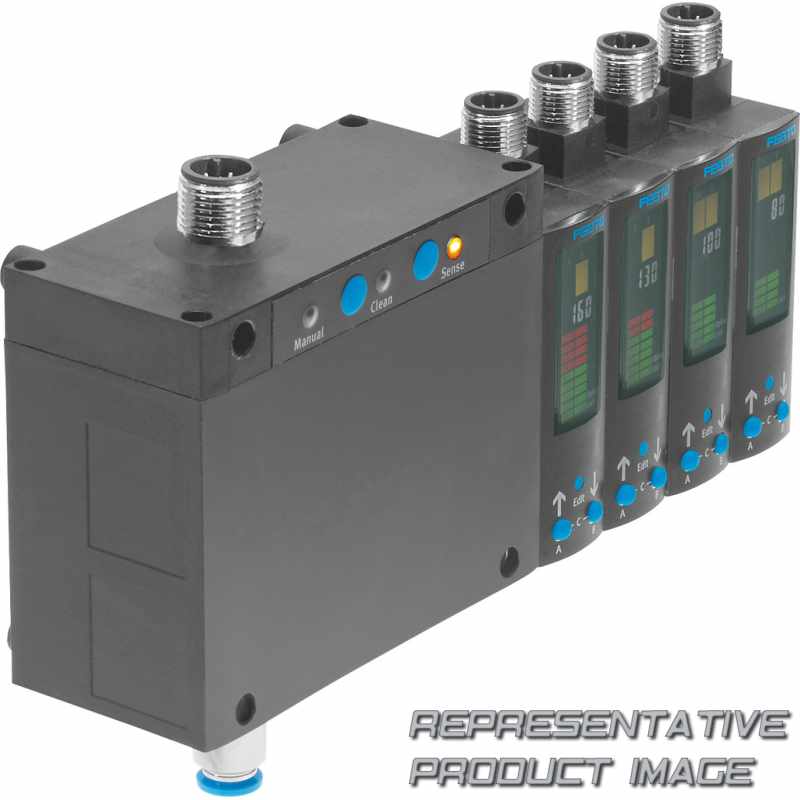

| CM4 | Control module with four sensor modules, pneumatically linked |

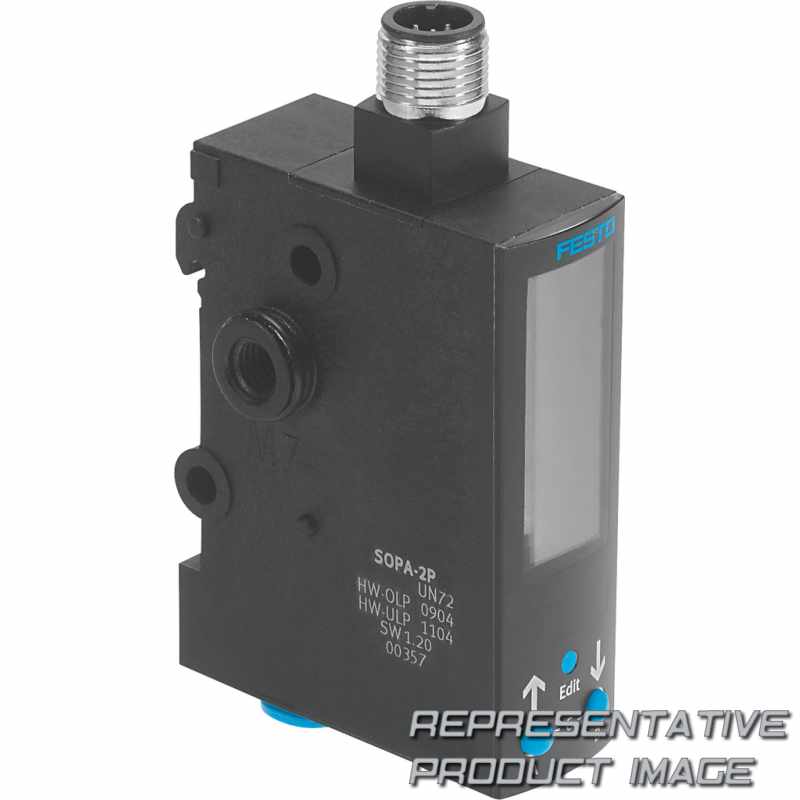

| M1 | Sensor module |
| 003 | Manual override control module |
| None | |
| H | With |
| 004 | Sensing range |
| R1 | 20 ... 200 µm |
| 005 | Type of mounting |
| H | H-rail mounting |
| W | Wall mounting |
| 006 | Pneumatic connection |
| Q6 | Push-in connector 6 mm |
| 007 | Electrical output 1 |
|---|---|
| 2N | 2x NPN |
| 2P | 2x PNP |
| PNLK | PNP or NPN or IO-Link® |
| 008 | Electrical output 2 |
| None | |
| VB | 0 ... 10 V or 1 ... 5 V |
| A | 4 ... 20 mA |
| 009 | Electrical connection |
| M12 | Plug M12, A-coded |
| 010 | Electrical accessories |
| None | |
| E1 | Straight socket, cable 2.5 m |
| E2 | Straight socket, cable 5 m |
| E3 | Angled socket, cable 2.5 m |
| E4 | Angled socket, cable 5 m |
