FESTO SFAH
45 Products
Discover all the available configurations for the FESTO SFAH product series Flow sensor. Find the right product by filtering with Flow measuring range, Flow rate input, Pneumatic connection, Thread type, Outlet orientation and Electrical connection.
SFAH Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| SFAH | SFAH- - - - -PNLK-PNVBA- | Flow sensor |
Typecode for Catalog Number SFAH,
SFAH- - - - -PNLK-PNVBA-
| 001 | Series |
|---|---|
| SFAH | Flow sensor |
| 002 | Flow measuring range |
| 0.1 | Max. 0.1 l/min |
| 0.5 | Max. 0.5 l/min |
| 1 | Max. 1 l/min |
| 5 | Max. 5 l/min |
| 10 | Max. 10 l/min |
| 50 | Max. 50 l/min |
| 100 | Max. 100 l/min |
| 200 | Max. 200 l/min |
| 003 | Flow rate input |
| B | Bidirectional |
| U | Unidirectional |
| 004 | Pneumatic connection |

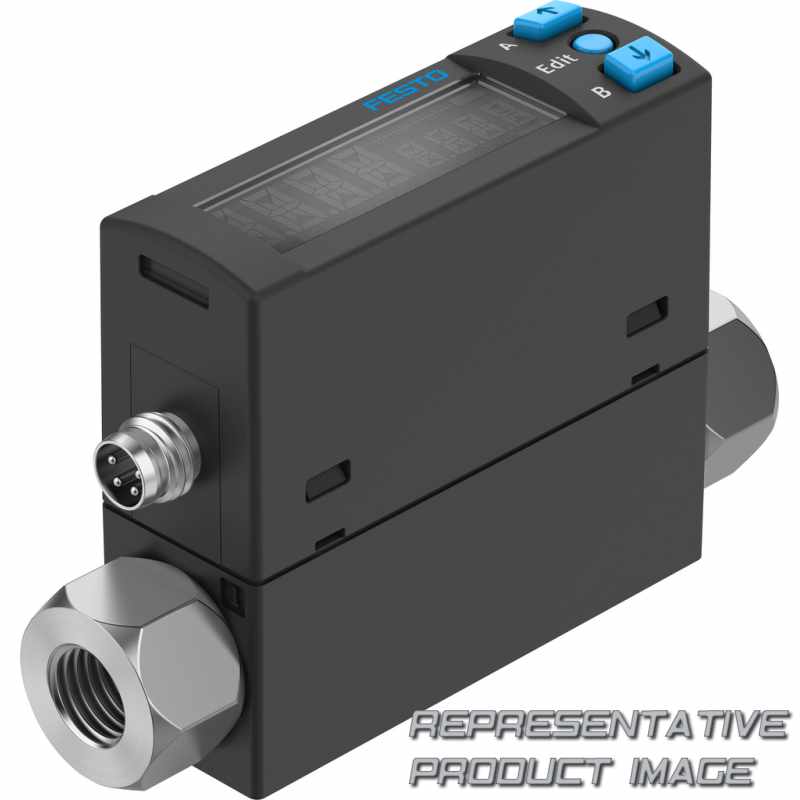

| G18 | G1/8 |
| G14 | G1/4 |

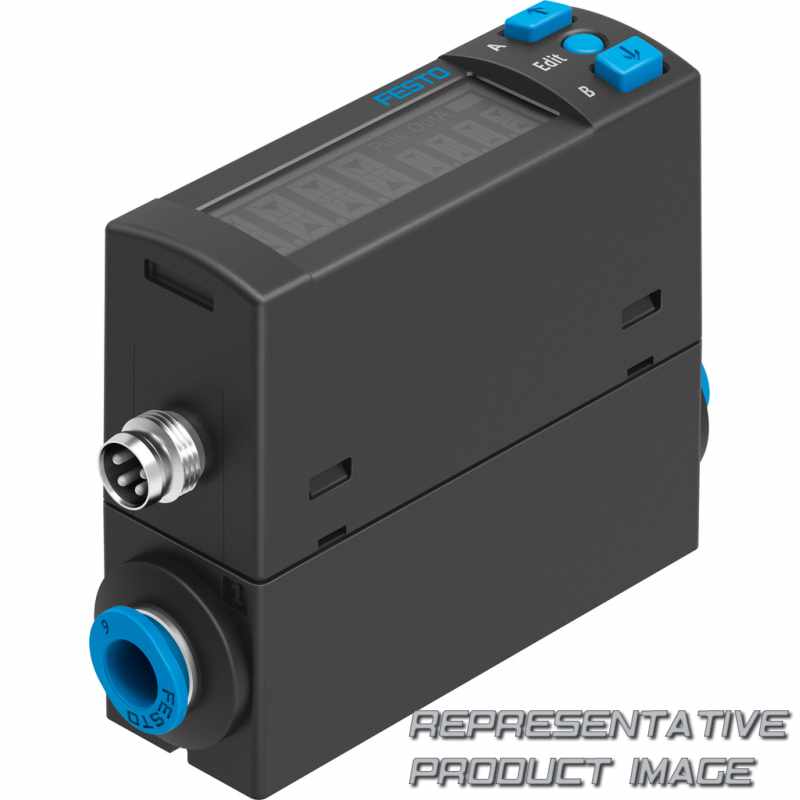

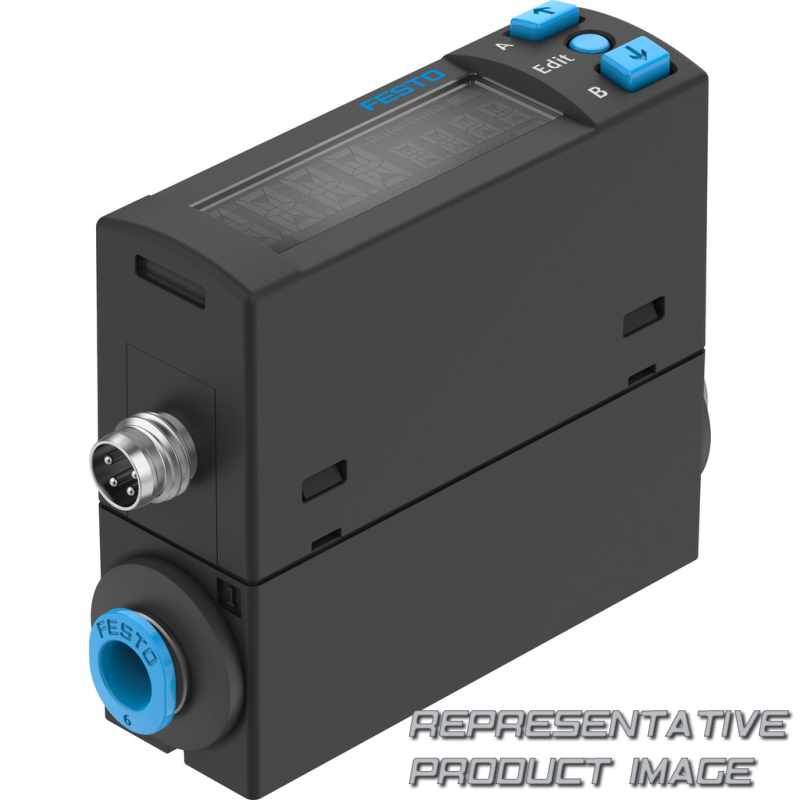

| Q4 | Push-in connector 4 mm |
| Q6 | Push-in connector 6 mm |
| Q8 | Push-in connector 8 mm |
| 005 | Thread type |
| None | |
| F | Female |
| 006 | Outlet orientation |
| S | Straight |
| AR | Angled, adjustable |
| 007 | Electrical output 1 |
|---|---|
| PNLK | PNP/NPN/IO-Link |
| 008 | Electrical output 2 |
| PNVBA | PNP or NPN or 0 ... 10 V or 1 ... 5 V or 4 ... 20 mA |
| 009 | Electrical connection |

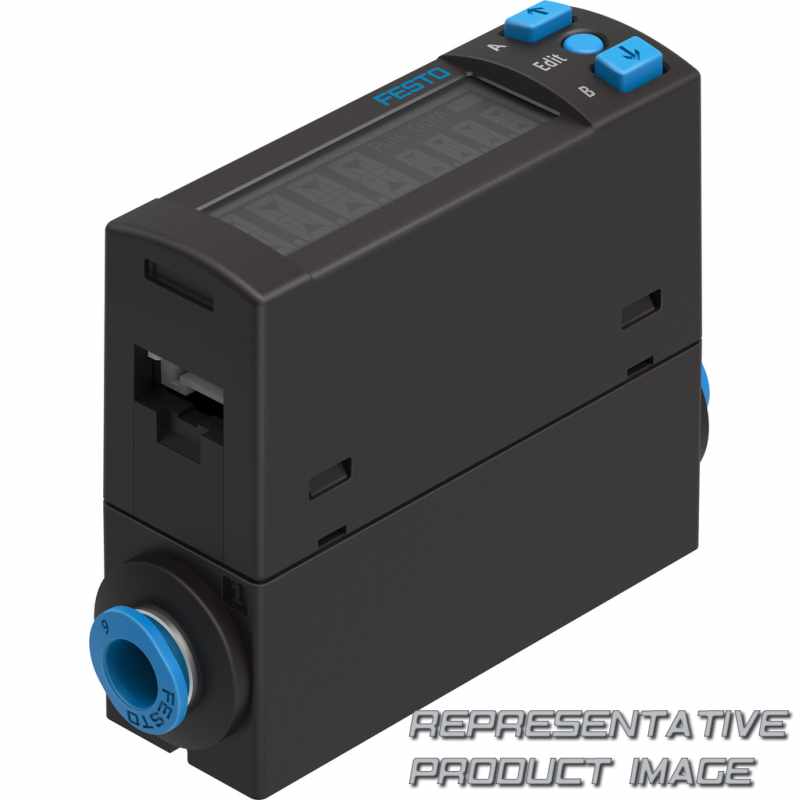

| L1 | Plug type L1 |
| M8 | Plug M8, A-coded |
| 010 | Mounting accessories |
| None | |
| H | H-rail mounting |
| FP | Front panel mounting kit |
| W | Wall mounting |
| 011 | Electrical accessories |
| None | |
| 2.5A | Angled socket, cable 2.5 m |
| 2.5S | Straight socket, cable 2.5 m |
| 5A | Angled socket, cable 5 m |
| 5S | Straight socket, cable 5 m |
| 012 | Protective devices |
| None | |
| G | Protective hood |
| 013 | Certifi cate |
| None | |
| T | Test report |
