FESTO SDE3
54 Products

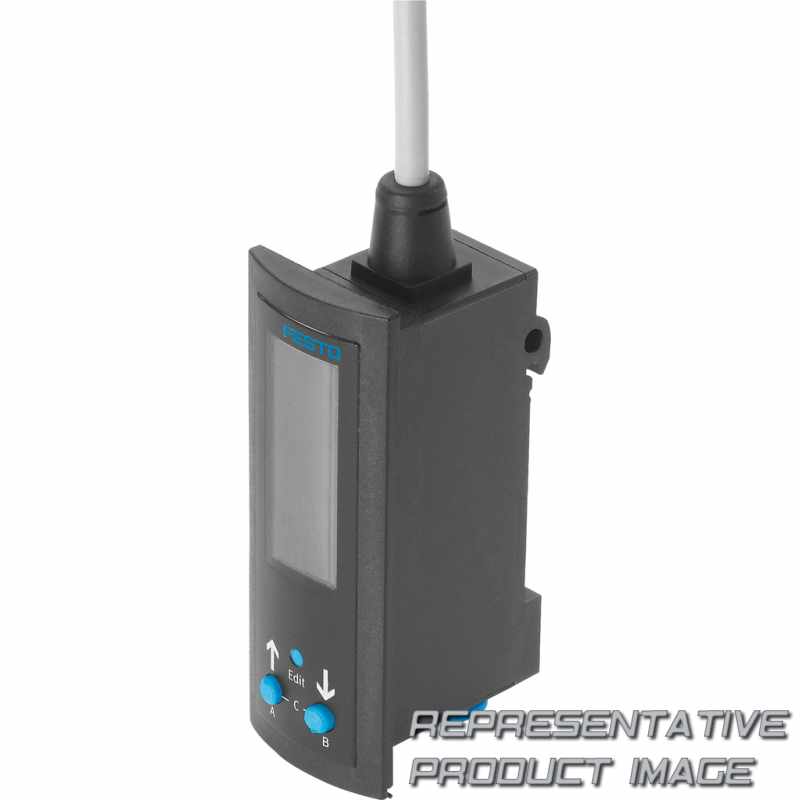

Discover all the available configurations for the FESTO SDE3 product series Piezoresistive pressure sensor with display. Find the right product by filtering with Pressure measuring range, Pressure inlet, Display, Mounting/pneumatic connection, Electrical output, Electrical connection, EU certification and Electrical accessories.
SDE3 Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| SDE3 | SDE3- - - - - - | Piezoresistive pressure sensor with display |
Typecode for Catalog Number SDE3,
SDE3- - - - - -
| 001 | Series |
|---|---|
| SDE3 | Piezoresistive pressure sensor with display |
| 002 | Pressure measuring range |
| V1 | -1 ... 0 bar |
| B2 | -1 ... 1 bar |
| D2 | 0 ... 2 bar |
| D6 | 0 ... 6 bar |
| D10 | 0 ... 10 bar |
| 003 | Pressure inlet |
| S | 1 x relative pressure |
| D | 2 x relative pressure, independent |
| M | 1x relative pressure, 1x differential pressure |
| Z | 1 x differential pressure |
| 004 | Display |
| B | Values in bar |
| H | Values in inches of mercury |
| K | Values in kPa |
| P | Values in psi |
| W | Values in inches of water |
| 005 | Mounting/pneumatic connection |
| HQ4 | H-rail mounting, push-in connector 4 mm |
| HT532 | H-rail mounting, push-in connector 5/32“ |
| WQ4 | Wall mounting, push-in connector 4 mm |
| WT532 | Wall mounting, push-in connector 5/32“ |
| FQ4 | Front panel mounting, push-in connector 4 mm |
| FT532 | Front panel mounting, push-in connector 5/32“ |
| 006 | Electrical output |
|---|---|
| 2P | 2 switching outputs PNP |
| 2N | 2 switching outputs NPN |
| 007 | Electrical connection |
| M8 | Plug M8x1 |
| M12 | Plug M12, A-coded |
| K | Cable |
| 008 | EU certification |
| None | |
| EX2 | II 3GD to EU Explosion Protection Directive (ATEX) |
| 009 | Electrical accessories |
| None | |
| G | Connecting cable, straight socket, 2.5 m |
| W | Connecting cable, angled plug socket, 2.5 m |
| G5 | Connecting cable, straight socket, 5 m |
| W5 | Connecting cable, angled plug socket, 5 m |
