MS Festo

FESTO MS

1306 Products

Discover all the available configurations for the FESTO MS product series MS series, MS series, MS series, MS series, etc. Find the right product by filtering with Series, Size, Function, Pneumatic connection, Additional function, Pressure regulation range, Performance Level, Flow cartridge, Grade of filtration [μm], Filter design, Supply voltage, Purge air, Filter version, Bowl type, Connection technology, Bowl, Condensate drain, Flow rate, Pressure switch, Valve function, Silencer, Regulator type, Range of applications, Filter change sensing, Pressure gauge alternatives, Alternative mounting position and Alternative pressure gauge scale.

MS Type Codes

Series	Catalog Number Format	Description
MS	MS-6-LFR- - - - -	MS series
MS	MS-9-LFR- - - -U-	MS series
MS	MS-4-LFR- - - - -	MS series
MS	MS-4-LRB- - MS-6-LRB- -	MS series MS series
MS	MS-6-SV- - -	MS series
MS	MS-4-LR- - MS-6-LR- -	MS series MS series
MS	MS-9-LR- - -	MS series
MS	MS-12-LFR- - - -U- -LD	MS series
MS	MS-6-LFM- - - -	MS series
MS	MS-6-LRPB- -	MS series
MS	MS-4-FRM- MS-6-FRM-	MS series MS-series
MS	MS-6-LRP- -	MS series
MS	MS-9-EE- -	MS series
MS	MS-9-LFM- - -U-	MS series
MS	MS-4-EE- - MS-6-EE- -	MS series MS-series
MS	MS-4-EM1- MS-6-EM1-	MS series MS-series
MS	MS-9-SV- -C- -	MS series
MS	MS- -LFR- -D6- -P- - -B	MS series
MS	MS-4-DE- - MS-6-DE- -	MS series MS series
MS	MS-4-LF- - - -	MS series
MS	MS-4-LFM- - - -	MS series
MS	MS-6-LF- - - -	MS series
MS	MS-6-LFX- -	MS series
MS	MS-6--LWS- -U-	MS series
MS	MS-9-EM-	MS series
MS	MS-9-FRM-	MS series
MS	MS-12-EE- -	MS series
MS	MS-12-LFM- - -U-	MS series
MS	MS-12-LR- -	MS series
MS	MS-4-DL- MS-6-DL-	MS series MS series
MS	MS-4-LDM1- -	MS series
MS	MS-9-LF- - -U-	MS series
MS	MS-9-LWS- -U-	MS series
MS	MS-12-DE- -	MS series
MS	MS-12-DL-	MS series
MS	MS-12-EM-	MS series
MS	MS-12-LF- - -U-	MS series
MS	MS-4-LFX- - MS-4-LOE- - MS-6-LOE- -	MS series MS series MS-series
MS	MS- -LR- -D6- -B	MS series
MS	MS-12-LWS- -U-	MS series
MS	MS-9-LFX- -U MS-9-LOE- -U	MS series MS series
MS	MS-12-LFX- -U MS-12-LOE- -U	MS series MS series
MS	MS- -EDE- -V24-F1A-B MS- -EE- -V24-F1A-B	MS series MS series
MS	MS-12-FRM-	MS series
Show more records

Typecode for Catalog Number MS, MS-6-LFR- - - - -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
LFR	Filter regulator
004	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Pressure regulation range
D5	0.3 ... 4 bar
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
006	Filter design
C	5 µm
E	40 µm
007	Bowl
R	Plastic bowl with plastic bowl guard
U	Metal bowl
008	Condensate drain
M	Manually
H	Semi-automatic
V	Automatic
E2	External fully automatic condensate drain, electric, 110 V AC, terminals
E3	External fully automatic condensate drain, electric, 230 V AC, terminals
E4	External fully automatic condensate drain, electric, 24 V DC, ter- minals
009	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge

010	Alternative pressure gauge scale
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
RG	Integrated pressure gauge, red/green scale
VS	Cover plate
	MS pressure gauge
PSI	psi
MPA	MPa
011	Secondary exhausting
	With secondary exhausting
OS	Without secondary exhaust
012	Rotary knob alternative
	None
LD	Long rotary knob
013	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
014	Type of mounting
	Without mounting bracket
WR	Mounting bracket with knurled nut on regulator knob
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
015	EU certification
	None
EX4	II 2GD
016	UL certification
	None
UL1	cULus ordinary location for Canada and USA
017	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-LFR- - - -U-

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
LFR	Filter regulator
004	Pneumatic connection
3/4	Female thread G3/4
G1	G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
N1	1 NPT
AQR	Sub-base NPT1/2
AQS	Sub-base NPT3/4
AQT	Sub-base NPT1
AQU	Sub-base NPT11/4
AQV	Sub-base NPT11/2
G	Module without connecting thread, without sub-base
NG	Module without connecting thread, without sub-base (inch)
3/4”	Female thread NPT 3/4
005	Pressure regulation range
D5	0.3 ... 4 bar
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
006	Grade of filtration [μm]
C	5 µm
E	40 µm
007	Bowl
U	Metal bowl
008	Condensate drain
M	Manually
H	Semi-automatic
V	Automatic
E2	External fully automatic condensate drain, electric, 110 V AC, termi- nals
E3	External fully automatic condensate drain, electric, 230 V AC, termi- nals
E4	External fully automatic condensate drain, electric, 24 V DC, terminals
009	Regulator type

010	Pressure gauge alternatives
	Pilot actuated
DI	Directly actuated
	None
AG	MS pressure gauge
VS	Cover plate
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
RG	Integrated pressure gauge, red/green scale
AD7	Pressure sensor with switching display, M8 plug, threshold value comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold value comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window comparator,
	PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
011	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
BAR	bar
MPA	MPa
012	Secondary exhausting
	With secondary exhausting
OS	Without secondary exhaust
013	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
014	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WPB	Mounting bracket for large wall gap
015	EU certification
	None
EX4	II 2GD
016	UL certification
	None
UL1	cULus ordinary location for Canada and USA
017	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-LFR- - - - -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
003	Function
LFR	Filter regulator
004	Pneumatic connection
1/8	Female thread G1/8
1/4	Female thread G1/4
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
005	Pressure regulation range
D5	0.3 ... 4 bar
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
006	Filter design
C	5 µm
E	40 µm
007	Bowl
R	Plastic bowl with plastic bowl guard
U	Metal bowl
008	Condensate drain
M	Manually
H	Semi-automatic
V	Automatic
009	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O

010	Secondary exhausting
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
RG	Integrated pressure gauge, red/green scale
VS	Cover plate
	With secondary exhausting
OS	Without secondary exhaust
011	Rotary knob alternative
	None
LD	Long rotary knob
012	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
013	Type of mounting
	Without mounting bracket
WR	Mounting bracket with knurled nut on regulator knob
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
014	EU certification
	None
EX4	II 2GD
015	UL certification
	None
UL1	cULus ordinary location for Canada and USA
016	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-LRB- - , MS-6-LRB- -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
LRB	Pressure regulator for manifold assembly
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
005	Pressure regulation range
D5	0.3 ... 4 bar
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
006	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
RG	Integrated pressure gauge, red/green scale
VS	Cover plate
007	Alternative pressure gauge scale
	MS pressure gauge
MPA	MPa
PSI	psi
008	Secondary exhausting

009	Rotary knob alternative
	With secondary exhausting
OS	Without secondary exhaust
	None
DM1	Rotary knob pressure gauge, small
DM2	Rotary knob pressure gauge, large
LD	Long rotary knob
010	Alternative mounting position
	None
KD	Rotary knob underneath
011	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
012	Alternative pressure outlet
	None
BC	Angled outlet block QS-6
BD	Angled outlet block QS-8
BE	Angled outlet block QS-10
013	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
WR	Mounting bracket with knurled nut on regulator knob
014	EU certification
	None
EX4	II 2GD
015	UL certification
	None
UL1	cULus ordinary location for Canada and USA
016	Outlet direction
	Pressure output to the rear
Z	Pressure output to the front

Typecode for Catalog Number MS, MS-6-SV- - -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
SV	Soft-start/quick exhaust valve
004	Pneumatic connection
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Performance Level
C	Category 1, 1-channel to ISO 13849-1
D	Category 3, 2-channel to ISO 13849-1
E	Category 4, 2-channel with self-monitoring to ISO 13849-1
006	Supply voltage
10V24P	24 V DC, 10 bar, M12 plug socket adapter (connection pattern to EN 60947-5-2)
10V24	24 V DC, 10 bar, connection pattern to EN 175301
10V24C	24 V DC, 10 bar (connection pattern to EN 175301) without manual override
10V24D	24 V DC, 10 bar, M12 (connection pattern to EN 60947-5-2) without manual override
10V24E	24 V DC, 10 bar, M12 (connection pattern to EN 60947-5-2) without manual override on the pilot actuator. With detenting internal manual override (can only be reset via 24 V).
10V24F	24 V DC, 10 bar, M12 (connection pattern to EN 60947-5-2). Manual override on the pilot actuator non-detenting, internally detenting
ASIS	22 V - 31.6 V DC, AS-i Safety at Work, SPEC3.0 Profi le 7.5.5
007	Connection technology
	None
2OE	2 SMT proximity sensors, 5 m, OE
2M8	2 SMT proximity sensors, 0.3 m, M8
2M12	2 SMT proximity sensors, 0.3 m, M12
008	Extended sensing
	None
S3	Additional SMT proximity sensor; required to achieve Perfor- mance Level “e”; corresponds to the selected connection tech- nology
009	Silencer
	None
S	Silencer

010	Pressure gauge alternatives
SO	Open silencer
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AG	MS pressure gauge
RG	Integrated pressure gauge, red/green scale
011	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
MPA	MPa
012	Multi-pin plug socket
	None
MP1	Multi-pin plug socket, Sub-D, 9-pin, screw terminal, without ca- ble, static enable signals (EN1 = 24 V, EN2 = 24 V)
MP3	Multi-pin plug socket, Sub-D, 9-pin, screw terminal, without ca- ble, static enable signals (EN1 = 0 V, EN2 = 24 V), cross-circuit detection possible
MP5	Multi-pin plug socket, Sub-D, 9-pin, screw terminal, without ca- ble, enable signals static (EN1=0 V, EN2=24 V), galvanic isola- tion of the enable signals from the supply voltage
013	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
014	Tamper protection
	None
MK	Ful
015	UL certification
	None
UL1	cULus ordinary location for Canada and USA
016	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-LR- - , MS-6-LR- -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
LR	Pressure regulator
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Pressure regulation range
D5	0.3 ... 4 bar
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
006	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
RG	Integrated pressure gauge, red/green scale

007	Alternative pressure gauge scale
VS	Cover plate
	MS pressure gauge
MPA	MPa
PSI	psi
008	Secondary exhausting
	With secondary exhausting
OS	Without secondary exhaust
009	Rotary knob alternative
	None
DM1	Rotary knob pressure gauge, small
DM2	Rotary knob pressure gauge, large
LD	Long rotary knob
010	Alternative mounting position
	None
KD	Rotary knob underneath
011	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
012	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WR	Mounting bracket with knurled nut on regulator knob
013	EU certification
	None
EX4	II 2GD
014	UL certification
	None
UL1	cULus ordinary location for Canada and USA
015	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-LR- - -

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
LR	Pressure regulator
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
N3/4	NPT3/4
N1	NPT1
AQR	Sub-base NPT1/2
AQS	Sub-base NPT3/4
AQT	Sub-base NPT1
AQU	Sub-base NPT11/4
AQV	Sub-base NPT11/2
G	Module without connecting thread, without sub-base
NG	Module without connecting thread, without sub-base (inch)
005	Pressure regulation range
D5	0.3 ... 4 bar
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
PO	Max. 16 bar, pneumatically actuated (pressure range deter- mined by pilot regulator)
006	Regulator type
	Pilot actuated
DI	Directly actuated
007	Pressure gauge alternatives
AG	MS pressure gauge
VS	Cover plate
A4	Adapter for EN pressure gauge 1/4, without pressure gauge

008	Alternative pressure gauge scale
RG	Integrated pressure gauge, red/green scale
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
	MS pressure gauge
PSI	psi
MPA	MPa
BAR	bar
009	Secondary exhausting
	With secondary exhausting
OS	Without secondary exhaust
010	Alternative mounting position
	None
KD	Rotary knob underneath
011	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
012	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WPB	Mounting bracket for large wall gap
013	EU certification
	None
EX4	II 2GD
014	UL certification
	None
UL1	cULus ordinary location for Canada and USA
015	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-LFR- - - -U- -LD

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
LFR	Filter regulator
004	Pneumatic connection
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Pressure regulation range
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
006	Filter version
C	5 µm
E	40 µm
007	Bowl
U	Metal bowl
008	Condensate drain
M	Manually
V	Automatic

009	Pressure gauge alternatives
E2	External fully automatic condensate drain, electric, 110 V AC, termi- nals
E3	External fully automatic condensate drain, electric, 230 V AC, termi- nals
E4	External fully automatic condensate drain, electric, 24 V DC, terminals
	None
VS	Cover plate
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
010	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
MPA	MPa
011	Rotary knob
LD	Long rotary knob
012	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
013	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
014	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-6-LFM- - - -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
LFM	Fine and micro filters
004	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Filter design
A	0.01 µm
B	1 µm
006	Bowl type
R	Plastic tray with plastic basket
U	Aluminium
007	Condensate drain
M	Manually
H	Semi-automatic
V	Fully automatic, normally open
VC	Fully automatic, normally closed
E2	External fully automatic condensate drain, electric, 110 V AC, connection terminals

008	Flow rate
E3	External fully automatic condensate drain, electric, 230 V AC, connection terminals
E4	External fully automatic condensate drain, electric, 24 V DC, connection terminals
	Standard
HF	High flow rate
009	Range of applications
	None
HP	Suitable for sealing air and purge air
010	Filter change sensing
	None
DA	Differential pressure display, visual
DN	Filter contamination indicator, M8 plug, NPN, 3-pin
DNI	Filter contamination indicator, M12 plug, NPN, 4-pin, analogue output 4...20 mA
DP	Filter contamination indicator, M8 plug, PNP, 3-pin
DPI	Filter contamination indicator, M12 plug, PNP, 4-pin, analogue output 4...20 mA
011	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
012	EU certification
	None
EX4	II 2GD
013	UL certification
	None
UL1	cULus ordinary location for Canada and USA
014	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-6-LRPB- -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
LRPB	Precision pressure regulator for manifold installation
004	Pneumatic connection
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
005	Pressure regulation range
D2	0.05 ... 0.7 bar
D4	0.05 ... 2.5 bar
D5	0.1 ... 4 bar
D7	0.1 ... 12 bar
PO	Max. 12 bar, pneumatically actuated (pressure range deter- mined by pilot regulator)
006	Pressure gauge alternatives
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A8M	Adapter for EN pressure gauge 1/8, with precision pressure gauge
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®,
	PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
VS	Cover plate
007	Rotary knob alternative

008	Alternative mounting position
	None
LD	Long rotary knob
	None
KD	Rotary knob underneath
009	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
010	Alternative pressure outlet
	None
BD	Angled outlet block QS-8
BE	Angled outlet block QS-10
011	Type of mounting
	Without mounting bracket
WR	Mounting bracket with knurled nut on regulator knob
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
012	EU certification
	None
EX4	II 2GD
013	UL certification
	None
UL1	cULus ordinary location for Canada and USA
014	Outlet direction
	Pressure output to the rear
Z	Pressure output to the front

Typecode for Catalog Number MS, MS-4-FRM- , MS-6-FRM-

001	Series
MS	MS series
MS	MS-series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
FRM	Branching module
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
005	Additional function
	None
I	With integrated non-return function
006	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O

007	Alternative pressure gauge scale
AG	MS pressure gauge
RG	Integrated pressure gauge, red/green scale
	MS pressure gauge
MPA	MPa
PSI	psi
008	Pressure switch
	None
M12	Pressure switch PEV without display, plug socket, round, M12, 4-pin
X	Pressure switch PEV with display, plug socket, EN 175301, type A, cube
Y	Pressure switch PEV without display, plug socket, EN 175301, type A, cube
009	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
010	EU certification
	None
EX4	II 2GD
011	UL certification
	None
UL1	cULus ordinary location for Canada and USA
012	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left
013	Special material properties
	None
F1A	Recommended for production facilities for the manufacture of lithium-ion batteries

Typecode for Catalog Number MS, MS-6-LRP- -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
LRP	Precision pressure regulator
004	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
005	Pressure regulation range
D2	0.05 ... 0.7 bar
D4	0.05 ... 2.5 bar
D5	0.1 ... 4 bar
D7	0.1 ... 12 bar
PO	Max. 12 bar, pneumatically actuated (pressure range deter- mined by pilot regulator)
006	Pressure gauge alternatives
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A8M	Adapter for EN pressure gauge 1/8, with precision pressure gauge
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®,

007	Rotary knob alternative
	PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
VS	Cover plate
	None
LD	Long rotary knob
008	Alternative mounting position
	None
KD	Rotary knob underneath
009	Lockability
	None
AS	Can be locked using accessories
E11	With integrated lock
010	Type of mounting
	Without mounting bracket
WR	Mounting bracket with knurled nut on regulator knob
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
011	EU certification
	None
EX4	II 2GD
012	UL certification
	None
UL1	cULus ordinary location for Canada and USA
013	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-EE- -

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
EE	On/off valve, electric
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
N3/4	Female thread 3/4 NPT
N1	Female thread 1 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
NG	Module without connecting thread, without sub-base (inch)
005	Supply voltage
V110	110 V AC (connection pattern to EN 175301)
V24	24 V DC (connection pattern to EN 175301)
V230	230 V AC (connection pattern to EN 175301)
V24P	24 V DC plug (connection pattern M12 to DESINA)
006	Silencer
	None
S	Silencer

007	Pressure gauge alternatives
	None
AG	MS pressure gauge
VS	Cover plate
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
RG	Integrated pressure gauge, red/green scale
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
008	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
BAR	bar
MPA	MPa
009	Valve function
	Standard
2	2/2-way valve
010	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
011	EU certification
	None
EX2	II 3GD
012	UL certification
	None
UL1	cULus ordinary location for Canada and USA
013	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

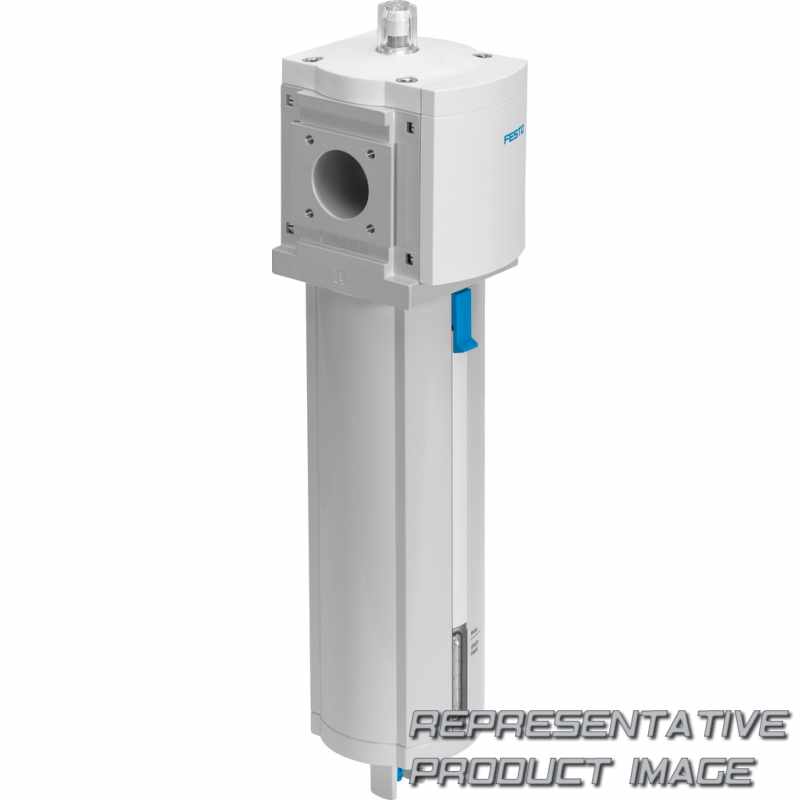

Typecode for Catalog Number MS, MS-9-LFM- - -U-

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
LFM	Fine and micro fi lters
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Sub-base G1 1/4
AGH	Sub-base G1 1/2
N3/4	Female thread 3/4 NPT
N1	Female thread 1 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
005	Grade of filtration [μm]
A	0.01 µm
B	1 µm
006	Bowl type
U	Aluminium
007	Condensate drain
M	Manually
H	Semi-automatic

008	Flow rate
V	Fully automatic, normally open
VC	Fully automatic, normally closed
E2	External fully automatic condensate drain, electric, 110 V AC, terminals
E3	External fully automatic condensate drain, electric, 230 V AC, terminals
E4	External fully automatic condensate drain, electric, 24 V DC, ter- minals
	Standard
HF	High ﬂ ow rate
009	Filter change sensing
	None
DA	Differential pressure display, visual
DN	Filter contamination indicator, M8 plug, NPN, 3-pin
DNI	Filter contamination indicator, M12 plug, NPN, 4-pin, analogue output 4...20 mA
DP	Filter contamination indicator, M8 plug, PNP, 3-pin
DPI	Filter contamination indicator, M12 plug, PNP, 4-pin, analogue output 4...20 mA
010	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
011	EU certification
	None
EX4	II 2GD
012	UL certification
	None
UL1	cULus ordinary location for Canada and USA
013	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-EE- - , MS-6-EE- -

001	Series
MS	MS series
MS	MS-series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
EE	On/off valve, electric
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Supply voltage
10V24	24 V DC, 10 bar, connection pattern to EN 175301
10V24C	24 V DC, 10 bar (connection pattern to EN 175301) without manual override
10V24D	24 V DC, 10 bar, M12 (connection pattern to EN 60947-5-2) without manual override
10V24F	24 V DC, 10 bar, M12 (connection pattern to EN 60947-5-2). Manual override on the pilot actuator non-detenting, internally detenting
10V24P	24 V DC, 10 bar, M12 plug socket adapter (connection pattern to EN 60947-5-2)
V110	110 V AC (connection pattern to EN 175301)
V230	230 V AC (connection pattern to EN 175301)
V24	24 V DC (connection pattern to EN 175301)
V24P	24 V DC plug (connection pattern M12 to DESINA)
006	Silencer

007	Pressure gauge alternatives
	None
S	Silencer
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AG	MS pressure gauge
RG	Integrated pressure gauge, red/green scale
008	Alternative pressure gauge scale
	MS pressure gauge
MPA	MPa
PSI	psi
009	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
010	EU certification
	None
EX2	II 3GD
011	UL certification
	None
UL1	cULus ordinary location for Canada and USA
012	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-EM1- , MS-6-EM1-

001	Series
MS	MS series
MS	MS-series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
EM1	On/off valve, manual
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Silencer
	None
S	Silencer
006	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge

007	Alternative pressure gauge scale
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AG	MS pressure gauge
RG	Integrated pressure gauge, red/green scale
	MS pressure gauge
MPA	MPa
PSI	psi
008	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left
012	Special material properties
	None
F1A	Recommended for production facilities for the manufacture of lithium-ion batteries

Typecode for Catalog Number MS, MS-9-SV- -C- -

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
SV	Soft-start/quick exhaust valve
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
N3/4	Female thread 3/4 NPT
N1	Female thread 1 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
NG	Module without connecting thread, without sub-base (inch)
005	Performance Level
C	Category 1, 1-channel to ISO 13849-1
006	Supply voltage
10V24P	24 V DC, 10 bar, M12 plug socket adapter (connection pattern to EN 60947-5-2)
V110	110 V AC (connection pattern to EN 175301)
V230	230 V AC (connection pattern to EN 175301)
V24	24 V DC (connection pattern to EN 175301)
007	Silencer

008	Pressure gauge alternatives
	None
S	Silencer
	None
AG	MS pressure gauge
VS	Cover plate
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
RG	Integrated pressure gauge, red/green scale
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
009	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
BAR	bar
MPA	MPa
010	Type of mounting
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
011	Tamper protection
	None
MK	Ful
MH	Without manual override
012	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS- -LFR- -D6- -P- - -B

001	Series
MS	MS series
002	Size
2	Grid dimension 25 mm
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
LFR	Filter regulator
004	Pneumatic connection
M5	Female thread M5
QS6	Push-in connector 6 mm
1/4	Female thread G1/4
1/2	Female thread G1/2
005	Pressure regulation range
D6	0.3 ... 7 bar
006	Filter design
C	5 µm
E	40 µm
007	Bowl type

008	Condensate drain
P	Polymer
M	Manually
VC	Fully automatic, normally closed
009	Pressure gauge alternatives
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AG	MS pressure gauge
AR	With pressure gauge
010	Alternative pressure gauge scale
	MS pressure gauge
BAR	bar
MPA	MPa
011	Special material properties
	None
F1A	Recommended for production plants for manufacturing lithi- um-ion batteries, F1A
012	Version
B	Second generation

Typecode for Catalog Number MS, MS-4-DE- - , MS-6-DE- -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
DE	Soft-start valve, electric
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
005	Supply voltage
10V24	24 V DC, 10 bar, connection pattern to EN 175301
10V24P	24 V DC, 10 bar, M12 plug socket adapter (connection pattern to EN 60947-5-2)
V110	110 V AC (connection pattern to EN 175301)
V230	230 V AC (connection pattern to EN 175301)
V24	24 V DC (connection pattern to EN 175301)
006	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge

007	Alternative pressure gauge scale
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AG	MS pressure gauge
RG	Integrated pressure gauge, red/green scale
	MS pressure gauge
MPA	MPa
PSI	psi
008	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
009	EU certification
	None
EX2	II 3GD to EU Explosion Protection Directive (ATEX)
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

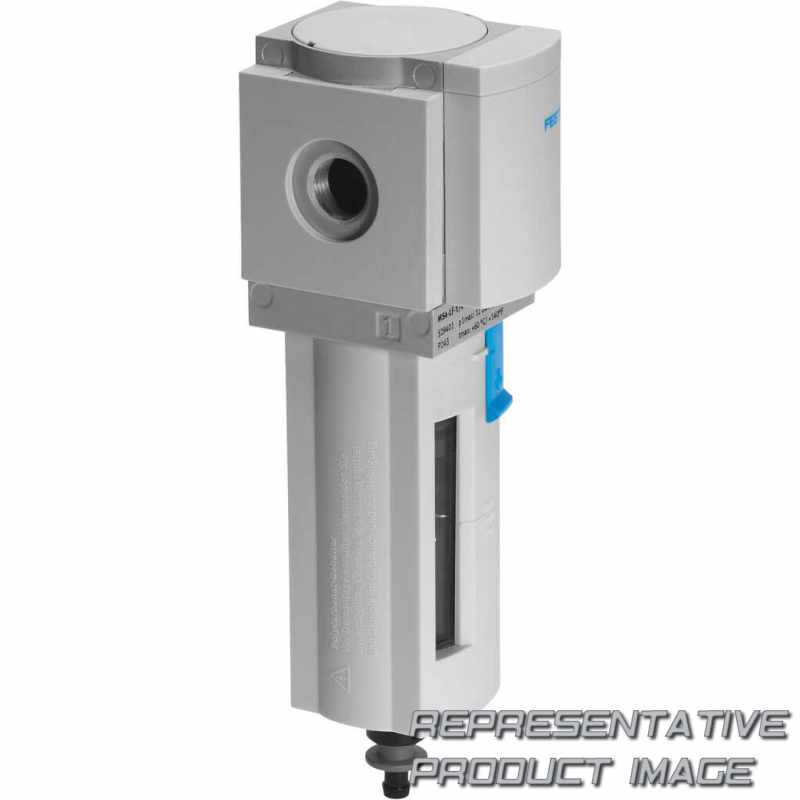

Typecode for Catalog Number MS, MS-4-LF- - - -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
003	Function
LF	Filter
004	Pneumatic connection
1/8	Female thread G1/8
1/4	Female thread G1/4
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
005	Grade of filtration [μm]
C	5 µm
E	40 µm
006	Bowl type
R	Plastic tray with plastic basket
U	Aluminium

007	Condensate drain
M	Manually
H	Semi-automatic
V	Fully automatic, normally open
VC	Fully automatic, normally closed
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-LFM- - - -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
003	Function
LFM	Fine and micro filters
004	Pneumatic connection
1/8	Female thread G1/8
1/4	Female thread G1/4
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
005	Filter design
A	0.01 µm
B	1 µm
006	Bowl type
R	Plastic tray with plastic basket
U	Aluminium

007	Condensate drain
M	Manually
H	Semi-automatic
V	Fully automatic, normally open
VC	Fully automatic, normally closed
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

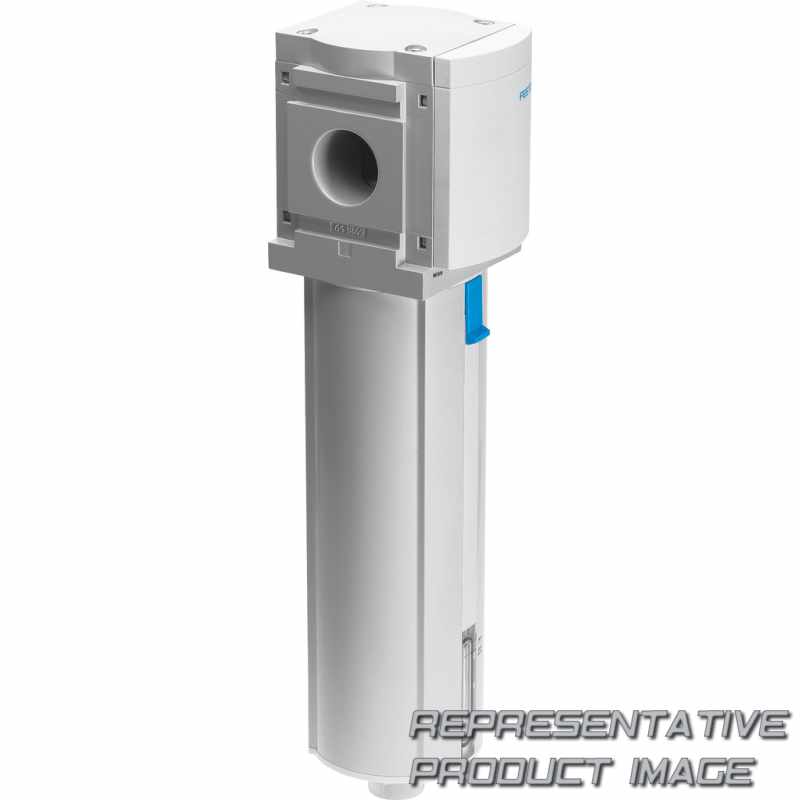

Typecode for Catalog Number MS, MS-6-LF- - - -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
LF	Filter
004	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Grade of filtration [μm]
C	5 µm
E	40 µm
006	Bowl type

007	Condensate drain
R	Plastic tray with plastic basket
U	Aluminium
M	Manually
H	Semi-automatic
V	Fully automatic, normally open
VC	Fully automatic, normally closed
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-6-LFX- -

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Function
LFX	Activated carbon filter
004	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Bowl type
R	Plastic tray with plastic basket
U	Aluminium

006	Flow rate
	Standard
HF	High flow rate
007	Range of applications
	None
HP	Suitable for sealing air and purge air
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-6--LWS- -U-

001	Series
MS	MS series
002	Size
6	Grid dimension 62 mm
003	Thread type
	G thread
004	Function
LWS	Water separator
005	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base NPT1/4
AQP	Sub-base NPT3/8
AQR	Sub-base NPT1/2
AQS	Sub-base NPT3/4
006	Bowl type

007	Condensate drain
U	Aluminium
V	Automatic
E2	External fully automatic condensate drain, electric, 110 V AC, termi- nals
E3	External fully automatic condensate drain, electric, 230 V AC, termi- nals
E4	External fully automatic condensate drain, electric, 24 V DC, terminals
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-EM-

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
EM	On/off valve, manual
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
N3/4	Female thread 3/4 NPT
N1	Female thread 1 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
NG	Module without connecting thread, without sub-base (inch)
005	Silencer
	None
S	Silencer
006	Pressure gauge alternatives
	None
AG	MS pressure gauge

007	Alternative pressure gauge scale
VS	Cover plate
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
RG	Integrated pressure gauge, red/green scale
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
	MS pressure gauge
PSI	psi
BAR	bar
MPA	MPa
008	Valve function
	Standard
2	2/2-way valve
009	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-FRM-

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
FRM	Branching module
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
N3/4	3/4 NPT
N1	1 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
NG	Module without connecting thread, without sub-base (inch)
005	Pressure gauge alternatives
AG	MS pressure gauge
VS	Cover plate
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
RG	Integrated pressure gauge, red/green scale
AD7	Pressure sensor with switching display, M8 plug, threshold value comparator, PNP, N/O

006	Alternative pressure gauge scale
AD8	Pressure sensor with switching display, M8 plug, threshold value comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window comparator,
	PNP, N/O
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
	MS pressure gauge
PSI	psi
MPA	MPa
BAR	bar
007	Pressure switch
	None
X	Pressure switch PEV with display, plug socket, EN 175301, type A, cube
Y	Pressure switch PEV without display, plug socket, EN 175301, type A, cube
M12	Pressure switch PEV without display, plug socket, round, M12, 4-pin
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WPB	Mounting bracket for large wall gap
009	EU certification
	None
EX4	II 2GD
010	UL certification
	None
UL1	cULus ordinary location for Canada and USA
011	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-EE- -

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
EE	On/off valve, electric
004	Pneumatic connection
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Supply voltage
V110	110 V AC (connection pattern to EN 175301)
V230	230 V AC (connection pattern to EN 175301)
V24	24 V DC (connection pattern to EN 175301)
V24P	24 V DC plug (connection pattern M12 to DESINA)
006	Silencer

007	Pressure gauge alternatives
	None
S	Silencer
	None
AG	MS pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
008	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
MPA	MPa
009	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-LFM- - -U-

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
LFM	Fine and micro fi lters
004	Pneumatic connection
AGF	Sub-base G1
AGG	Sub-base G1 1/4
AGH	Sub-base G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Grade of filtration [μm]
A	0.01 µm
B	1 µm
006	Bowl type
U	Aluminium

007	Condensate drain
M	Manually
V	Fully automatic, normally open
VC	Fully automatic, normally closed
E2	External fully automatic condensate drain, electric, 110 V AC, terminals
E3	External fully automatic condensate drain, electric, 230 V AC, terminals
E4	External fully automatic condensate drain, electric, 24 V DC, ter- minals
008	Filter change sensing
	None
DA	Differential pressure display, visual
009	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-LR- -

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
LR	Pressure regulator
004	Pneumatic connection
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Pressure regulation range
D6	0.3 ... 7 bar
D7	0.5 ... 12 bar
D8	0.5 ... 16 bar
PO	Max. 16 bar, pneumatically actuated (pressure range deter- mined by pilot regulator)
PE6	0.15 ... 6 bar, solenoid actuated (pilot control by proportion- al-pressure regulator)

006	Pressure gauge alternatives
	None
VS	Cover plate
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
007	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
MPA	MPa
008	Rotary knob alternative
	None
LD	Long rotary knob
009	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-DL- , MS-6-DL-

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
DL	Soft-start valve, pneumatic
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
005	Pressure gauge alternatives
	None
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
A8M	Adapter for EN pressure gauge 1/8, with precision pressure gauge
AD10	Pressure sensor with operational status indicator, M8 plug, window comparator, PNP, N/C
AD11	Pressure sensor with LCD display, M12 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD12	Pressure sensor with LCD display, M8 plug, 4-pin, IO-Link®, PNP, NPN, 0...10 V, 1...5 V, 4...20 mA
AD7	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/O

006	Alternative pressure gauge scale
AD8	Pressure sensor with switching display, M8 plug, threshold val- ue comparator, PNP, N/C
AD9	Pressure sensor with switching display, M8 plug, window com- parator, PNP, N/O
AG	MS pressure gauge
RG	Integrated pressure gauge, red/green scale
	MS pressure gauge
MPA	MPa
PSI	psi
007	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), con- necting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
008	EU certification
	None
EX2	II 3GD to EU Explosion Protection Directive (ATEX)
EX4	II 2GD
009	UL certification
	None
UL1	cULus ordinary location for Canada and USA
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-LDM1- -

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
003	Function
LDM1	Membrane air dryer
004	Pneumatic connection
1/8	Female thread G1/8
1/4	Female thread G1/4
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
005	Flow cartridge
P05	50 l/min
P10	100 l/min
006	Purge air
	Unducted
PAC	Ducted
007	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
008	EU certification
	None

009	UL certification
EX4	II 2GD
	None
UL1	cULus ordinary location for Canada and USA
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left
	MS6-LDM1
001	Series
MS6	MS-series, size 6
002	Function
LDM1	Membrane air dryer
003	Pneumatic connection
1/4	Female thread G1/4
3/8	Female thread G3/8
1/2	Female thread G1/2
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
004	Flow cartridge
P20	200 l/min
P30	300 l/min
P40	400 l/min

Typecode for Catalog Number MS, MS-9-LF- - -U-

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
LF	Filter
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Sub-base G1 1/4
AGH	Sub-base G1 1/2
N3/4	Female thread N3/4
N1	Female thread N1
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
005	Grade of filtration [μm]
C	5 µm

006	Bowl type
E	40 µm
U	Aluminium
007	Condensate drain
M	Manually
H	Semi-automatic
V	Fully automatic, normally open
VC	Fully automatic, normally closed
E2	External fully automatic condensate drain, electric, 110 V AC, terminals
E3	External fully automatic condensate drain, electric, 230 V AC, terminals
E4	External fully automatic condensate drain, electric, 24 V DC, ter- minals
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
009	UL certification
	None
UL1	cULus ordinary location for Canada and USA
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-LWS- -U-

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
LWS	Water separator
004	Pneumatic connection
3/4	Female thread G3/4
1	Female thread G1
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
N3/4	NPT3/4
N1	NPT1
AQR	Sub-base NPT1/2
AQS	Sub-base NPT3/4
AQT	Sub-base NPT1
AQU	Sub-base NPT11/4
AQV	Sub-base NPT11/2
G	Module without connecting thread, without sub-base

005	Bowl type
U	Aluminium
006	Condensate drain
V	Automatic
E2	External fully automatic condensate drain, electric, 110 V AC, termi- nals
E3	External fully automatic condensate drain, electric, 230 V AC, termi- nals
E4	External fully automatic condensate drain, electric, 24 V DC, terminals
007	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
WPB	Mounting bracket for large wall gap
008	EU certification
	None
EX4	II 2GD
009	UL certification
	None
UL1	cULus ordinary location for Canada and USA
010	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-DE- -

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
DE	Soft-start valve, electric
004	Pneumatic connection
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Supply voltage
V110	110 V AC (connection pattern to EN 175301)
V230	230 V AC (connection pattern to EN 175301)
V24	24 V DC (connection pattern to EN 175301)

006	Pressure gauge alternatives
V24P	24 V DC plug (connection pattern M12 to DESINA)
	None
AG	MS pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
007	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
MPA	MPa
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
009	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-DL-

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
DL	Soft-start valve, pneumatic
004	Pneumatic connection
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Pressure gauge alternatives
	None
AG	MS pressure gauge

006	Alternative pressure gauge scale
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
	MS pressure gauge
PSI	psi
MPA	MPa
007	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
008	UL certification
	None
UL1	cULus ordinary location for Canada and USA
009	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-EM-

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
EM	On/off valve, manual
004	Pneumatic connection
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGH	Connecting plate G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Silencer
	None
S	Silencer

006	Pressure gauge alternatives
	None
AG	MS pressure gauge
A4	Adapter for EN pressure gauge 1/4, without pressure gauge
007	Alternative pressure gauge scale
	MS pressure gauge
PSI	psi
MPA	MPa
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
009	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-LF- - -U-

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
LF	Filter
004	Pneumatic connection
AGF	Sub-base G1
AGG	Sub-base G1 1/4
AGH	Sub-base G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
005	Grade of filtration [μm]
C	5 µm
E	40 µm
006	Bowl type

007	Condensate drain
U	Aluminium
M	Manually
V	Fully automatic, normally open
VC	Fully automatic, normally closed
E2	External fully automatic condensate drain, electric, 110 V AC, terminals
E3	External fully automatic condensate drain, electric, 230 V AC, terminals
E4	External fully automatic condensate drain, electric, 24 V DC, ter- minals
008	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
009	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-4-LFX- - , MS-4-LOE- - , MS-6-LOE- -

001	Series
MS	MS series
MS	MS-series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
LFX	Activated carbon filter
LOE	Compressed air lubricator
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
1/8	Female thread G1/8
3/8	Female thread G3/8
AGA	Sub-base G1/8
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQK	Sub-base 1/8 NPT
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
005	Bowl type
R	Plastic tray with plastic basket
U	Aluminium
U	Metal bowl
006	Type of mounting
	Without mounting bracket
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required
WB	Mounting centrally at rear (wall mounting top and bottom), connecting plates not required

007	EU certification
WBM	Mounting centrally at rear (wall mounting top), connecting plates not required
WP	Mounting bracket basic design
WPM	Mounting bracket for hooking in service unit components
	None
EX4	II 2GD
008	UL certification
	None
UL1	cULus ordinary location for Canada and USA
009	Flow direction
	Flow direction from left to right
	MS6-LOE
001	Series
002	Size
003	Function
004	Pneumatic connection
1/2	Female thread G1/2
1/4	Female thread G1/4
3/8	Female thread G3/8
6	Grid dimension 62 mm
AGB	Sub-base G1/4
AGC	Sub-base G3/8
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AQN	Sub-base 1/4 NPT
AQP	Sub-base 3/8 NPT
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
LOE	Compressed air lubricator
MS	MS series
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS- -LR- -D6- -B

001	Series
MS	MS series
002	Size
2	Grid dimension 25 mm
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
LR	Pressure regulator
004	Pneumatic connection
M5	Female thread M5
QS6	Push-in connector 6 mm
1/4	Female thread G1/4
1/2	Female thread G1/2
005	Pressure regulation range
D6	0.3 ... 7 bar

006	Pressure gauge alternatives
A8	Adapter for EN pressure gauge 1/8, without pressure gauge
AG	MS pressure gauge
AR	With pressure gauge
007	Alternative pressure gauge scale
	MS pressure gauge
BAR	bar
MPA	MPa
008	Special material properties
	None
F1A	Recommended for production plants for manufacturing lithi- um-ion batteries, F1A
009	Version
B	Second generation

Typecode for Catalog Number MS, MS-12-LWS- -U-

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
LWS	Water separator
004	Pneumatic connection
AGF	Sub-base G1
AGG	Sub-base G11/4
AGH	Sub-base G11/2
AGI	Sub-base G2
AQT	Sub-base NPT1
AQU	Sub-base NPT11/4
AQV	Sub-base NPT11/2
AQW	Sub-base NPT2

005	Bowl type
G	Module without connecting thread, without sub-base
U	Aluminium
006	Condensate drain
V	Automatic
E2	External fully automatic condensate drain, electric, 110 V AC, termi- nals
E3	External fully automatic condensate drain, electric, 230 V AC, termi- nals
E4	External fully automatic condensate drain, electric, 24 V DC, terminals
007	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
008	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-9-LFX- -U , MS-9-LOE- -U

001	Series
MS	MS series
002	Size
9	Grid dimension 90 mm
003	Function
LFX	Activated carbon fi lter
LOE	Compressed air lubricator
004	Pneumatic connection
1	Female thread G1
3/4	Female thread G3/4
AGD	Sub-base G1/2
AGE	Sub-base G3/4
AGF	Sub-base G1
AGG	Connecting plate G1 1/4
AGG	Sub-base G1 1/4
AGH	Connecting plate G1 1/2
AGH	Sub-base G1 1/2
AQR	Sub-base 1/2 NPT
AQS	Sub-base 3/4 NPT
AQT	Sub-base 1 NPT

005	Bowl type
AQU	Sub-base 1 1/4 NPT
AQV	Sub-base 1 1/2 NPT
G	Module without connecting thread, without sub-base
N1	Female thread 1 NPT
N3/4	Female thread 3/4 NPT
U	Aluminium
U	Metal bowl
006	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
WPB	Mounting bracket for large wall gap
WPM	Mounting bracket for hooking in service unit components
007	UL certification
	None
UL1	cULus ordinary location for Canada and USA
008	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS-12-LFX- -U , MS-12-LOE- -U

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
LFX	Activated carbon fi lter
LOE	Compressed air lubricator
004	Pneumatic connection
AGF	Sub-base G1
AGG	Sub-base G1 1/4
AGH	Sub-base G1 1/2
AGI	Sub-base G2

005	Bowl type
G	Module without connecting thread, without sub-base
U	Aluminium
U	Metal bowl
006	Type of mounting
	Without mounting bracket
WP	Mounting bracket basic design
007	Flow direction
	Flow direction from left to right
Z	Flow direction from right to left

Typecode for Catalog Number MS, MS- -EDE- -V24-F1A-B , MS- -EE- -V24-F1A-B

001	Series
MS	MS series
002	Size
4	Grid dimension 40 mm
6	Grid dimension 62 mm
003	Function
EDE	Soft-start valve, electrically actuated
EE	On/off valve, electric
004	Pneumatic connection

005	Supply voltage
1/2	Female thread G1/2
1/4	Female thread G1/4
V24	24 V DC (connection pattern to EN 175301)
006	Special material properties
F1A	Recommended for production plants for manufacturing lithi- um-ion batteries, F1A
007	Version
B	Second generation

Typecode for Catalog Number MS, MS-12-FRM-

001	Series
MS	MS series
002	Size
12	Grid dimension 124 mm
003	Function
FRM	Branching module
004	Pneumatic connection
AGF	Sub-base G1

005	Type of mounting
AGG	Sub-base G1 1/4
AGH	Sub-base G1 1/2
AGI	Sub-base G2
G	Module without connecting thread, without sub-base
	Without mounting bracket
WP	Mounting bracket basic design

Products

Showing 13 product to 24 of a total of 1306

Catalog Number	Part number	Bowl type
MS12-EM-G-Z	607265
MS12-FRM-G	541681
MS12-LF-AGI-C-U-V-Z	579054	Aluminium
MS12-LF-AGI-E-U-M	535023	Aluminium
MS12-LF-AGI-E-U-M-Z	535023	Aluminium
MS12-LF-G-C-U-V-Z	607264	Aluminium
MS12-LF-G-CUV	537152	Aluminium
MS12-LF-G-CUV-HF-Z-SA	1809181	Aluminium
MS12-LF-G-EUV	537151	Aluminium
MS12-LFM-AGF-B-U-V	535042	Aluminium
MS12-LFM-G-A-U-V-DA	563381	Aluminium
MS12-LFM-G-AUV	537154	Aluminium

FESTO MS

1306 Products

Products

about SP SpareParts

Stay updated
