FESTO DSBF
399 Products

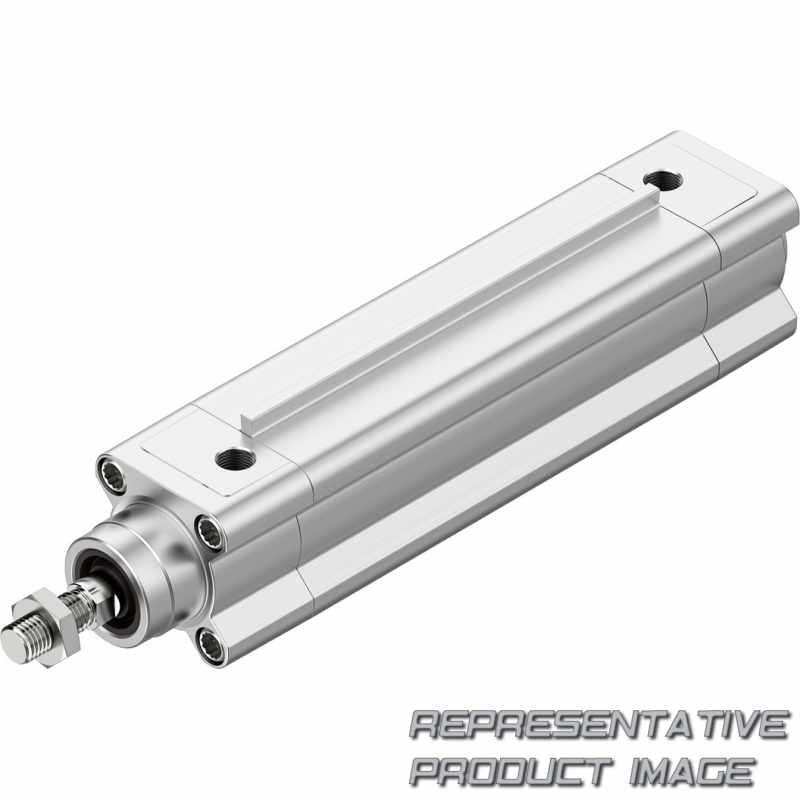

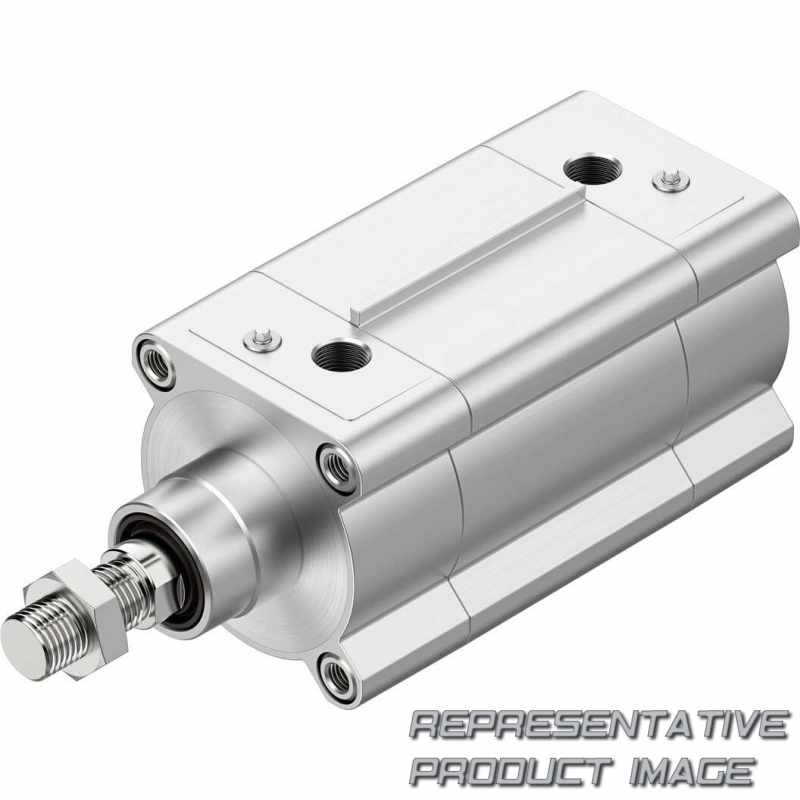

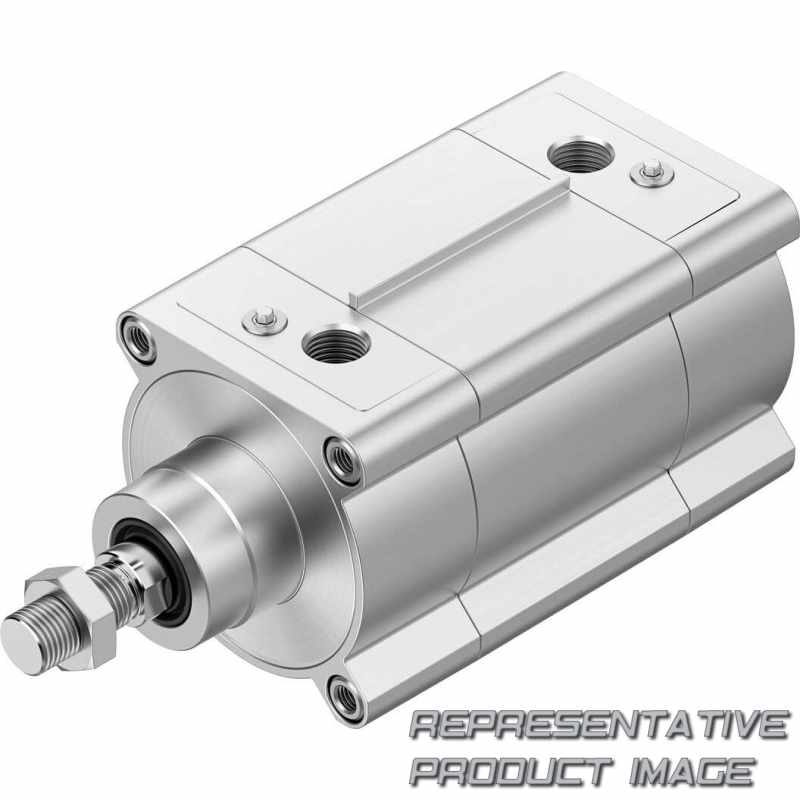

Discover all the available configurations for the FESTO DSBF product series Standards-based cylinder, double-acting, based on ISO 15552, clean design. Find the right product by filtering with Product version, Running characteristics, Piston diameter [mm], Stroke [mm], Piston rod type, Cushioning, Position sensing, Standard, Temperature range, Scraper variant, 014 and Sensor mounting, external.
DSBF Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| DSBF | DSBF- | Standards-based cylinder, double-acting, based on ISO 15552, clean design |
Typecode for Catalog Number DSBF,
DSBF-
| 001 | Series |
|---|---|
| DSBF | Standards-based cylinder, double-acting, based on ISO 15552, clean design |
| 002 | Product version |
| C | Easy-to-clean design |
| Standard | |
| 003 | Running characteristics |
| Standard | |
| L | Low friction |
| U | Uniform, slow movement |
| 004 | Piston diameter [mm] |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | 80 |
| 100 | 100 |
| 125 | 125 |
| 005 | Stroke [mm] |
| ... | 25 ... 500 |
| None | |
| 006 | Piston rod type |
| At one end | |
| T | Through piston rod |
| 007 | Piston rod thread type |
| Male thread | |
| F | Female thread |
| 008 | Cushioning |
| Undefined | |
| P | Elastic cushioning rings/plates on both sides |
| PPV | Pneumatic cushioning, adjustable at both ends |
| PPS | Pneumatic cushioning, self-adjusting at both ends |
| P/PPS | Elastic cushioning rings/plates on both sides or Pneumatic cushioning, self-adjusting at both ends |
| 009 | Position sensing |
|---|---|
| A | For proximity sensor |
| None | |
| 010 | Standard |
| Not according to standard | |
| N3 | Conforms to ISO 15552 |
| 011 | Temperature range |
| Standard | |
| T1 | Heat-resistant seals max. 120°C |
| T3 | -40 ... +80°C |
| T4 | 0 ... +150°C |
| 012 | Scraper variant |
| None | |
| A1 | Increased chemical resistance |
| A2 | Hard scraper |
| A3 | For unlubricated operation |
| 013 | EU certification |
| None | |
| EX4 | II 2GD |
| 014 | 014 |
| None | |
| ...E | 1...500 mm |
| 015 | Piston rod thread extension |
| None | |
| ...L | 1...70 mm |
| 016 | Sensor mounting, external |
| None | |
| R | Mounting rail for sensors |
