DGTZ Festo

FESTO DGTZ

91 Products

Discover all the available configurations for the FESTO DGTZ product series Twin cylinder. Find the right product by filtering with Piston diameter [mm], Piston rod design and Piston rod type.

DGTZ Type Codes

Series	Catalog Number Format	Description
DGTZ	DGTZ-GF- - -P-A	Twin cylinder

Typecode for Catalog Number DGTZ, DGTZ-GF- - -P-A

001	Series
DGTZ	Twin cylinder
002	Guide
GF	Plain bearing
003	Piston diameter [mm]
6	6
10	10
16	16
20	20
25	25
32	32
004	Stroke [mm]
10	10
20	20
30	30
40	40
50	50
60	60

005	Stroke [mm]
70	70
80	80
90	90
100	100
...	51 ... 200
	None
006	Piston rod design
	One end plate

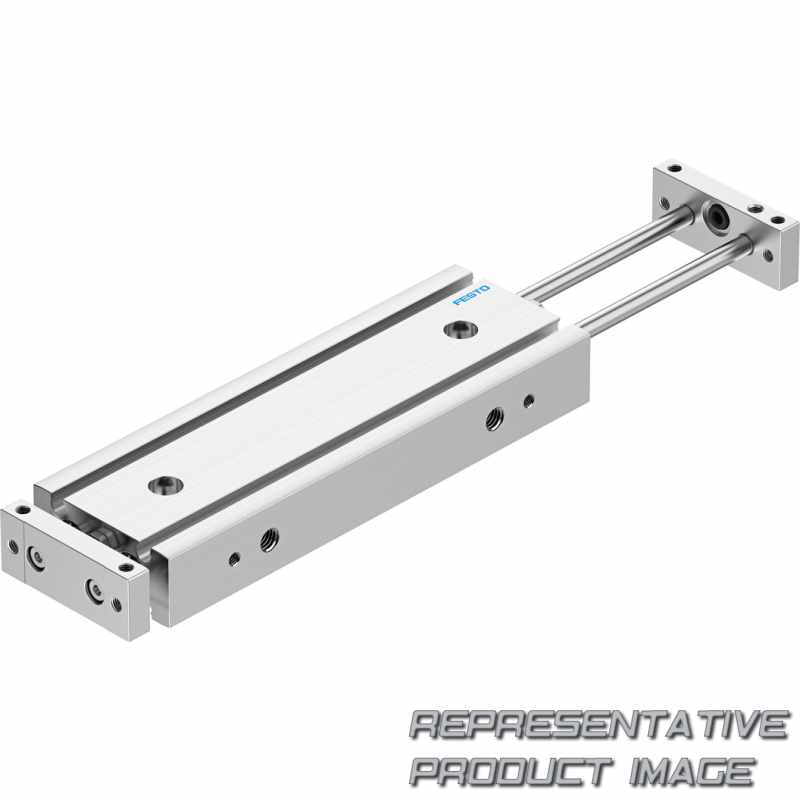

J	Two end plates
007	Piston rod type
	At one end
T	Through piston rod
008	Cushioning
P	Elastic cushioning rings/plates on both sides
009	Position sensing
A	For proximity sensor

Products

Showing 13 product to 24 of a total of 91

Catalog Number	Part number	Piston diameter [mm]	Piston rod design
DGTZ-GF-10-20-J-T-P-A	8103498	10	Two end plates
DGTZ-GF-10-20-P-A	8100555	10	One end plate
DGTZ-GF-10-30-J-T-P-A	8103499	10	Two end plates
DGTZ-GF-10-30-P-A	8100556	10	One end plate
DGTZ-GF-10-40-J-T-P-A	8103500	10	Two end plates
DGTZ-GF-10-40-P-A	8100557	10	One end plate
DGTZ-GF-10-50-J-T-P-A	8103501	10	Two end plates
DGTZ-GF-10-50-P-A	8100558	10	One end plate
DGTZ-GF-10-60-P-A	8100559	10	One end plate
DGTZ-GF-10-70-P-A	8100560	10	One end plate
DGTZ-GF-10-80-P-A	8100561	10	One end plate
DGTZ-GF-16-10-J-T-P-A	8103427	16	Two end plates
