SMC AF
148 Products
Discover all the available configurations for the SMC AF product series Mist Separator AFM and Micro Mist Separator AFD, Air Filter AF. Find the right product by filtering with Series, Type, Size, Thread type, Port Size, Mounting, Float type auto drain, Bowl, Filter regulator drain port, Flow direction, Pressure unit and Weight.
AF Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| AF | AF- - - -A | Mist Separator AFM and Micro Mist Separator AFD |
| AF | AF- - -A | Air Filter AF |
Typecode for Catalog Number AF,
AF- - - -A

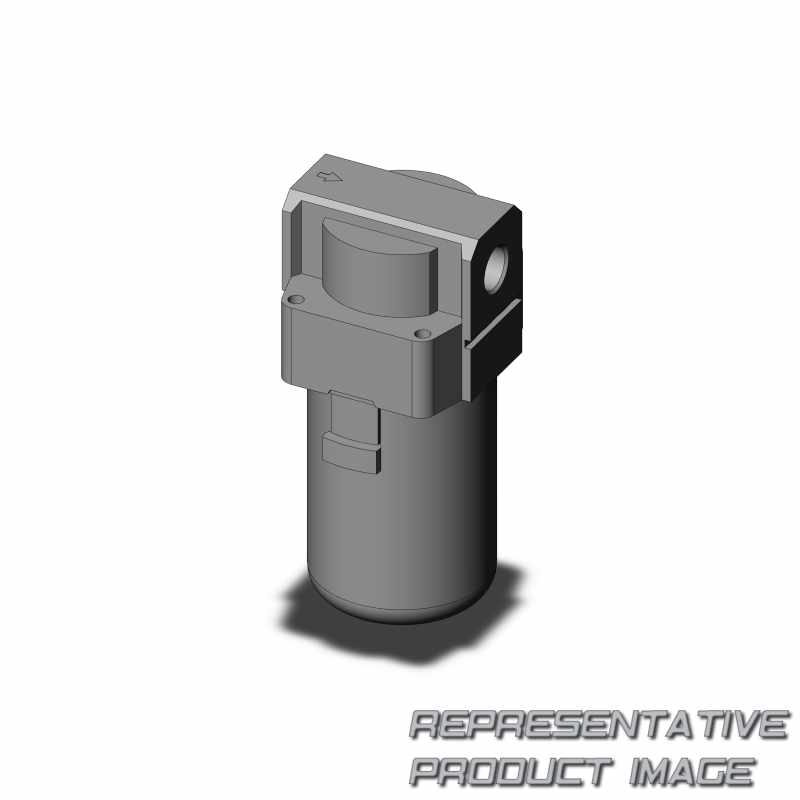

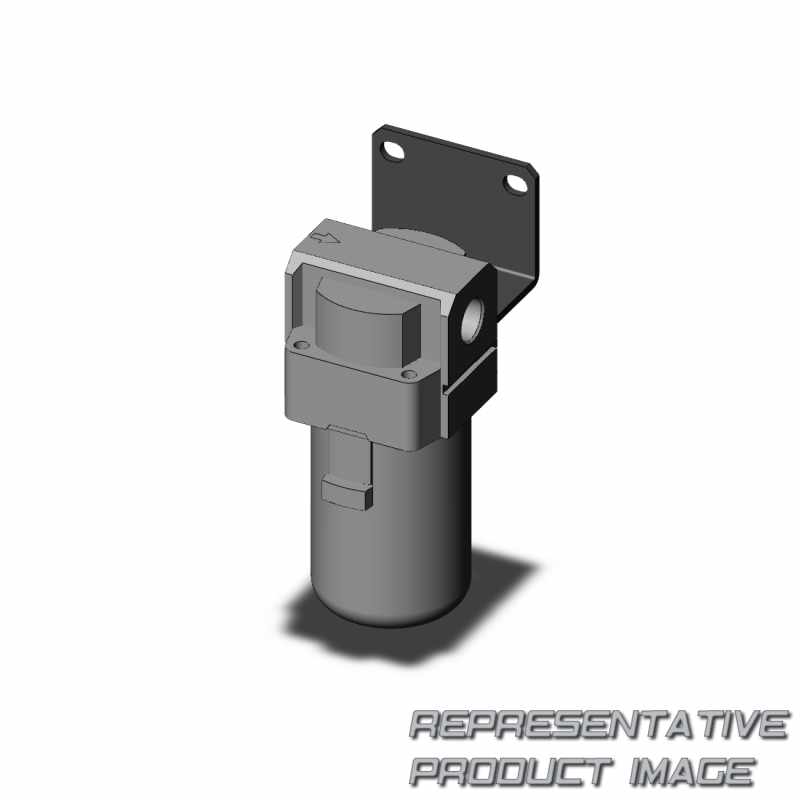

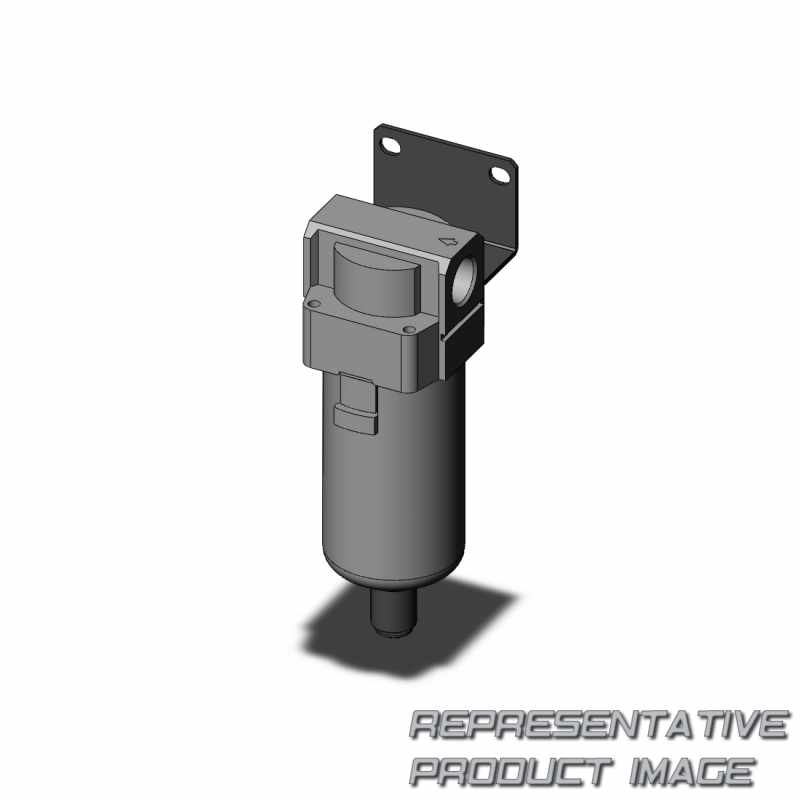

| 001 | Series |
|---|---|
| AF | Mist Separator AFM and Micro Mist Separator AFD |
| 002 | Type |
| M | M |
| D | D |
| 003 | Size |
| 20 | 20 |
| 30 | 30 |
| 40 | 40 |
| 004 | Thread type |
| F | G |
| N | NPT |
| Rc | |
| 005 | Port Size |
| 01 | 1/8 |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 006 | Mounting |
| B | With bracket |
| Without mounting option | |
| 007 | Float type auto drain |
|---|---|
| C | N.C (Normal close) Drain port is closed when pressure is not applied. |
| D | N.O (Normal open) Drain port is open when pressure is not applied. |
| Without auto drain | |
| 008 | Bowl |
| C | With bowl guard |
| Polycarbonate bowl | |
| 009 | Filter regulator drain port |
| With drain cock | |
| J | Drain guide 1/8 or Drain guide 1/4 |
| W | Drain cock with barb fitting (for o6 x o4 nylon tube) |
| 010 | Flow direction |
| R | Folw direction: Right to left |
| Folw direction: Left to right | |
| 011 | Pressure unit |
| Z | Name plate, caution plate for bowl, and pressure gauge in imperial units |
| Name plate and pressure gauge in imperial units | |
| 012 | Type 2 |
| A | A |
Typecode for Catalog Number AF,
AF- - -A

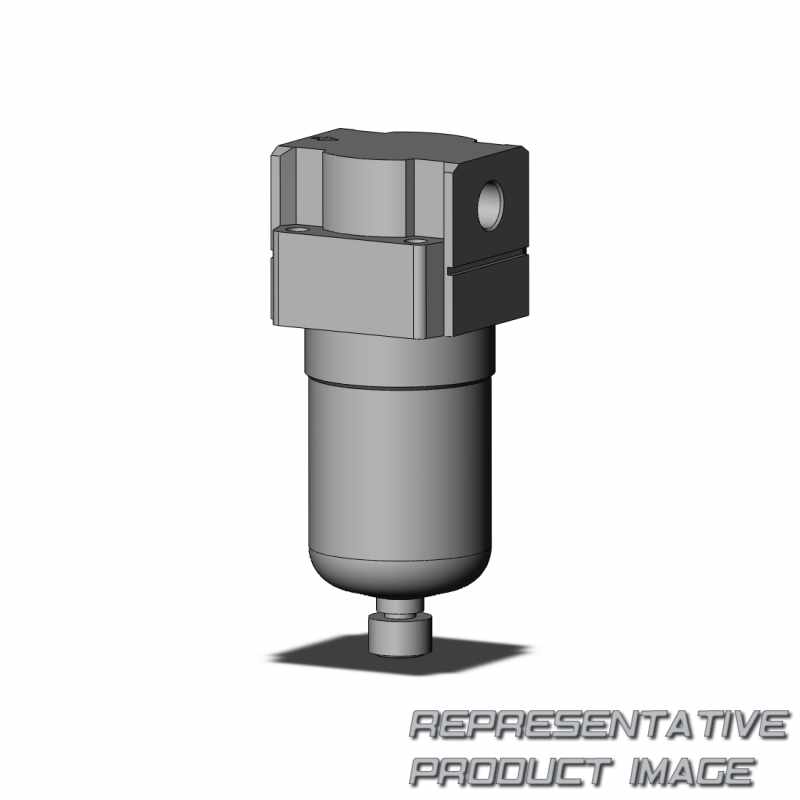

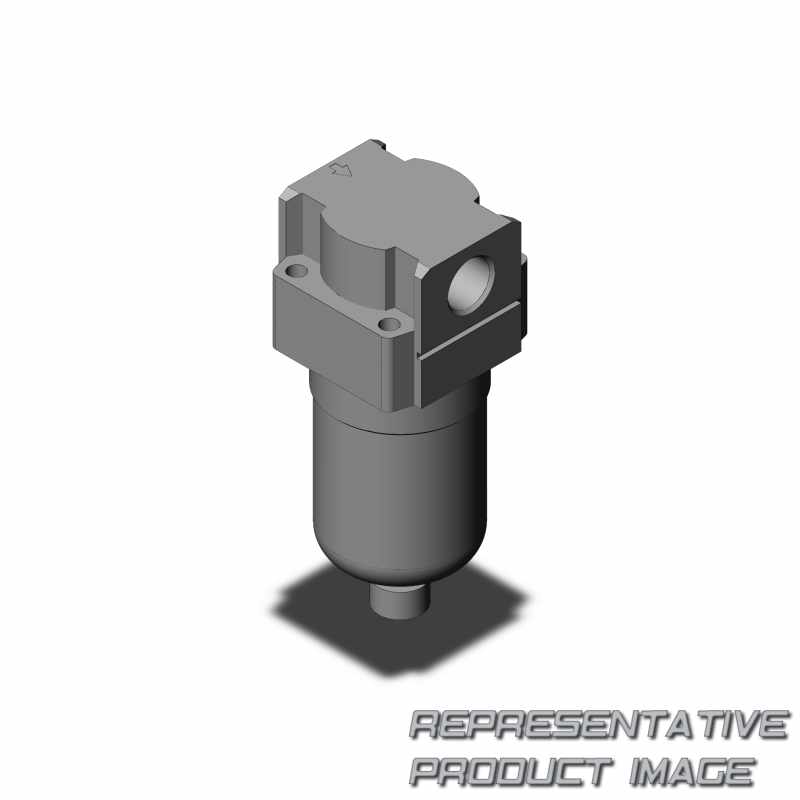

| 001 | Series |
|---|---|
| AF | Air Filter AF |
| 002 | Size |
| 20 | 20 |
| 30 | 30 |
| 40 | 40 |
| 003 | Thread type |
| F | G |
| N | NPT |
| Rc | |
| 004 | Port Size |
| 01 | 1/8 |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 005 | Mounting |
| B | With bracket |
| Without mounting option | |
| 006 | Float type auto drain |
| C | N.C (Normal close) Drain port is closed when pressure is not applied. |
| D | N.O (Normal open) Drain port is open when pressure is not applied. |
| Without auto drain | |
| 007 | Bowl |
|---|---|
| C | With bowl guard |
| Polycarbonate bowl | |
| 008 | Filter regulator drain port |
| With drain cock | |
| J | Drain guide 1/8 or Drain guide 1/4 |
| W | Drain cock with barb fitting (for o6 x o4 nylon tube) |
| 009 | Flow direction |
| R | Folw direction: Right to left |
| Folw direction: Left to right | |
| 010 | Pressure unit |
| Z | Name plate, caution plate for bowl, and pressure gauge in imperial units |
| Name plate and pressure gauge in imperial units | |
| 011 | Type 2 |
| A | A |
